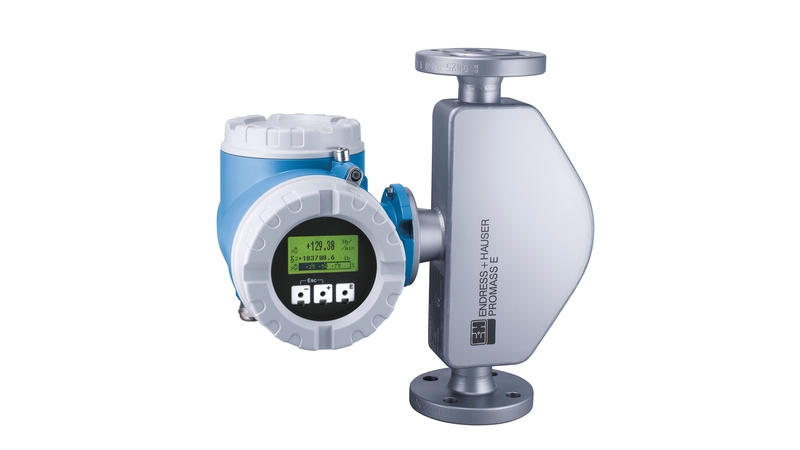

Endress+Hauser Promass 83E
Endress+Hauser 83E - Flow measurement - Ambient temperature: -20...+65°C (-4...+140°F); Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure; + output: 4...20mA Pulse/Frequency (10KHz, active/passive) Relays/Status.
This listing covers the Endress+Hauser 83E, a part number in the Flow measurement category. The manufacturer's published data for this part number specifies Ambient temperature: -20...+65°C (-4...+140°F) and Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure.
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Published specifications for this part include + output: 4...20mA Pulse/Frequency (10KHz, active/passive) Relays/Status; Power Supply: DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz); Measuring range: 0 to 180 000 kg/h (0 to 6600 lb/min); Measuring principle: Coriolis; Nominal diameter range: DN 8 to 80 (⅜ to 3"); Process pressure: PN 40...100 Cl150...600 JIS 10...63K; Product safety: CE, C-tick, EAC marking; Hazardous area approvals: ATEX, IECEx, FM, CSA, NEPSI; Material certificates: 3.1 material; Process temperature: -40...+125°C (-40...+257°F); Wetted materials: Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L); Max. process pressure: PN 100, Class 600, 63K. See the Specifications tab on this page for the full technical table.
| + output | 4...20mA Pulse/Frequency (10KHz, active/passive) Relays/Status |
|---|---|
| Ambient temperature | -20...+65°C (-4...+140°F) |
| Ambient temperature range | Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F) |
| Certificates / Approvals | ATEX FM CSA |
| Characteristic / Application | An alternative to conventional volumetric flowmeters, this flowmeter has a low "cost of ownership". |
| Degree of protection | IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure |
| Digital communication | HART, PROFIBUS PA/DP, FOUNDATION Fieldbus, Modbus RS485, EtherNet/IP |
| Display/Operation | 4‐line backlit display with touch control (operation from outside) Configuration via local display and operating tools possible |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, FM, CSA, NEPSI |
| Hygienic approvals and certificates | 3-A |
| Inputs | 2 modular inputs: Status 0‐20 mA (active)/4‐20 mA (active/passive) |
| Marine approvals and certificates | Marine approval |
| Material certificates | 3.1 material |
| Max. measurement error | Mass flow (liquid): ±0.15 % (standard), 0.10 % (option) Volume flow (liquid): ±0.15 % Mass flow (gas): ±0.75 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 100, Class 600, 63K |
| Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density |
| Measuring principle | Coriolis |
| Measuring range | 0 to 180 000 kg/h (0 to 6600 lb/min) |
| Medium temperature range | –40 to +140 °C (–40 to +284 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR |
| Nominal diameter range | DN 8 to 80 (⅜ to 3") |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL, marine PED, CRN 3-A |
| Outputs | 4 modular outputs: 0‐20 mA (active)/4‐20 mA (active/passive) Pulse/frequency/switch output (passive) Relay |
| Power Supply | DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz) |
| Pressure approvals and certificates | PED, CRN |
| Process pressure | PN 40...100 Cl150...600 JIS 10...63K |
| Process temperature | -40...+125°C (-40...+257°F) |
| Product headline | The flowmeter for minimized cost of ownership with extended transmitter functionality. Highly accurate measurement of liquids and gases for a wide range of standard applications. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Compact dual‐tube system. Medium temperature up to +140 °C (+284 °F). |
| Sensor housing material | 1.4301 (304), corrosion resistant |
| Transmitter features | Quality – software for filling & dosing, density & concentration, advanced diagnostics. Flexible data transfer options – numerous communication types. Automatic recovery of data for servicing. 4‐line backlit display with touch control. Device in compact or remote version. |
| Transmitter housing material | Powder‐coated die‐cast aluminium 1.4301 (304), sheet CF3M (316L), cast |
| Wetted materials | Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L) |
| Wetted parts | 904L/1.4539 |
Frequently Asked Questions
How do I get pricing for 83E?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 83E?
83E is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 83E?
Key specifications include + output: 4...20mA Pulse/Frequency (10KHz, active/passive) Relays/Status; Ambient temperature: -20...+65°C (-4...+140°F); Ambient temperature range: Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F); Certificates / Approvals: ATEX FM CSA. The full specification table on this page lists every published attribute for this part.
How quickly can 83E ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

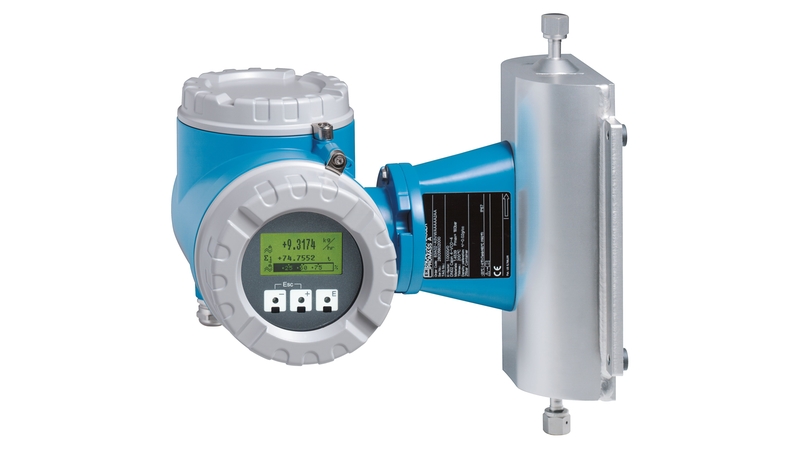

Endress+Hauser Endress+Hauser Promass 83A
Endress+Hauser Endress+Hauser Promass 83F

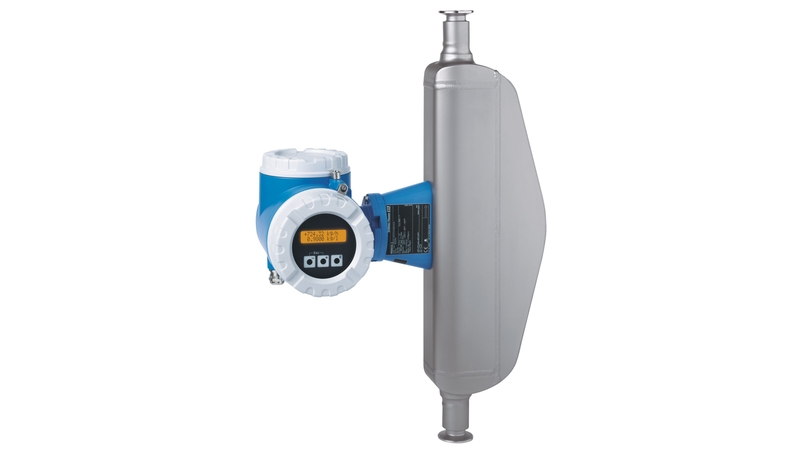

Endress+Hauser Endress+Hauser Promass 80S
