Endress+Hauser Promass 80F
Endress+Hauser 80F - Flow measurement - Ambient temperature: -20...+65°C (-4...+140°F); Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure; + output: 4...20mA Pulse/Frequency Status.
This listing covers the Endress+Hauser 80F, a part number in the Flow measurement category. The manufacturer's published data for this part number specifies Ambient temperature: -20...+65°C (-4...+140°F) and Degree of protection: IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure.
Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511
Published specifications for this part include + output: 4...20mA Pulse/Frequency Status; Power Supply: DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz); Measuring range: 0 to 2 200 000 kg/h (0 to 80 840 lb/min); Measuring principle: Coriolis; Nominal diameter range: DN 8 to 250 (⅜ to 10") High temperature: DN 25 (1"), DN 50 (2"), DN 80 (3"); Process pressure: PN 16...100 Cl 150...600 JIS 10...63K; Product safety: CE, C-tick, EAC marking; Hazardous area approvals: ATEX, IECEx, FM, CSA, NEPSI; Material certificates: 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME,NORSOK; Process temperature: -50...+350°C (-58...+662°F); Max. process pressure: PN 100, Class 600, 63K; Ambient temperature range: Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F). The complete technical table is shown in the Specifications tab on this page.
| + output | 4...20mA Pulse/Frequency Status |
|---|---|
| Ambient temperature | -20...+65°C (-4...+140°F) |
| Ambient temperature range | Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F) |
| Certificates / Approvals | ATEX FM CSA TIIS |
| Characteristic / Application | The universal and multivariable flowmeterfor liquids and gases |
| Degree of protection | IP67, type 4X enclosure. Remote transmitter: IP67, type 4X enclosure |
| Digital communication | HART PROFIBUS PA |
| Display/Operation | 2‐line backlit display with push buttons Configuration via local display and operating tools possible |
| Functional safety | Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511 |
| Hazardous area approvals | ATEX, IECEx, FM, CSA, NEPSI |
| Hygienic approvals and certificates | 3-A, EHEDG, FDA |
| Inputs | Status input |
| Marine approvals and certificates | Marine approval |
| Material certificates | 3.1 material NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME,NORSOK |
| Max. measurement error | Mass flow (liquid): ±0.15 % (standard), 0.1 % (option) Volume flow (liquid): ±0.15 % Mass flow (gas): ±0.35 % Density (liquid): ±0.0005 g/cm³ |
| Max. process pressure | PN 100, Class 600, 63K |
| Measured variables | Mass flow, density, temperature, volume flow, corrected volume flow, reference density |
| Measuring principle | Coriolis |
| Measuring range | 0 to 2 200 000 kg/h (0 to 80 840 lb/min) |
| Medium temperature range | Standard: –50 to +200 °C (–58 to +392 °F) High temperature: –50 to +350 °C (–58 to +662 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR |
| Nominal diameter range | DN 8 to 250 (⅜ to 10") High temperature: DN 25 (1"), DN 50 (2"), DN 80 (3") |
| Other approvals and certificates | 3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL, marine PED, CRN, AD 2000 3-A, FDA NACE MR0175/MR0103, PMI; welding test acc. to EN, ASME,NORSOK |
| Outputs | 3 outputs: 0‐20 mA (active)/4‐20 mA (active/passive) Pulse/frequency/switch output (passive) |
| Power Supply | DC 16 to 62 V AC 85 to 260 V (45 to 65 Hz) AC 20 to 55 V (45 to 65 Hz) |
| Pressure approvals and certificates | PED, CRN, AD 2000 |
| Process pressure | PN 16...100 Cl 150...600 JIS 10...63K |
| Process temperature | -50...+350°C (-58...+662°F) |
| Product headline | The robust flowmeter for demanding applications with a compact or remote transmitter. Highest measurement performance for liquids and gases under varying, demanding process conditions. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Highest process safety – immune to fluctuating and harsh environments. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in/outlet run needs. Mass flow: measurement error ±0,05 % (PremiumCal). pressure-rated sensor housing up to 40 bar (580 psi). |
| Sensor housing material | 1.4301/1.4307 (304L), corrosion resistant |
| Transmitter features | Cost‐effective – dedicated design for standard applications. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2‐line backlit display with push buttons. Device in compact or remote version. |
| Transmitter housing material | Powder‐coated die‐cast aluminium 1.4301 (304), sheet CF3M (316L), cast |
| Wetted materials | Measuring tube: 1.4539 (904L); 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) Connection: 1.4404 (316/316L); Alloy C22, 2.4602 (UNS N06022) |
| Wetted parts | 904L/1.4539 Alloy C-22 |
Frequently Asked Questions
How do I get pricing for 80F?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 80F?
80F is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 80F?
Key specifications include + output: 4...20mA Pulse/Frequency Status; Ambient temperature: -20...+65°C (-4...+140°F); Ambient temperature range: Standard: –20 to +60 °C (–4 to +140 °F) Option: –40 to +60 °C (–40 to +140 °F); Certificates / Approvals: ATEX FM CSA TIIS. The full specification table on this page lists every published attribute for this part.
How quickly can 80F ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Endress+Hauser Endress+Hauser Promass 80E
Endress+Hauser Endress+Hauser Promass 80H
Endress+Hauser Endress+Hauser Promass 80A

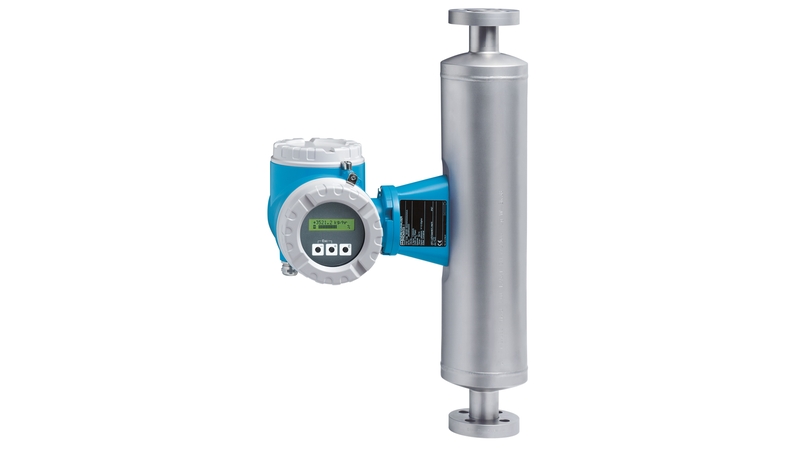

Endress+Hauser Endress+Hauser Promass 80I
