Endress+Hauser Promag 10D
| Ambient temperature range | –20 to +60 °C (–4 to +140 °F) |
|---|---|
| Degree of protection | Compact version: IP66&67, type 4X enclosure Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP 67, type 4X enclosure |
| Digital communication | HART |
| Display/Operation | 2‐line display with push buttons Configuration via local display and operating tools possible |
| Hazardous area approvals | FM CSA |
| Hygienic approvals and certificates | Drinking water approval: ACS, KTW-BWGL, NSF 61, WRAS BS 6920 |
| Inputs | None |
| Max. measurement error | Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s) |
| Max. process pressure | PN 16, Class 150, 10K |
| Measured variables | Volume flow |
| Measuring range | 9 to 4700 dm3/min (2.5 to 1250 gal/min) |
| Medium temperature range | 0 to +60 °C (+32 to +140 °F) |
| Metrological approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) |
| Nominal diameter range | DN 25 to 100 (1 to 4") |
| Outputs | 4‐20 mA HART (active) Pulse/switch output (passive) |
| Power Supply | DC 11 to 40 V AC 85 to 250 V (45 to 65 Hz) AC 20 to 28 V (45 to 65 Hz) |
| Product headline | std_productprofile_product_usp_8063. For basic water applications, optimized for limited space and plastic pipe installations. |
| Product safety | CE, C-tick, EAC marking |
| Sensor features | Easy, fast centering of the sensor – innovative housing construction. Energy‐saving flow measurement – no pressure loss due to cross section constriction. Maintenance‐free – no moving parts. std_productprofile_product_differentiating_tech_features_8071. std_productprofile_product_differentiating_tech_features_8072. International drinking water approvals. |
| Sensor housing material | AlSi10Mg, coated Sensor connection housing: AlSi10Mg, coated |
| Transmitter features | std_productprofile_product_benefits_34707_1508943674. std_productprofile_product_benefits_34705_1508943673. std_productprofile_product_benefits_34706_1508943673. 2-line display with push buttons. Device as compact or remote version. HART. |
| Transmitter housing material | Powder‐coated die‐cast aluminum |
| Wetted materials | Liner: Polyamide Electrodes: 1.4435 (316L) |
Frequently Asked Questions
How do I get pricing for 10D?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 10D?
10D is a Endress+Hauser part. KKM Solutions sources Endress+Hauser components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 10D?
Key specifications include Ambient temperature range: –20 to +60 °C (–4 to +140 °F); Degree of protection: Compact version: IP66&67, type 4X enclosure Sensor remote version: IP66/67, type 4X enclosure Transmitter remote version: IP 67, type 4X enclosure; Digital communication: HART; Display/Operation: 2‐line display with push buttons Configuration via local display and operating tools possible. The full specification table on this page lists every published attribute for this part.
How quickly can 10D ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

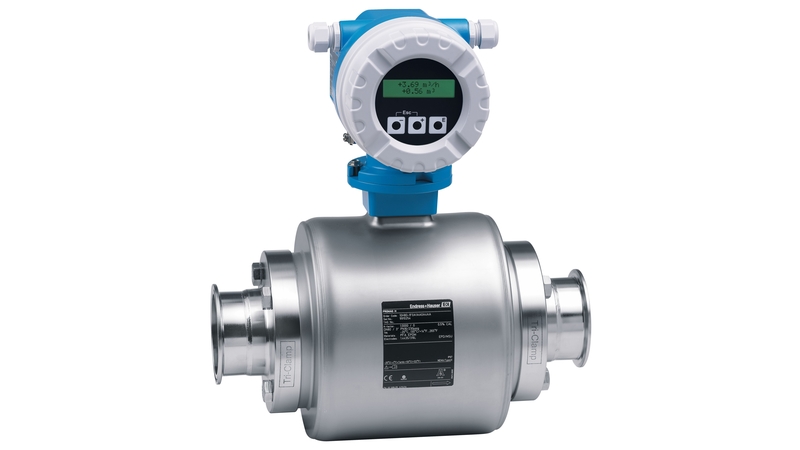

Endress+Hauser Endress+Hauser Promag 10H

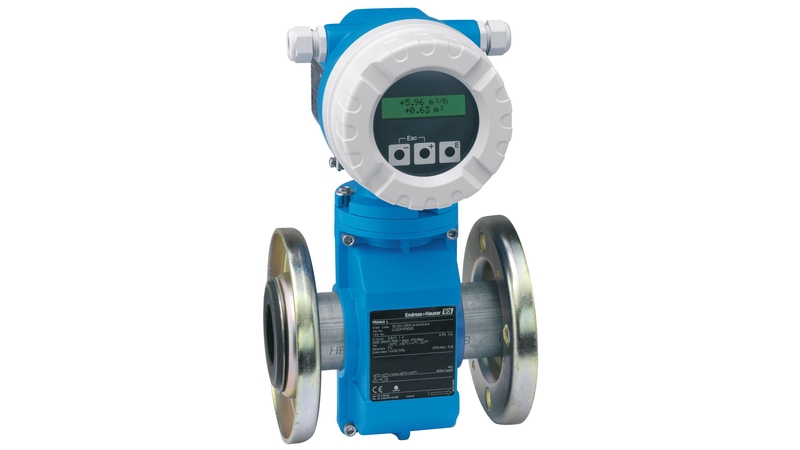

Endress+Hauser Endress+Hauser Promag 10L

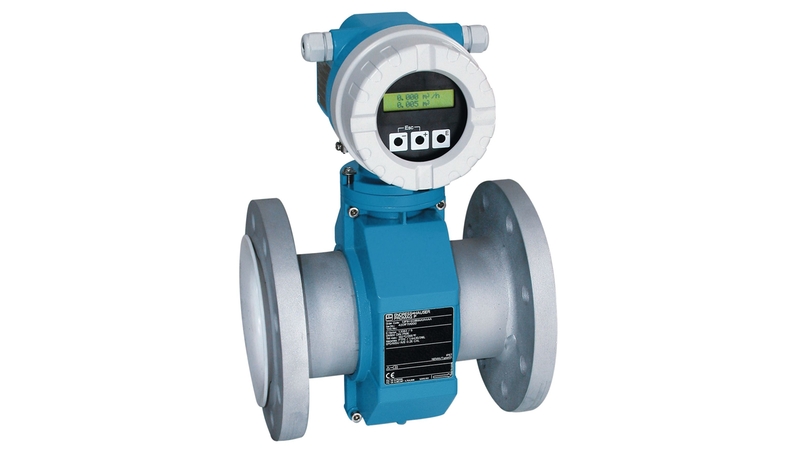

Endress+Hauser Endress+Hauser Promag 10P

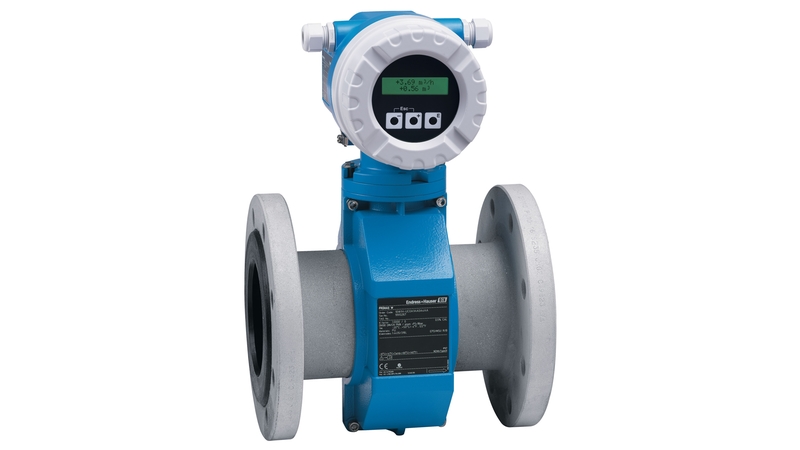

Endress+Hauser Endress+Hauser Promag 10W
