Danfoss Temperature transmitter, MBT 3560, 150 mm, G, 1/4
Danfoss 084Z4032 - MBT 3560 - Electrical connection: Angular connector; Type: MBT 3560; Gross weight: 0.182 Kilogram.
The Danfoss 084Z4032 is part of the MBT 3560 range in our industrial catalog. The manufacturer's published data for this part number specifies Electrical connection: Angular connector and Type: MBT 3560.
Key manufacturer data on file for this item includes Gross weight: 0.182 Kilogram; Net weight: 0.131 Kilogram; Volume: 0.582 Liter; EAN: 5702423197309; Product group: Sensors; Product Name Description: Temperature transmitter; China RoHS compliance: Out of scope; Connection standard: ISO 228; Connection type: G; Contains batteries: No; EU RoHS compliance: Yes with exemptions; Packing format: Multi pack. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 85 °C |
|---|---|
| Ambient temperature max. [°F] | 185 °F |
| Approval | CE |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Connection material | Stainless steel |
| Connection standard | ISO 228 |
| Connection type | G |
| Contains batteries | No |
| EAN | 5702423197309 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical conn. Male/Female | Male and Female |
| Electrical connection | Angular connector |
| Electrical connection size | Pg 9 |
| Electrical connection standard | EN 175301-803-A |
| Enclosure rating IP | IP65 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(c) |
| Gross weight | 0.182 Kilogram |
| In scope of WEEE | Yes |
| Insertion length [in] | 5.9 in |
| Insertion length [mm] | 150 mm |
| Insertion type | FIXED |
| Measuring range [°C] [Max] | 100 °C |
| Measuring range [°C] [Min] | 0 °C |
| Measuring range [°F] [Max] | 212 °F |
| Measuring range [°F] [Min] | 32 °F |
| Net weight | 0.131 Kilogram |
| Output signal [mA] [Max] | 20 mA |
| Output signal [mA] [Min] | 4 mA |
| Packing format | Multi pack |
| Process connection Male/Female | Male |
| Process connection material | Stainless steel |
| Process Connection Size | 1/4 |
| Process connection standard | ISO 228-1-A |
| Process Connection Type | G |
| Product group | Sensors |
| Product Name Description | Temperature transmitter |
| Protection tube diameter [in] | 0.315 in |
| Protection tube diameter [mm] | 8 mm |
| Protection tube material | AISI 316 TI |
| Quantity per packing format | 13 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | 8127e7d9-3431-4421-a02a-bab746bc2e4f |
| SCIP dossier product name | Sensor MBT 3560 |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element tolerance | < ± 1% FS |
| Sensor element type | Pt |
| Sensor Insert | FIXED |
| Supply voltage [V] DC [max] | 32 V |
| Supply voltage [V] DC [min] | 10 V |
| Temperature range [°C] [Max] | 200 °C |
| Temperature range [°C] [Min] | -50 °C |
| Temperature range [°F] [Max] | 392 °F |
| Temperature range [°F] [Min] | -58 °F |
| Transmitter setting range [°C] [Max] | 100 °C |
| Transmitter setting range [°C] [Min] | 0 °C |
| Transmitter setting range [°F] [Max] | 212 °F |
| Transmitter setting range [°F] [Min] | 32 °F |
| Transmitter type | Integrated |
| Type | MBT 3560 |
| Type designation | MBT 3560-0000-0150-10-110 |
| Volume | 0.582 Liter |
Frequently Asked Questions
How do I get pricing for 084Z4032?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084Z4032?
084Z4032 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084Z4032?
Key specifications include Ambient temperature max. [°C]: 85 °C; Ambient temperature max. [°F]: 185 °F; Approval: CE; CE evaluated: Yes. The full specification table on this page lists every published attribute for this part.
How quickly can 084Z4032 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

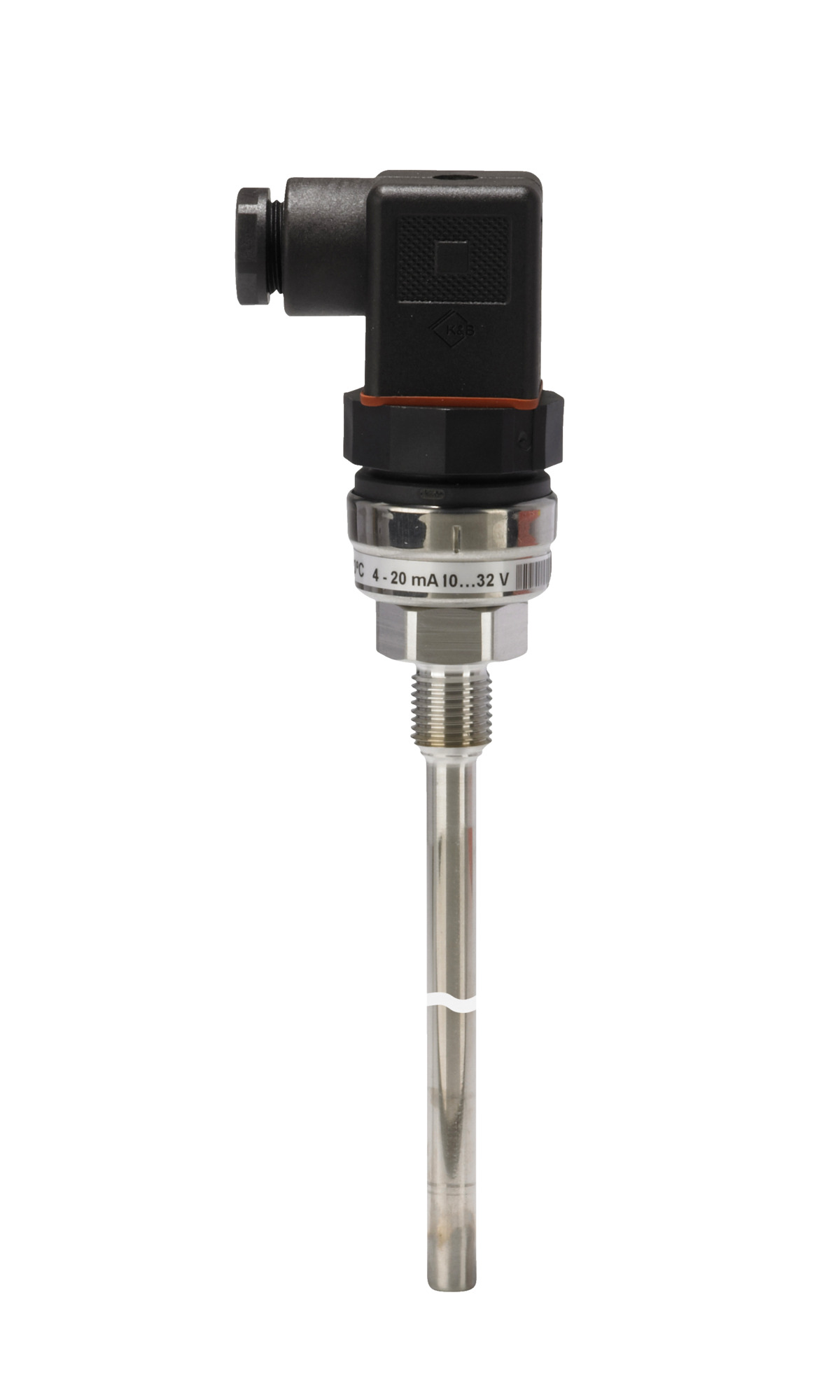

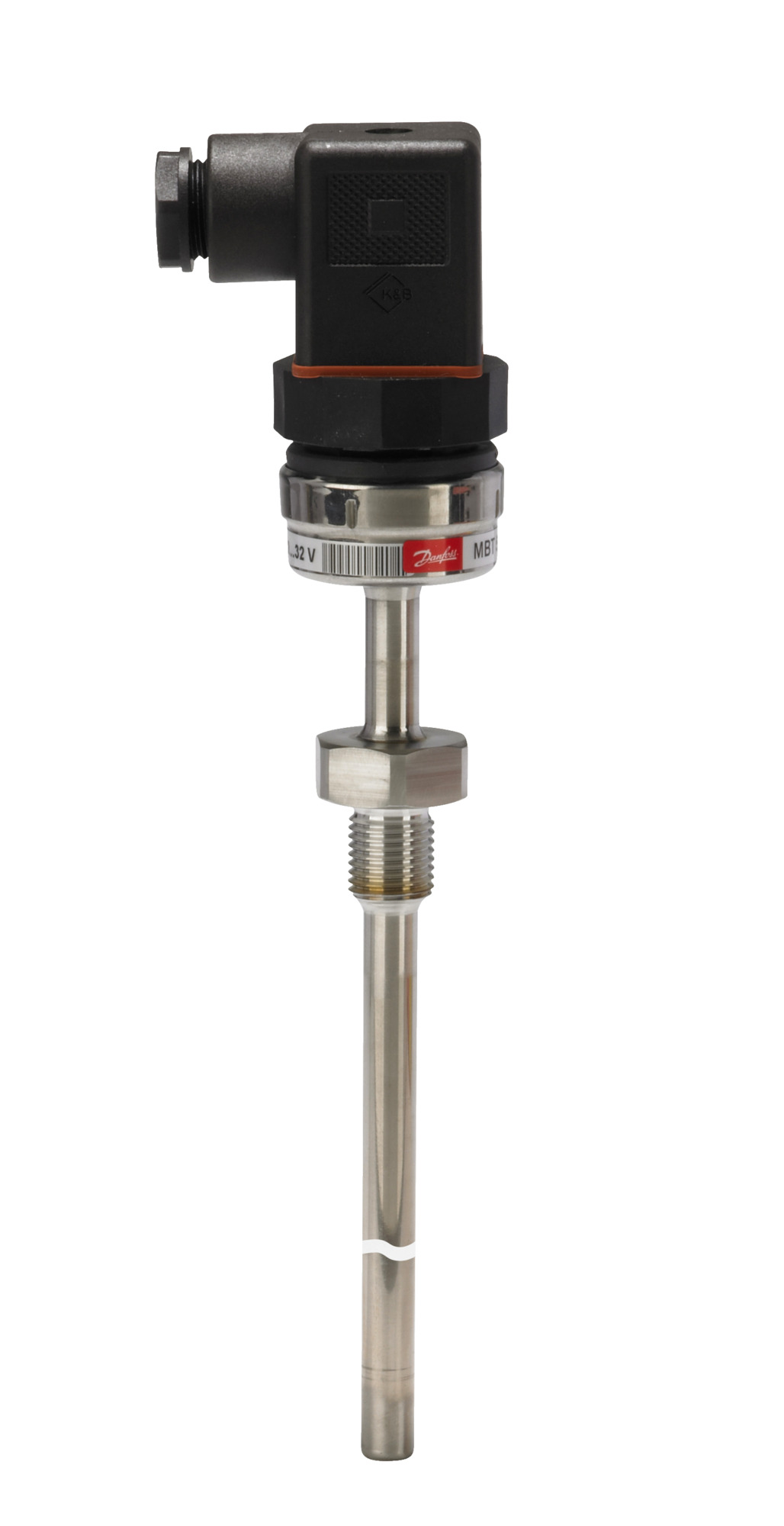

Danfoss Danfoss Temperature transmitter, MBT 3560, 100 mm, G, 1/4
