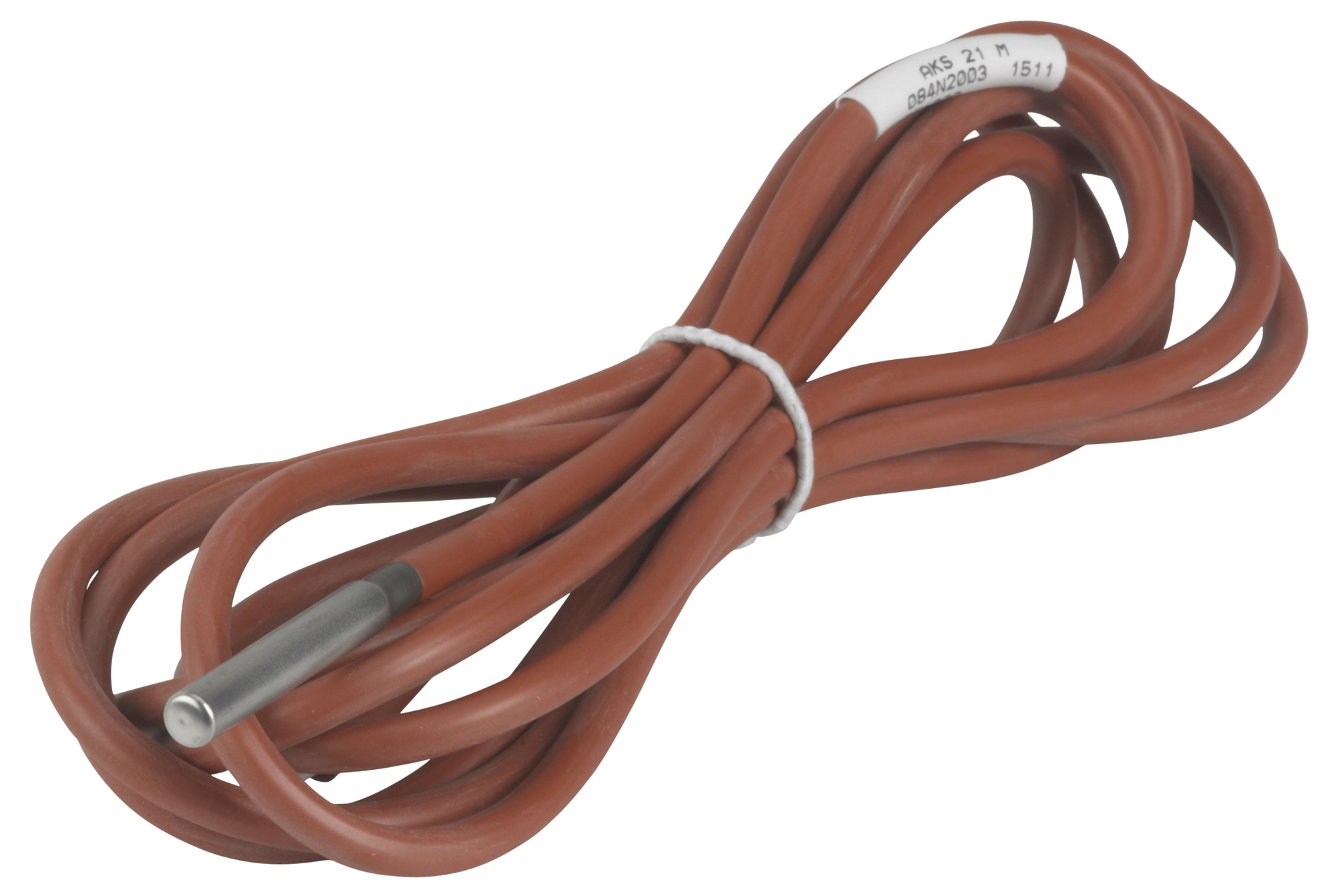

Danfoss Temperature sensor, AKS 21 A, 275.59 in, Pt, 1000 Ohm
Danfoss 084Z2352 - AKS 21 - Electrical connection: Cable; Type: AKS 21 A; Cable type: Silicone.
This listing covers the Danfoss 084Z2352, a part number in the AKS 21 category. The manufacturer's published data for this part number specifies Electrical connection: Cable and Type: AKS 21 A.
The specification set recorded for this part number covers Cable type: Silicone; Gross weight: 0.239 Kilogram; Net weight: 0.235 Kilogram; Volume: 0.36 Liter; EAN: 5702428915441; Product group: Sensors; Product Name Description: Temperature sensor; China RoHS compliance: Out of scope; Contains batteries: No; EU RoHS compliance: Yes; Packing format: Multi pack; Quantity per packing format: 20 pc. See the Specifications tab on this page for the full technical table.
| Ambient temperature max. [°C] | 180 °C |
|---|---|
| Ambient temperature max. [°F] | 356 °F |
| Approval | CE |
| Cable length [in] | 275.59 in |
| Cable length [m] | 7 m |
| Cable tempr. range [°C] [Max] | 200 °C |
| Cable tempr. range [°C] [Min] | -60 °C |
| Cable type | Silicone |
| CE evaluated | Yes |
| China RoHS compliance | Out of scope |
| Contains batteries | No |
| EAN | 5702428915441 |
| EEE category | 5 small equipment (any external dimension < 50 cm) |
| Electrical connection | Cable |
| Electrical connection size | 2 wire |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Gross weight | 0.239 Kilogram |
| In scope of WEEE | Yes |
| Measuring range [°C] [Max] | 200 °C |
| Measuring range [°C] [Min] | -60 °C |
| Measuring range [°F] [Max] | 392 °F |
| Measuring range [°F] [Min] | -76 °F |
| Net weight | 0.235 Kilogram |
| Packing format | Multi pack |
| Product group | Sensors |
| Product Name Description | Temperature sensor |
| Protection tube diameter [in] | 0.23 in |
| Protection tube diameter [mm] | 5.8 mm |
| Protection tube length [in] | 1.58 in |
| Protection tube length [mm] | 40 mm |
| Protection tube material | STAINLEES STEEL |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Sensor elem. resistance [Ohm] | 1000 Ohm |
| Sensor element [pc] | 1 pc |
| Sensor element standard | EN 60751 |
| Sensor element tolerance | Class B |
| Sensor element type | Pt |
| Sensor Insert | FIXED |
| Type | AKS 21 A |
| Volume | 0.36 Liter |
| Wires [pcs] | 2 pc |
Frequently Asked Questions
How do I get pricing for 084Z2352?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 084Z2352?
084Z2352 is a Danfoss part. KKM Solutions sources Danfoss components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 084Z2352?
Key specifications include Ambient temperature max. [°C]: 180 °C; Ambient temperature max. [°F]: 356 °F; Approval: CE; Cable length [in]: 275.59 in. The full specification table on this page lists every published attribute for this part.
How quickly can 084Z2352 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
