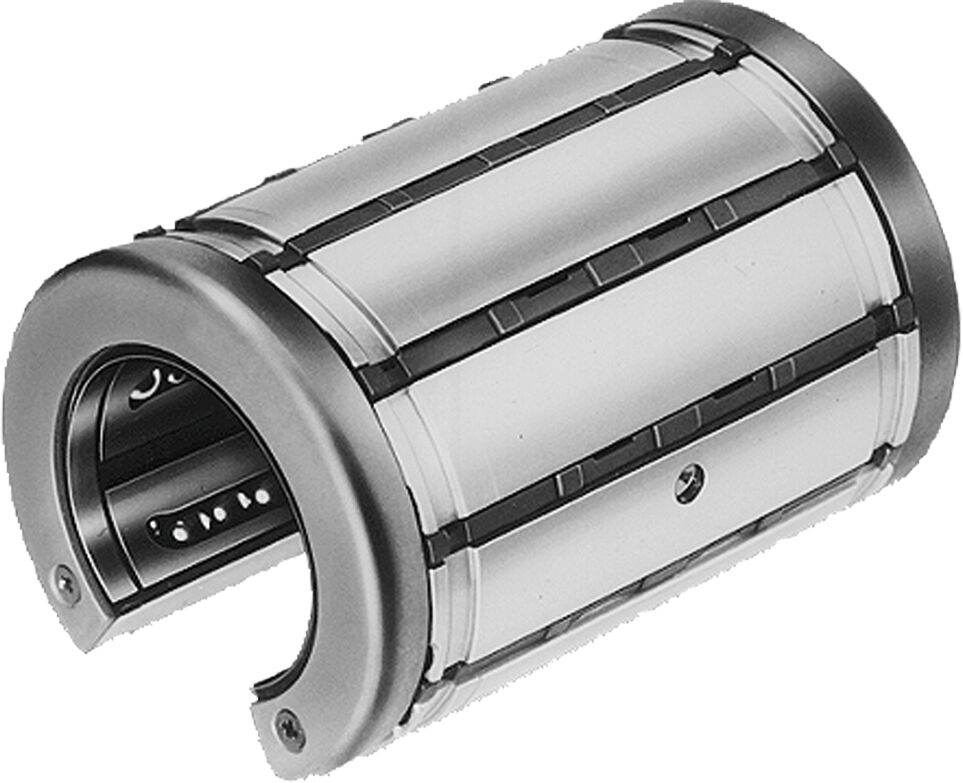

Bosch Rexroth SUPER LINEAR BUSHING KBSH-O-25-D
Bosch Rexroth R073112540 - Linear Motion & Guides - Series: Super SH; Type: Linear bushing; Version: Normal.
This listing covers the Bosch Rexroth R073112540, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Series: Super SH and Type: Linear bushing.
Published specifications for this part include Version: Normal; Weight (Kg): 0.16; Seal: 1 integrated wiper seal; Dimension [d] [mm]: 40; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 5.0; Dimension D1 [mm]: 38.5; Outer diameter D [mm]: 40.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -20 °C ... +80 °C; Static load capacity C0 [N]: 4530.0; Note: static load capacity C0: The load capacities apply for the main direction of loading.. The complete technical table is shown in the Specifications tab on this page.
| Angle β [°] | 60 |
|---|---|
| Breakaway force [N] | 7 |
| Dimension [d] [mm] | 40 |
| Dimension C h13 [mm] | 58 |
| Dimension C1 H13 [mm] | 43.7 |
| Dimension C2 [mm] | 1.85 |
| Dimension D1 [mm] | 38.5 |
| Dimension E [mm] | 12 |
| Dimension S3 [mm] | 3.5 |
| Dynamic load capacity C [N] | 6190.0 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote Dimension E | Lower limit relative to shaft Ø d |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Format of linear bushings | O - Open |
| Friction coefficient μ | 0.001 ... 0.004 |
| Length of linear bushing [mm] | 58.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: dynamic load capacity C | The load capacities apply for the main direction of loading. |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Note: static load capacity C0 | The load capacities apply for the main direction of loading. |
| Outer diameter D [mm] | 40.0 |
| Permissible ambient temperature (min. ... max.) | -20 °C ... +80 °C |
| Seal | 1 integrated wiper seal |
| Series | Super SH |
| Shaft diameter d [mm] | 25.0 |
| Static load capacity C0 [N] | 4530.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.16 |
Frequently Asked Questions
How do I get pricing for R073112540?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R073112540?
R073112540 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R073112540?
Key specifications include Angle β [°]: 60; Breakaway force [N]: 7; Dimension [d] [mm]: 40; Dimension C h13 [mm]: 58. The full specification table on this page lists every published attribute for this part.
How quickly can R073112540 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

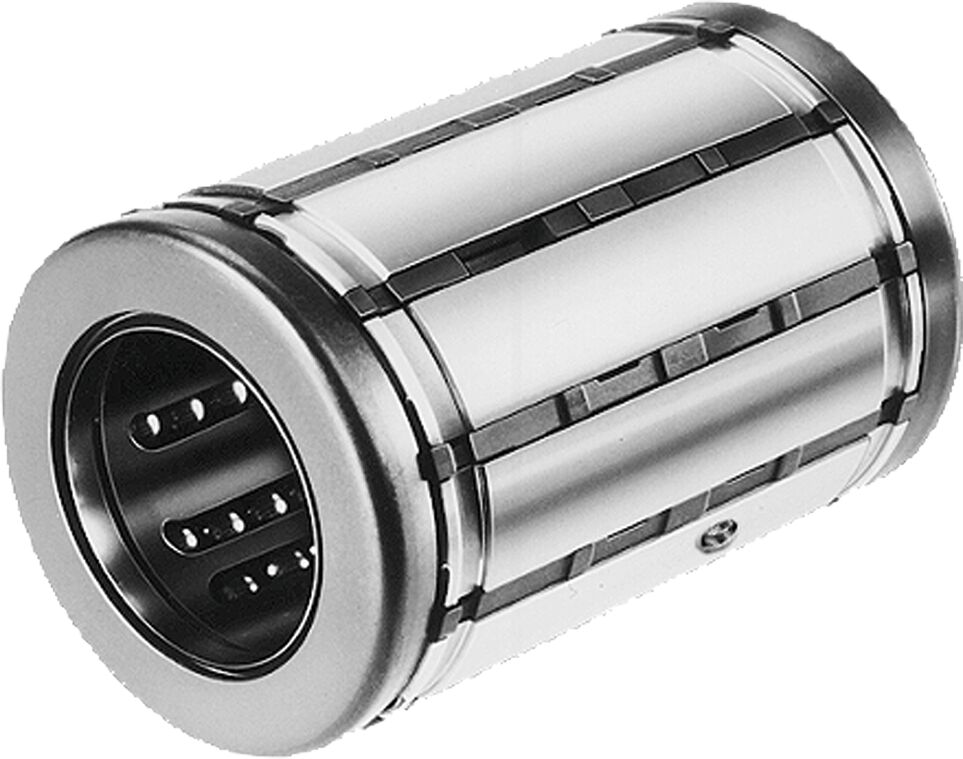

Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-20-DD
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-O-40-D
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-LR-40DD
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-O-30-DD

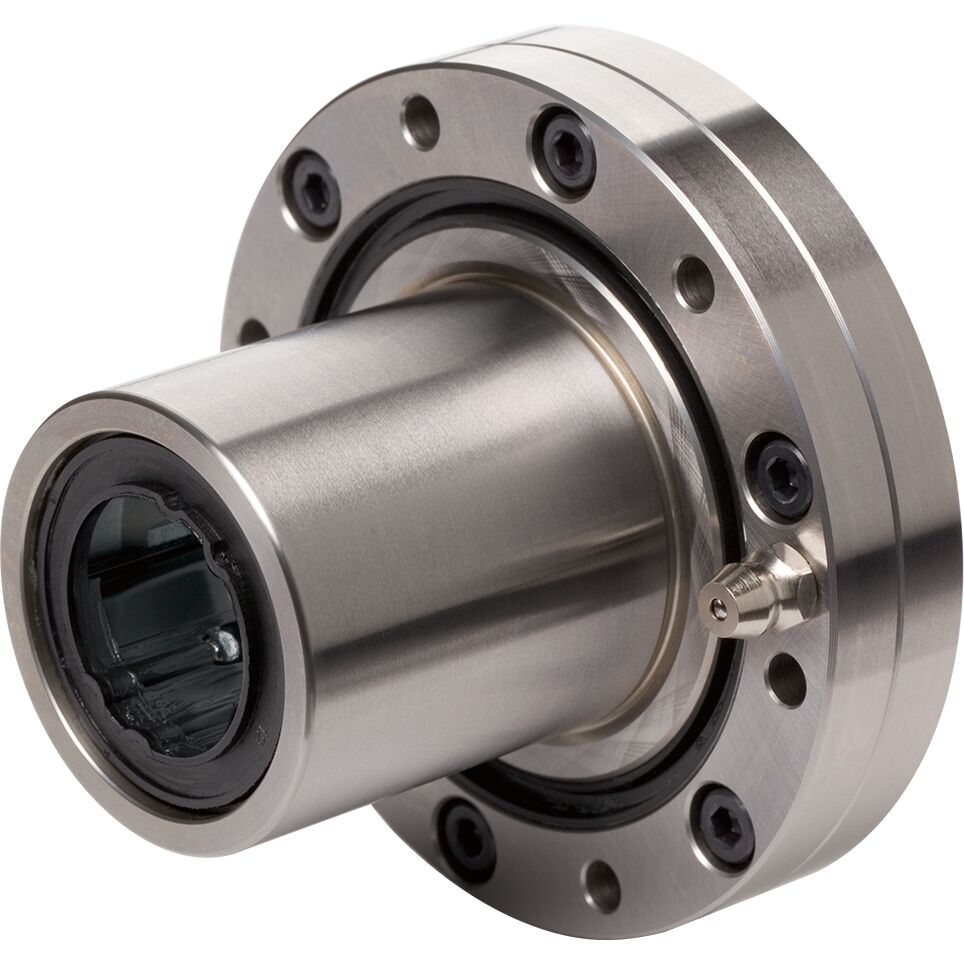

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-LR-25DD
