Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-LR-25DD
Bosch Rexroth R072722500 - Linear Motion & Guides - Series: Torque; Type: Linear bushing; Version: Normal.
The R072722500 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Series: Torque and Type: Linear bushing.
Published specifications for this part include Version: Normal; Weight (Kg): 0.8; Seal: 2 integrated wiper seals; Dimension [d] [mm]: 40; Dimension [l1] [mm]: 16; Dimension [L2] [mm]: 13; Dimension [L3] [mm]: 6.4; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 3.0; Dynamic torsional moment load capacity Mt [Nm]: 129.0; Dimension D1 [mm]: 78; Dimension D2 [mm]: 40. See the Specifications tab on this page for the full technical table.
| Dimension [d] [mm] | 40 |
|---|---|
| Dimension [l1] [mm] | 16 |
| Dimension [L2] [mm] | 13 |
| Dimension [L3] [mm] | 6.4 |
| Dimension D1 [mm] | 78 |
| Dimension D1 h7 [mm] | 78 |
| Dimension D2 [mm] | 40 |
| Dimension D3 [mm] | 42 |
| Dimension D4 [mm] | 68 |
| Dimension L [mm] | 70 |
| Dimension L tolerance [mm] | -0.3 |
| Dimension S [mm] | 4.5 |
| Dimension t [mm] | 8 |
| Dynamic load capacity C [N] | 9800.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 129.0 |
| Footnote diameter d | Actual shaft diameter varies |
| Format of linear bushings | LR - With rotation ball bearing |
| Length of linear bushing [mm] | 70.0 |
| Limit speed (grease) nmax | 1000 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the orientation and direction of loading cannot always be clearly defined. |
| Note: tightening torque | Tightening torque at friction factor 0.125 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Raceway grooves | 4 |
| Seal | 2 integrated wiper seals |
| Series | Torque |
| Shaft diameter d [mm] | 25.0 |
| Shaft diameter, detailed [mm] | 23 |
| Static load capacity C0 [N] | 16100.0 |
| Static torsional moment load capacity Mt0 [Nm] | 239 |
| Tightening torque [Nm] | 3.9 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.8 |
Frequently Asked Questions
How do I get pricing for R072722500?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R072722500?
R072722500 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R072722500?
Key specifications include Dimension [d] [mm]: 40; Dimension [l1] [mm]: 16; Dimension [L2] [mm]: 13; Dimension [L3] [mm]: 6.4. The full specification table on this page lists every published attribute for this part.
How quickly can R072722500 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-LR-40DD

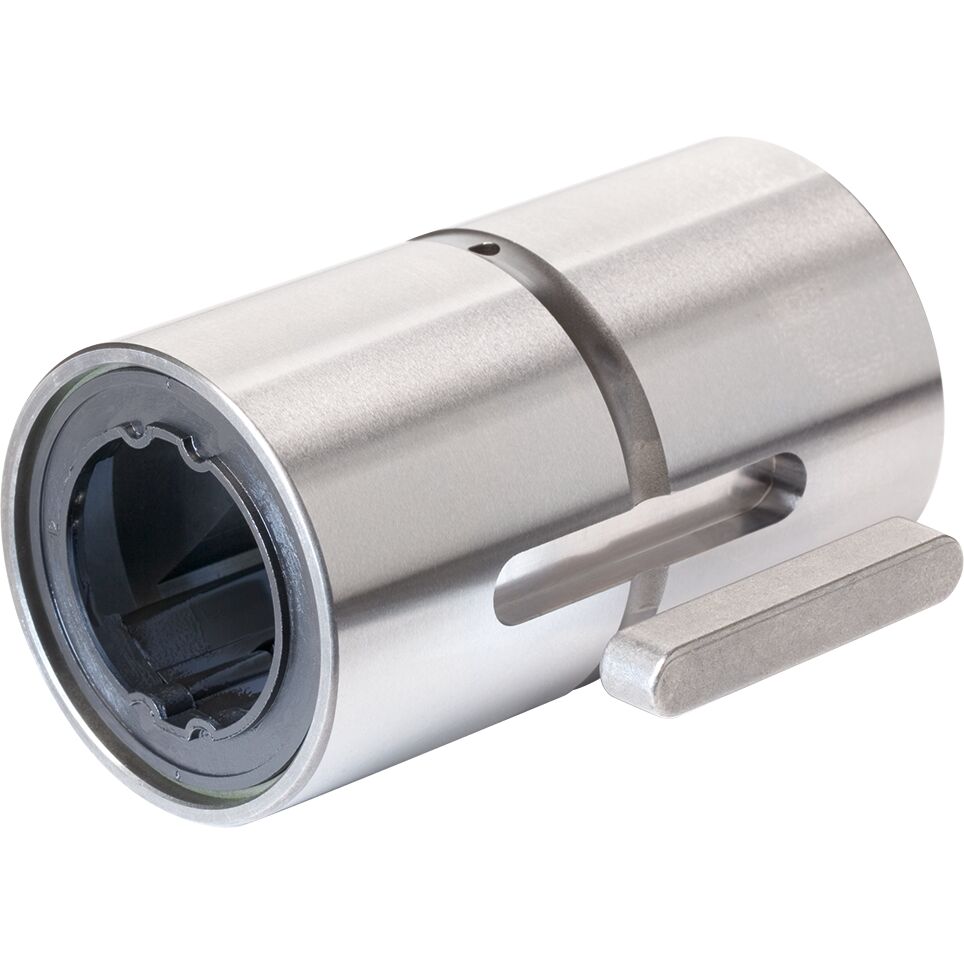

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-H-30DD
Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBSH-20-DD

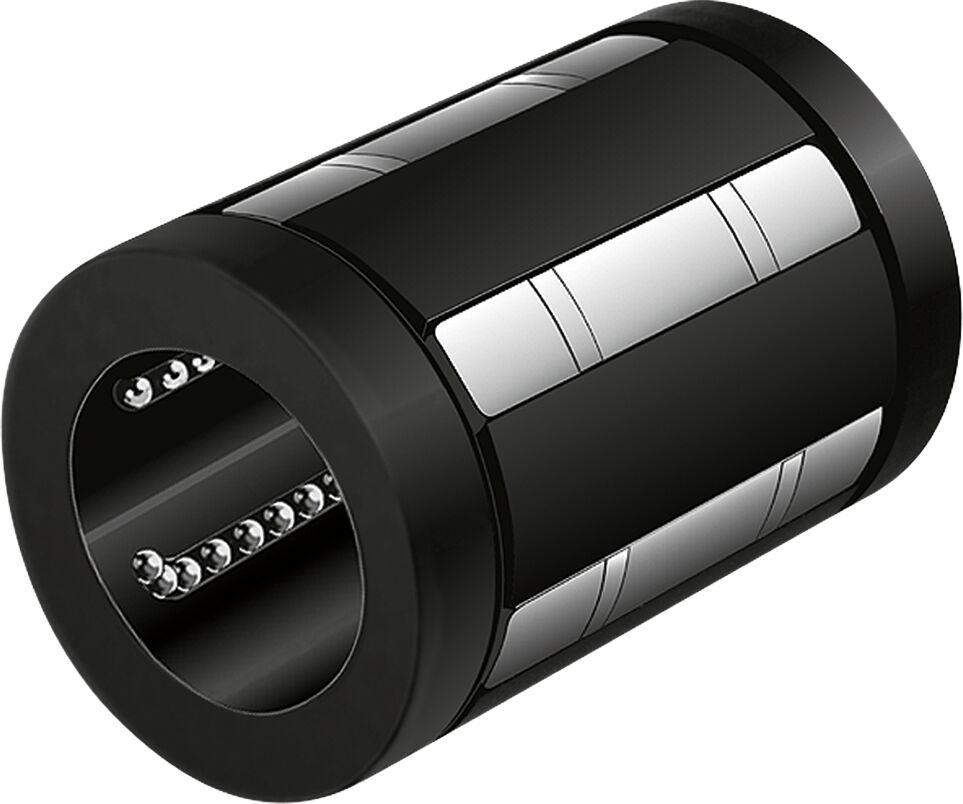

Bosch Rexroth Bosch Rexroth SUPER LINEAR BUSHING KBB-40-D
