Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-H-25DD
Bosch Rexroth R072422500 - Linear Motion & Guides - Series: Torque; Type: Linear bushing; Version: Normal.
Bosch Rexroth R072422500 is a Linear Motion & Guides catalog item from Bosch Rexroth. The manufacturer's published data for this part number specifies Series: Torque and Type: Linear bushing.
The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.
Published specifications for this part include Version: Normal; Weight (Kg): 0.24; Seal: 2 integrated wiper seals; Dimension b [mm]: 5; Dimension [d] [mm]: 37; Dimension [l1] [mm]: 33; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 3.0; Dynamic torsional moment load capacity Mt [Nm]: 129.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Static load capacity C0 [N]: 16100.0. See the Specifications tab on this page for the full technical table.
| Dimension [d] [mm] | 37 |
|---|---|
| Dimension [l1] [mm] | 33 |
| Dimension b [mm] | 5 |
| Dimension D h6 [mm] | 37 |
| Dimension L [mm] | 70 |
| Dimension L tolerance [mm] | -0.3 |
| Dimension t [mm] | 3 |
| Dimension t1 [mm] | 5 |
| Dynamic load capacity C [N] | 9800.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 129.0 |
| Footnote diameter d | Actual shaft diameter varies |
| Format of linear bushings | H - Sleeve design |
| Length of linear bushing [mm] | 70.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Raceway grooves | 4 |
| Seal | 2 integrated wiper seals |
| Series | Torque |
| Shaft diameter d [mm] | 25.0 |
| Shaft diameter, detailed [mm] | 23 |
| Static load capacity C0 [N] | 16100.0 |
| Static torsional moment load capacity Mt0 [Nm] | 239 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.24 |
Frequently Asked Questions
How do I get pricing for R072422500?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R072422500?
R072422500 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R072422500?
Key specifications include Dimension [d] [mm]: 37; Dimension [l1] [mm]: 33; Dimension b [mm]: 5; Dimension D h6 [mm]: 37. The full specification table on this page lists every published attribute for this part.
How quickly can R072422500 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-H-16DD
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-F-13DD
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDRC2-50-WV-600

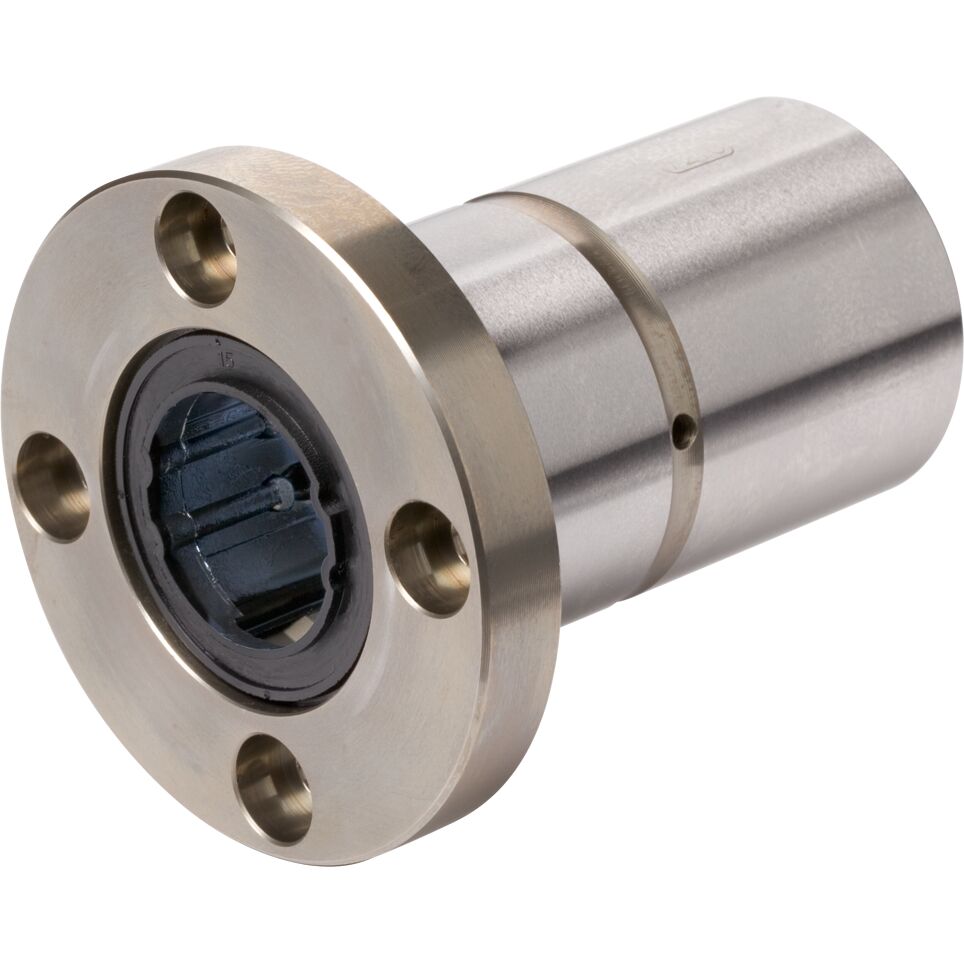

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-F-30DD
