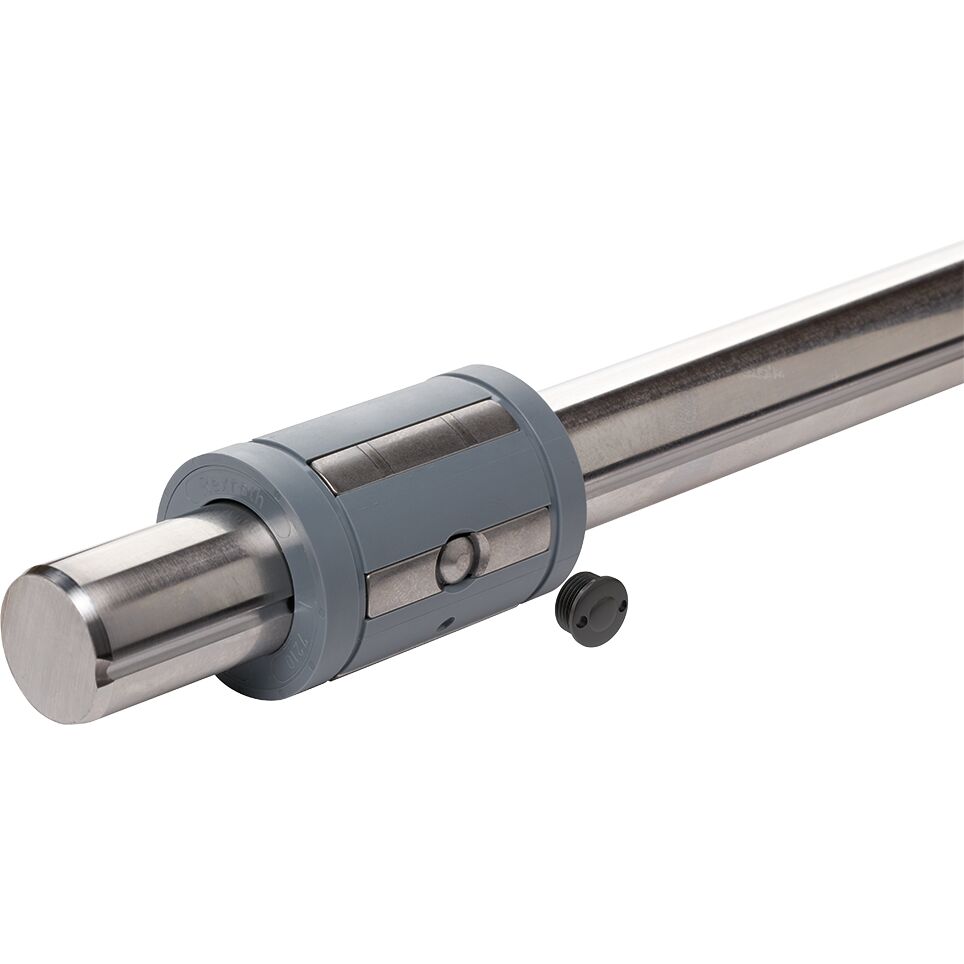

Bosch Rexroth TORQUE RESISTANT BUSHING KBDRC2-50-WV-600
Bosch Rexroth R072035080 - Linear Motion & Guides - Series: Torque-resistant compact; Type: Linear bushing; Version: Normal.
The R072035080 from Bosch Rexroth is listed under Linear Motion & Guides in our catalog. The manufacturer's published data for this part number specifies Series: Torque-resistant compact and Type: Linear bushing.
Published specifications for this part include Version: Normal; Weight (Kg): 0.67; Seal: Without wiper seals; Dimension [d] [mm]: 75; Maximum acceleration rate amax [m/s²]: 150.0; Maximum permissible linear speed vmax [m/s]: 3.0; Dynamic torsional moment load capacity Mt [Nm]: 167.0; Outer diameter D [mm]: 75.0; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Static load capacity C0 [N]: 6470.0; Note: static load capacity C0: The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined.; Dimension B (profiled rail systems) [mm]: 100. The complete technical table is shown in the Specifications tab on this page.
| Dimension [d] [mm] | 75 |
|---|---|
| Dimension B (profiled rail systems) [mm] | 100 |
| Dimension M1 [mm] | 20 |
| Dimension N1 (profiled rail systems) [mm] | 46.7 |
| Dimension N2 (profiled rail systems) [mm] | 3 |
| Dynamic load capacity C [N] | 9250.0 |
| Dynamic torsional moment load capacity Mt [Nm] | 167.0 |
| Format of linear bushings | – Closed |
| Length of linear bushing [mm] | 100.0 |
| Mass m (kg/m) [kg/m] | 15.3 |
| Maximum acceleration rate amax [m/s²] | 150.0 |
| Maximum permissible linear speed vmax [m/s] | 3.0 |
| Note: dynamic load capacity C | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Note: static load capacity C0 | The load capacities indicated are minimal values as the direction of loading cannot always be clearly defined. |
| Outer diameter D [mm] | 75.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Raceway grooves | 2 |
| Seal | Without wiper seals |
| Series | Torque-resistant compact |
| Shaft diameter d [mm] | 50.0 |
| Standard length l of the shaft [mm] | 600 |
| Standard length l of the shaft footnote [mm] | R.... ... 85: l = 900 mm, R.... ... 87: l = 1200 mm, R.... ... 88: l = 2000 mm |
| Static load capacity C0 [N] | 6470.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.67 |
Frequently Asked Questions
How do I get pricing for R072035080?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R072035080?
R072035080 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R072035080?
Key specifications include Dimension [d] [mm]: 75; Dimension B (profiled rail systems) [mm]: 100; Dimension M1 [mm]: 20; Dimension N1 (profiled rail systems) [mm]: 46.7. The full specification table on this page lists every published attribute for this part.
How quickly can R072035080 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDRC2-40-WV-900
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-H-16DD

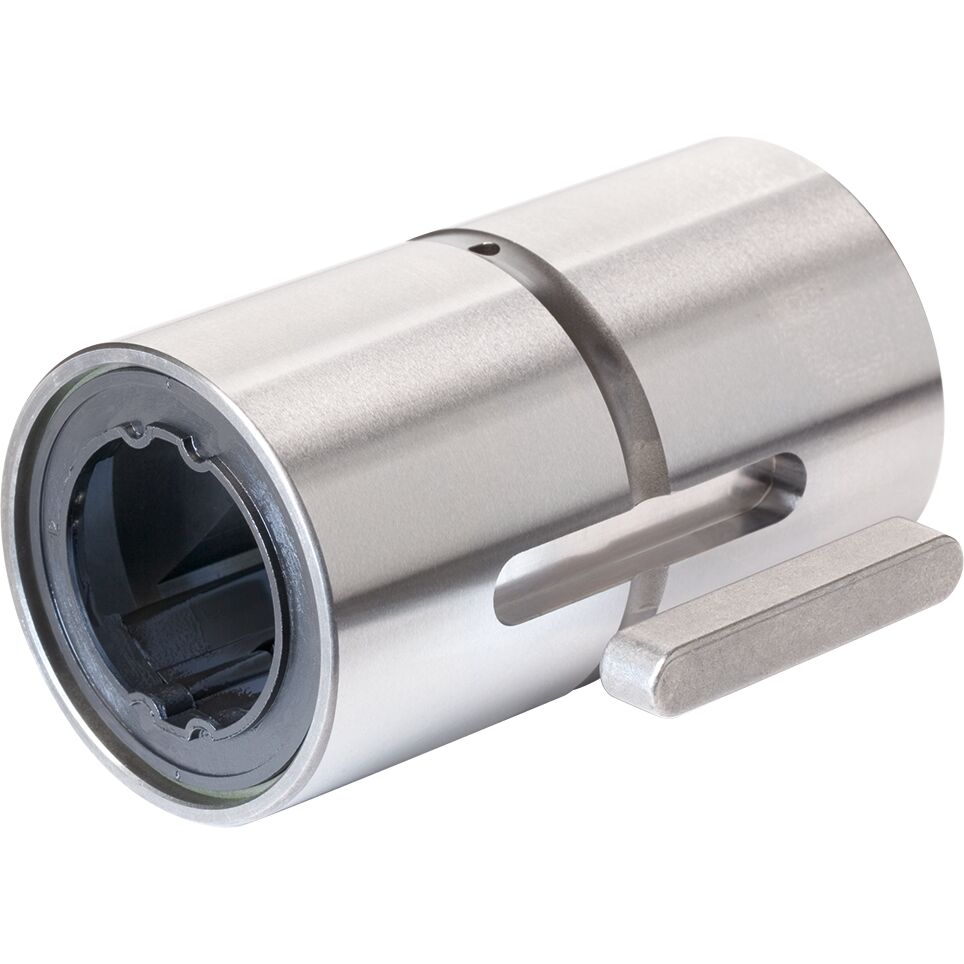

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-H-25DD
Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDRC2-30-WV-900

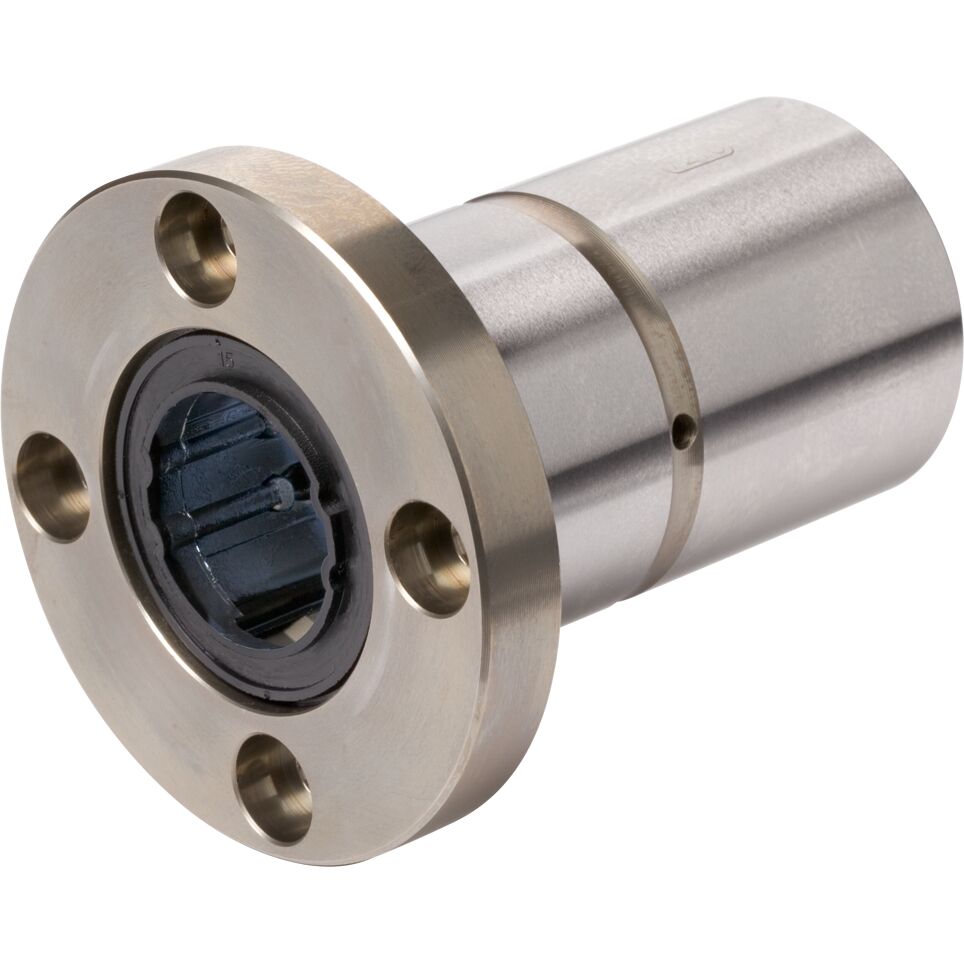

Bosch Rexroth Bosch Rexroth TORQUE RESISTANT BUSHING KBDR4-F-13DD
