Bosch Rexroth STANDARD LINEAR BUSHING KBM-O-16
Bosch Rexroth R063001600 - Linear Motion & Guides - Series: Standard (metal); Type: Linear bushing; Version: Normal.
This listing covers the Bosch Rexroth R063001600, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Series: Standard (metal) and Type: Linear bushing.
Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
The specification set recorded for this part number covers Version: Normal; Weight (Kg): 0.05; Seal: Without wiper seals; Dimension [d] [mm]: 26; Maximum acceleration rate amax [m/s²]: 100.0; Maximum permissible linear speed vmax [m/s]: 2.5; Dimension D1 [mm]: 24.9; Outer diameter D [mm]: 26.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Static load capacity C0 [N]: 450.0; Note: static load capacity C0: The load capacities C and C0 apply for the main direction of loading.. See the Specifications tab on this page for the full technical table.
| Angle β [°] | 78 |
|---|---|
| Breakaway force [N] | 12 |
| Dimension [d] [mm] | 26 |
| Dimension C h12 [mm] | 36 |
| Dimension C1 H13 [mm] | 24.6 |
| Dimension C2 [mm] | 1.3 |
| Dimension D1 [mm] | 24.9 |
| Dimension E [mm] | 10 |
| Dynamic load capacity C [N] | 600.0 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote diameter d | Without locating hole for radial and axial retainer. |
| Footnote Dimension E | Lower limit relative to Ø d. |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Format of linear bushings | O - Open |
| Friction coefficient μ | 0.001 ... 0.004 |
| Length of linear bushing [mm] | 36.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: dynamic load capacity C | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Note: static load capacity C0 | The load capacities C and C<sub>0</sub> apply for the main direction of loading. |
| Outer diameter D [mm] | 26.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | Without wiper seals |
| Series | Standard (metal) |
| Shaft diameter d [mm] | 16.0 |
| Static load capacity C0 [N] | 450.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.05 |
Frequently Asked Questions
How do I get pricing for R063001600?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R063001600?
R063001600 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R063001600?
Key specifications include Angle β [°]: 78; Breakaway force [N]: 12; Dimension [d] [mm]: 26; Dimension C h12 [mm]: 36. The full specification table on this page lists every published attribute for this part.
How quickly can R063001600 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-E-50

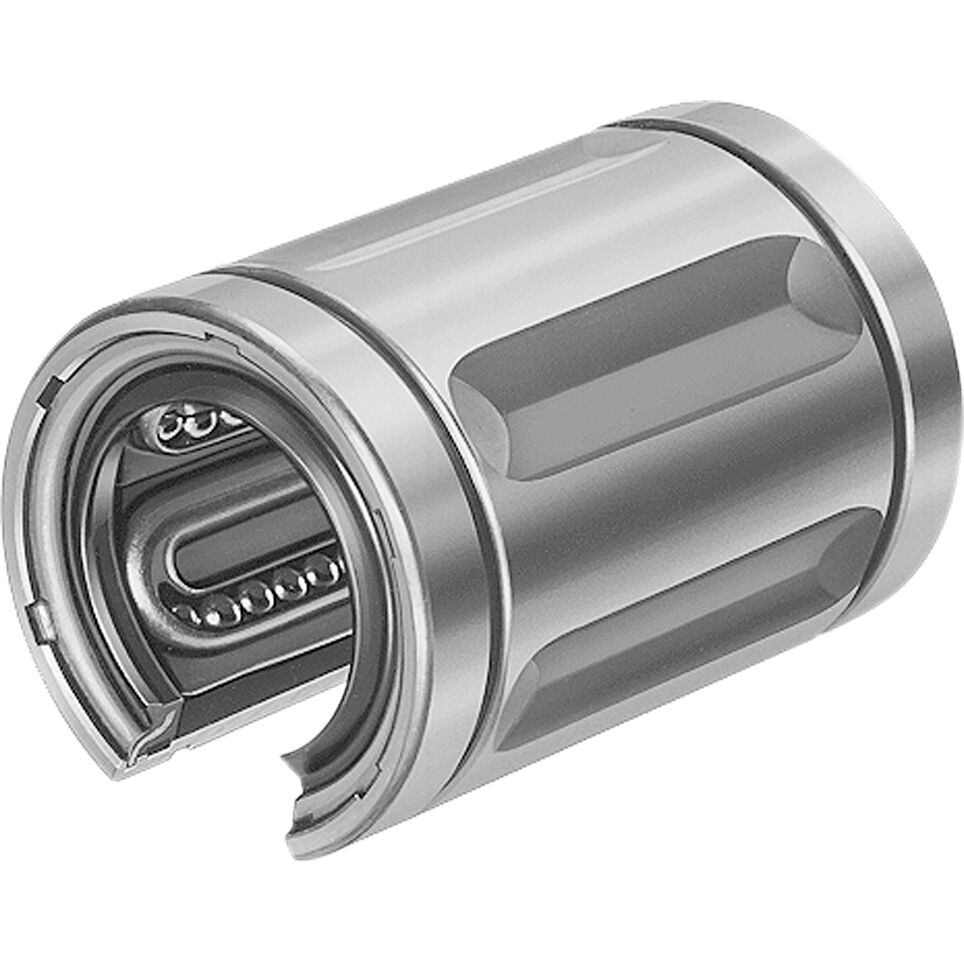

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-O-50

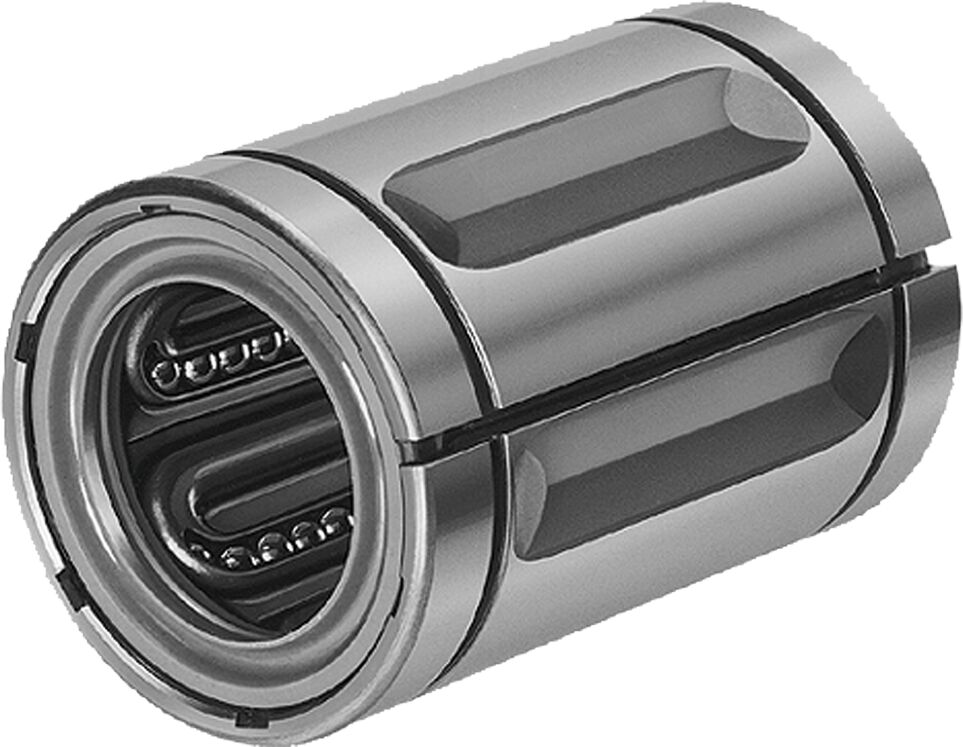

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-E-40
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-O-40-D

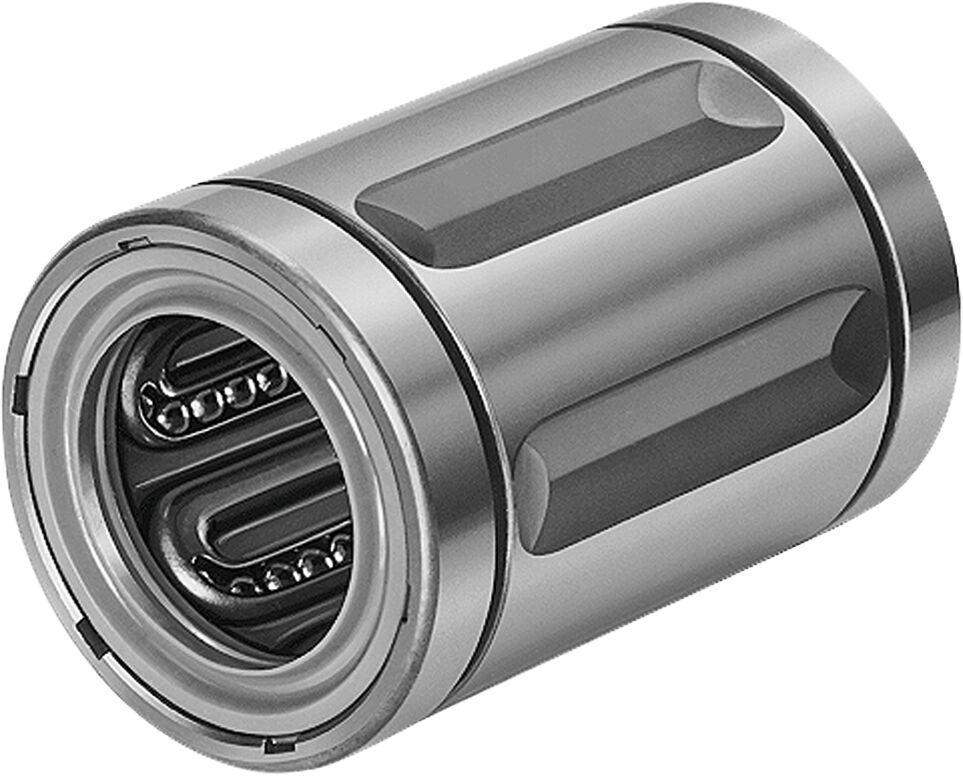

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-10-DD &
