Bosch Rexroth STANDARD LINEAR BUSHING KBM-10-DD &
Bosch Rexroth R060231010 - Linear Motion & Guides - Series: Standard (metal); Type: Linear bushing; Version: Normal.
The Bosch Rexroth R060231010 is part of the Linear Motion & Guides range in our industrial catalog. The manufacturer's published data for this part number specifies Series: Standard (metal) and Type: Linear bushing.
Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
Key manufacturer data on file for this item includes Version: Normal; Weight (Kg): 0.03; Seal: 2 integrated wiper seals; Dimension [d] [mm]: 19; Maximum acceleration rate amax [m/s²]: 100.0; Maximum permissible linear speed vmax [m/s]: 2.5; Dimension D1 [mm]: 18; Outer diameter D [mm]: 19.0; Lubrication: Not lubricated; Permissible ambient temperature (min. ... max.): -10 °C ... +80 °C; Shaft diameter d [mm]: 10.0; Format of linear bushings: – Closed. The complete technical table is shown in the Specifications tab on this page.
| Breakaway force [N] | 2 |
|---|---|
| Dimension [d] [mm] | 19 |
| Dimension C h12 [mm] | 29 |
| Dimension C1 H13 [mm] | 21.6 |
| Dimension C2 [mm] | 1.3 |
| Dimension D1 [mm] | 18 |
| Footnote breakaway force | One wiper seal: Multiply value with factor 0.5 |
| Footnote friction force FR | One wiper seal: Multiply value with factor 0.5 |
| Footnote maximum dynamic load capacity Cmax | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote minimum dynamic load capacity Cmin | The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26. |
| Footnote shaft radial clearance h6 | Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7. |
| Format of linear bushings | – Closed |
| Friction coefficient μ | 0.001 ... 0.004 |
| Length of linear bushing [mm] | 29.0 |
| Lubrication | Not lubricated |
| Maximum acceleration rate amax [m/s²] | 100.0 |
| Maximum dynamic load capacity Cmax [N] | 350.0 |
| Maximum permissible linear speed vmax [m/s] | 2.5 |
| Note: friction coefficient μ | Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. |
| Note: permissible ambient temperature (min. ... max.) | Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity. |
| Outer diameter D [mm] | 19.0 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Seal | 2 integrated wiper seals |
| Series | Standard (metal) |
| Shaft diameter d [mm] | 10.0 |
| Type | Linear bushing |
| Version | Normal |
| Weight (Kg) | 0.03 |
Frequently Asked Questions
How do I get pricing for R060231010?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R060231010?
R060231010 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R060231010?
Key specifications include Breakaway force [N]: 2; Dimension [d] [mm]: 19; Dimension C h12 [mm]: 29; Dimension C1 H13 [mm]: 21.6. The full specification table on this page lists every published attribute for this part.
How quickly can R060231010 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-E-40

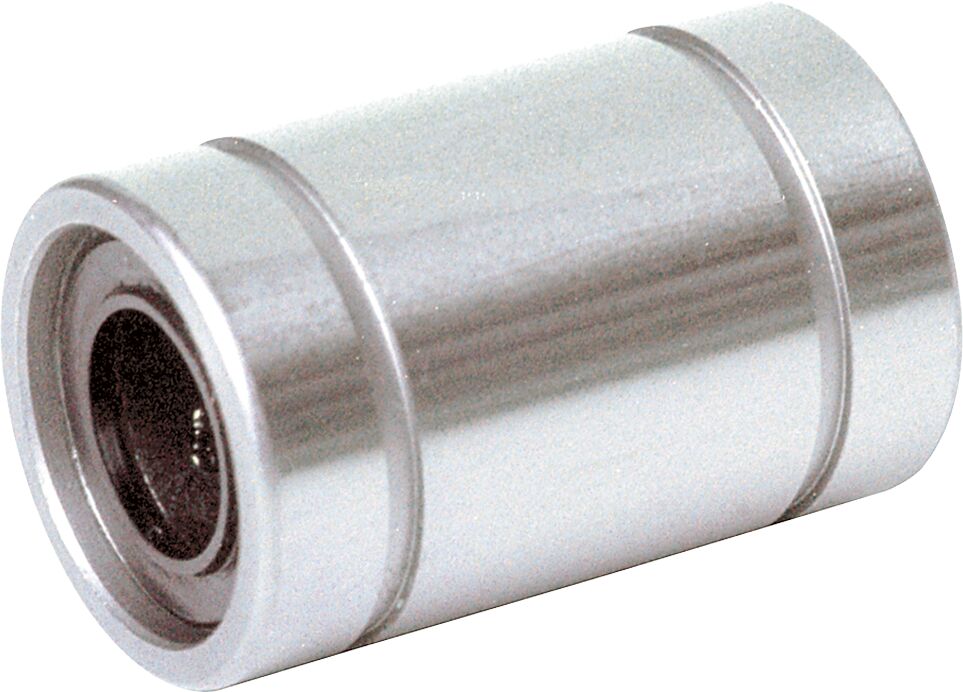

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-5-DD-NR &
Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-E-50

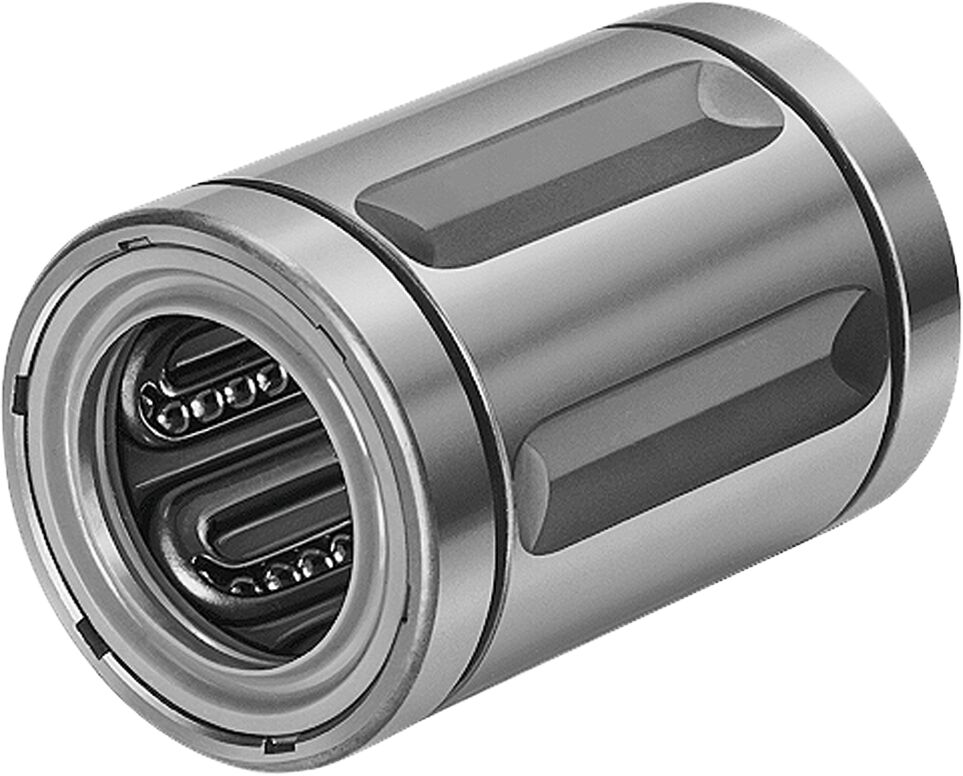

Bosch Rexroth Bosch Rexroth STANDARD LINEAR BUSHING KBM-80-D
