Bosch Rexroth CONNECTING SHAFT CKR 12-90
Bosch Rexroth R039151016 - Linear Motion & Guides - Weight (Kg): 0.47; Dimension [d] [mm]: 10; Nominal size [mm]: 90.
This listing covers the Bosch Rexroth R039151016, a part number in the Linear Motion & Guides category. The manufacturer's published data for this part number specifies Weight (Kg): 0.47 and Dimension [d] [mm]: 10.
The specification set recorded for this part number covers Nominal size [mm]: 90; Mechanical accessories for linear axes: Connecting shafts; Dimension A (profiled rail systems) [mm]: 40; Outer diameter D [mm]: 10.0; Mass m: 0.0009 · (Lcs (mm) - 80) + 0.21; Mass moment of inertia: 0.032 · (Lcs (mm) - 80) + 68.2; Dimension Lcs max. [mm]: 3000; Dimension Lcs min. [mm]: 105; Tightening torque [Nm]: 5; Rated torque of connecting shaft Mcs [Nm]: 10; Peak torque of connecting shaft Ms [Nm]: 17; Dimension thread M: M4. See the Specifications tab on this page for the full technical table.
| Dimension [d] [mm] | 10 |
|---|---|
| Dimension A (profiled rail systems) [mm] | 40 |
| Dimension LB [mm] | 22 |
| Dimension Lcs max. [mm] | 3000 |
| Dimension Lcs min. [mm] | 105 |
| Dimension thread M | M4 |
| Mass m | 0.0009 · (L<sub>cs</sub> (mm) - 80) + 0.21 |
| Mass moment of inertia | 0.032 · (L<sub>cs</sub> (mm) - 80) + 68.2 |
| Mechanical accessories for linear axes | Connecting shafts |
| Nominal size [mm] | 90 |
| Outer diameter D [mm] | 10.0 |
| Peak torque of connecting shaft Ms [Nm] | 17 |
| Rated torque of connecting shaft Mcs [Nm] | 10 |
| Tightening torque [Nm] | 5 |
| Weight (Kg) | 0.47 |
Frequently Asked Questions
How do I get pricing for R039151016?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the R039151016?
R039151016 is a Bosch Rexroth part. KKM Solutions sources Bosch Rexroth components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of R039151016?
Key specifications include Dimension [d] [mm]: 10; Dimension A (profiled rail systems) [mm]: 40; Dimension LB [mm]: 22; Dimension Lcs max. [mm]: 3000. The full specification table on this page lists every published attribute for this part.
How quickly can R039151016 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

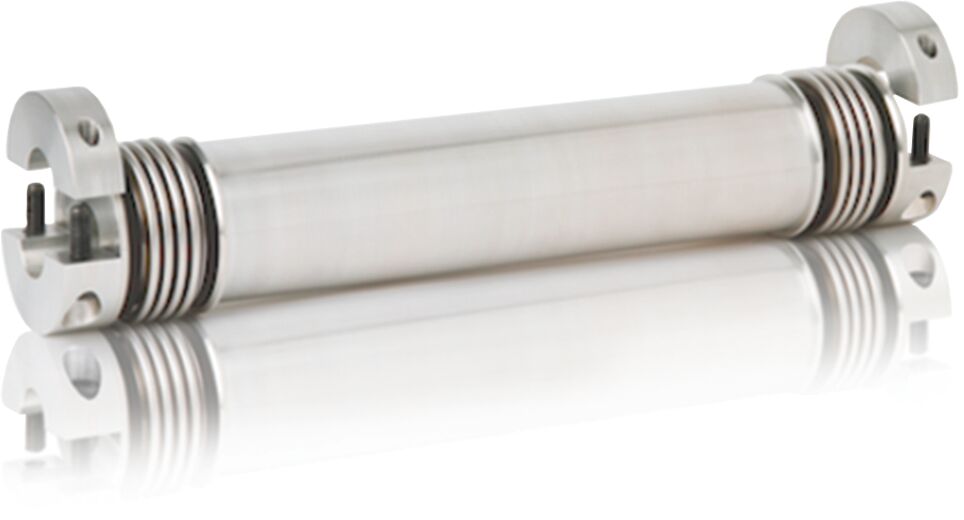

Bosch Rexroth Bosch Rexroth CONNECTING SHAFT CKR 15-110

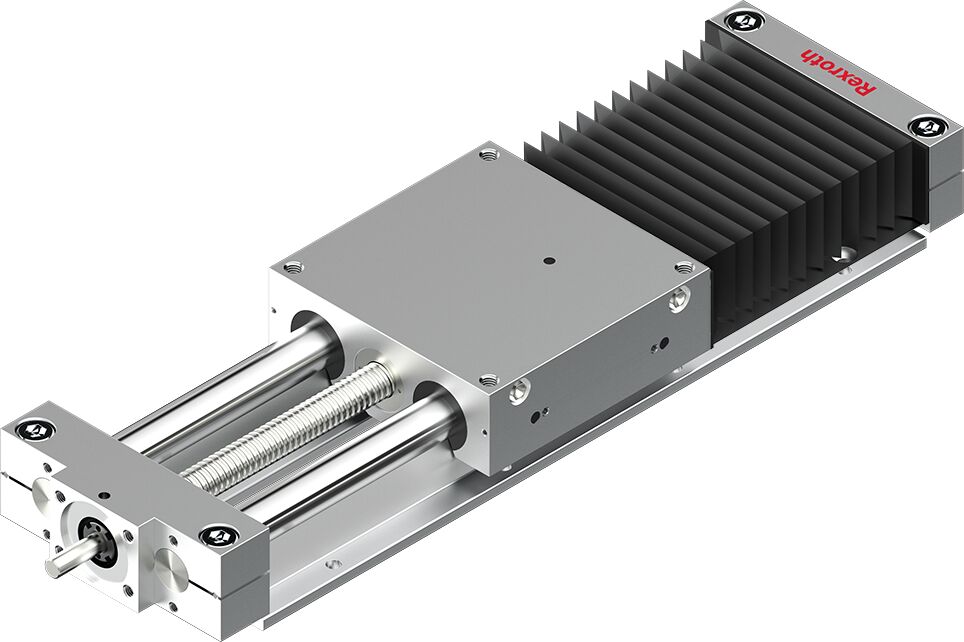

Bosch Rexroth Bosch Rexroth LINEAR SLIDE SOK-100-NN-1

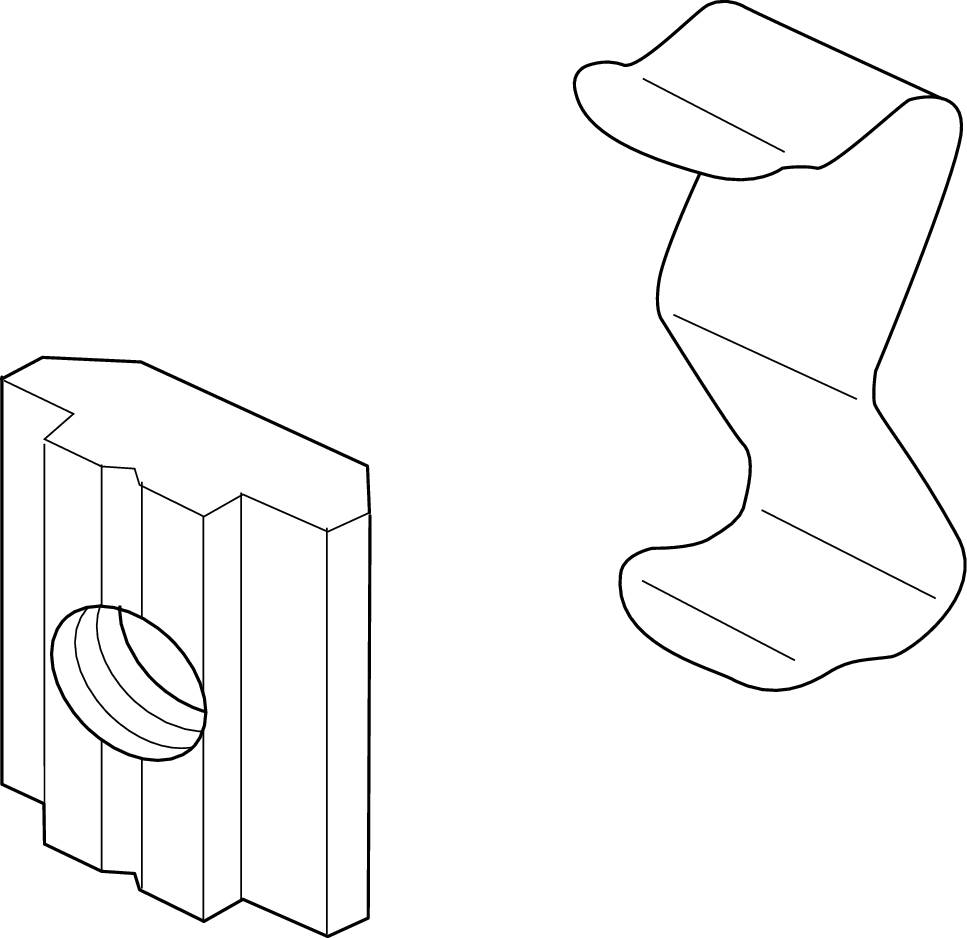

Bosch Rexroth Bosch Rexroth SLOTT. BLOCK STRIP M5 &

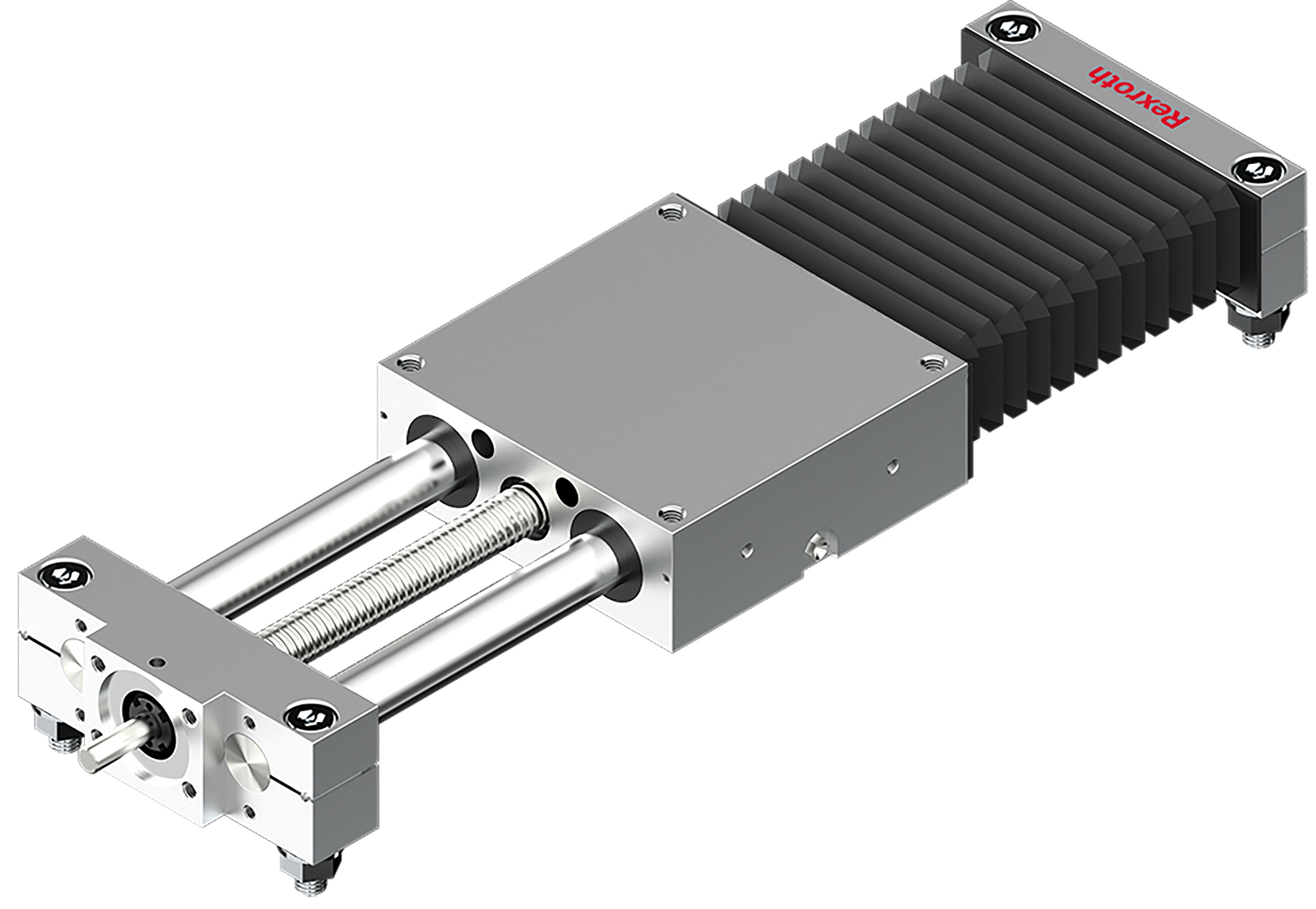

Bosch Rexroth Bosch Rexroth LINEAR SLIDE SGK-180-NN-1
