Beckhoff EtherCAT Box, 16-channel digital output, 24 V DC, 0.5 A, D-sub EP2816-0008
The EP2816-0008 EtherCAT Box is intended for processing digital/binary signals. It switches the binary control signals from the automation device to the actuators at the process level. The outputs process an output current of up to max. 0.5 A. A
| Approvals/markings | CE, UL |
|---|---|
| Auxiliary power current | typ. 20 mA + load |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Current consumption from US | 120 mA |
| Distributed clocks | yes |
| Electrical isolation | 500 V |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Load type | ohmic, inductive, lamp load |
| Max. output current | 0.5 A per channel, individually short-circuit proof, ∑ 4 A |
| Nominal output voltage | 24 V DC (-15%/+20%) |
| Number of outputs | 16 |
| Operating Temperature | -25…+60°C |
| Output connections | D-sub socket, 25-pin, UNC4-40 |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Protocol | EtherCAT |
| Short-circuit current | max. 1.5 A |
| Special Features | ideal for multi-pin connector valve terminals |
| Storage Temperature | -40…+85°C |
| Switching times | typ. TON: 60 µs, typ. TOFF: 300 µs |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Weight | approx. 165 g |
Frequently Asked Questions
How do I get pricing for EP2816-0008?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EP2816-0008?
EP2816-0008 is a Beckhoff part. KKM Solutions sources Beckhoff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of EP2816-0008?
Key specifications include Approvals/markings: CE, UL; Auxiliary power current: typ. 20 mA + load; Bus interface: 2 x M8 socket, 4-pin, a-coded, shielded; Current consumption from US: 120 mA. The full specification table on this page lists every published attribute for this part.
How quickly can EP2816-0008 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Beckhoff Beckhoff EtherCAT Box, 4-channel analog input, multi-function, ±10 V,…
Beckhoff Beckhoff EtherCAT Box, 4-channel relay output, 25 V AC,…
Beckhoff Beckhoff EtherCAT Box, 4-channel analog output, multi-function, ±10 V,…
Beckhoff Beckhoff EtherCAT Box, 16-channel digital combi, 24 V DC,…

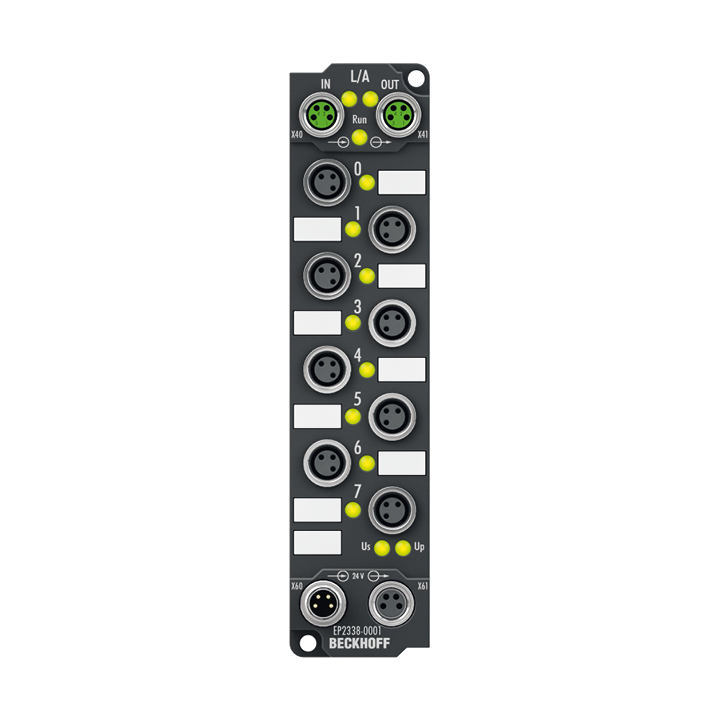

Beckhoff Beckhoff EtherCAT Box, 8-channel digital combi, 24 V DC,…
