Beckhoff EL6731 — EtherCAT Terminals
The PROFIBUS master terminal EL6731 supports the PROFIBUS protocol with all its features. Within an EtherCAT Terminal network, it enables the integration of any PROFIBUS devices. Thanks to the PROFIBUS chip developed in-house, the terminal is equipped
| Approvals/markings | CE, CCC, UL, ATEX, IECEx |
|---|---|
| Bit width in the process image | total max.: 1.4 kbyte input and 1.4 kbyte output data |
| Bus device | max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave |
| Current consumption E-bus | typ. 200 mA |
| Current consumption power contacts | – |
| Cycle time | differing DP cycle times per slave are possible using the CDL concept |
| Data transfer rates | 9.6 kbaud…12 Mbaud |
| Distributed clocks | yes |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Ex marking | ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc |
| Fieldbus | PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) |
| Hardware diagnostics | status LEDs |
| Interfaces | 1 x D-sub socket, 9-pin, galvanically decoupled |
| Number Of Channels | 1 |
| Operating Temperature | -25…+60°C |
| Protect. rating/installation pos. | IP20/variable |
| Relative Humidity | 95%, no condensation |
| Storage Temperature | -40…+85°C |
| Technology | PROFIBUS master/slave terminal |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Weight | approx. 70 g |
Frequently Asked Questions
How do I get pricing for EL6731?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EL6731?
EL6731 is a Beckhoff part. KKM Solutions sources Beckhoff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of EL6731?
Key specifications include Approvals/markings: CE, CCC, UL, ATEX, IECEx; Bit width in the process image: total max.: 1.4 kbyte input and 1.4 kbyte output data; Bus device: max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave; Current consumption E-bus: typ. 200 mA. The full specification table on this page lists every published attribute for this part.
How quickly can EL6731 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Beckhoff Beckhoff EtherCAT Terminal, communication interface, EtherCAT bridge, extended functions…
Beckhoff Beckhoff EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave EL6751

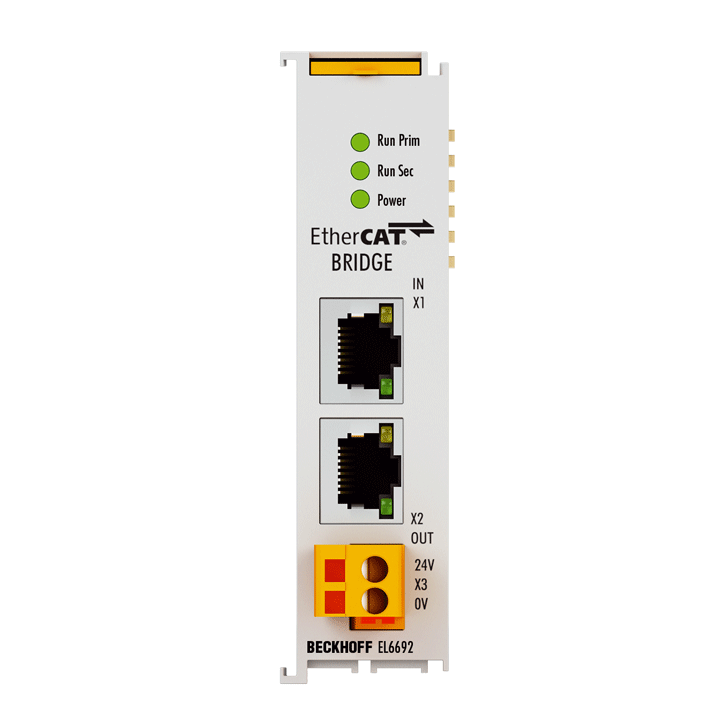

Beckhoff Beckhoff EtherCAT Terminal, communication interface, EtherCAT bridge EL6692
Beckhoff Beckhoff EtherCAT Terminal communication interface, TwinSAFE Logic EL6900

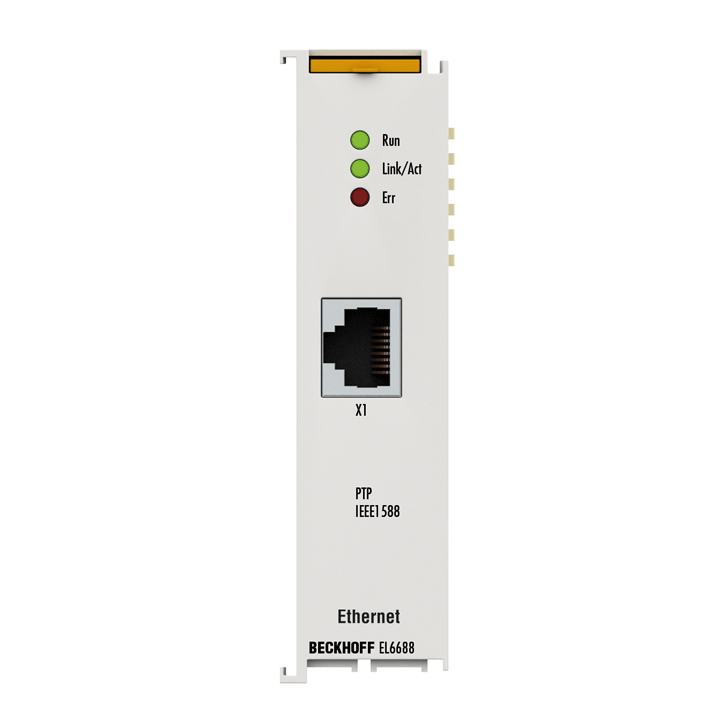

Beckhoff Beckhoff EtherCAT Terminal, 1-port communication interface, IEEE 1588/PTP, master/slave…
