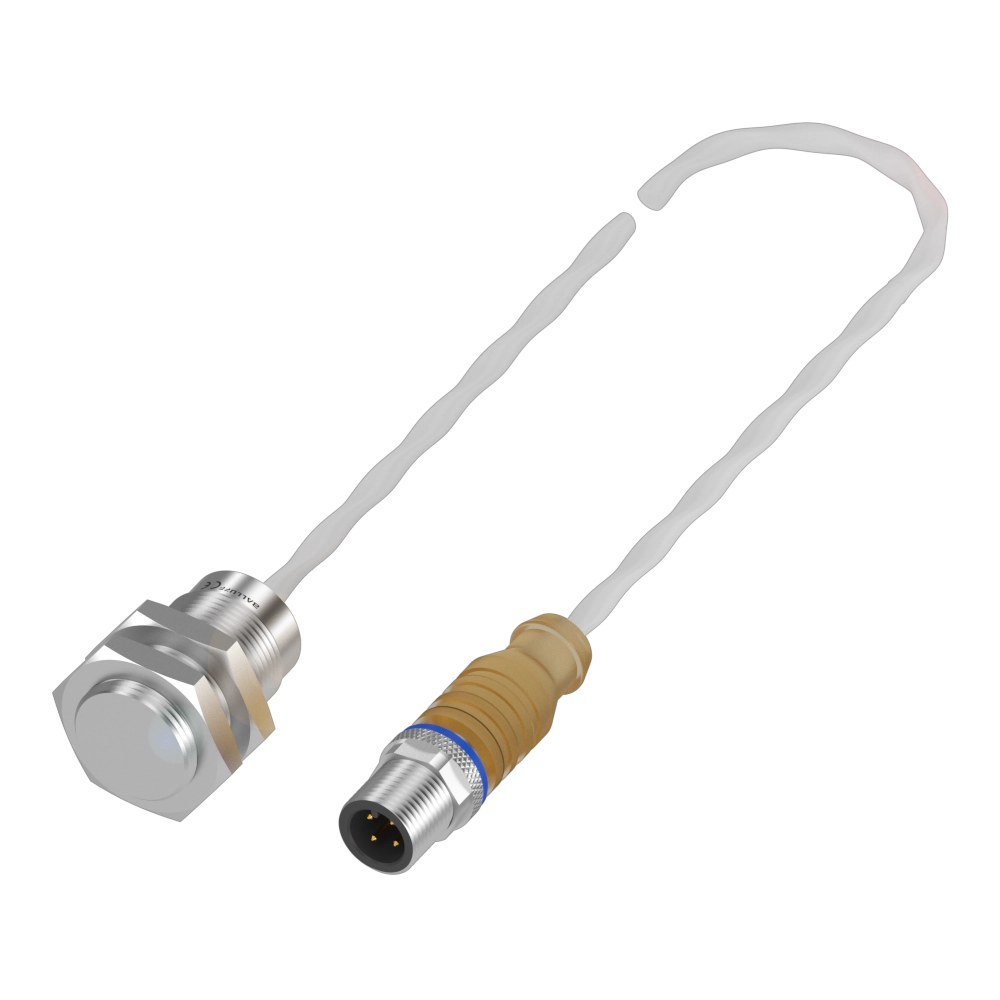

Balluff BES M18ED-PSC50B-GT05-T
BES05N4 (BES M18ED-PSC50B-GT05-T) - Temperature-rated inductive sensors - List price USA: 862.34 USD - Dimension: Ø 18 x 35 mm, Style Housing: M18x1, Installation: for flush mounting, Range: 5 mm, Switching output: PNP Normally open (NO), Switching frequency: 9 Hz, Housing material: Stainless steel, Material sensing surface: LCP, Connection: Connector, M12x1-Male, 4-pin, 5.0 m, PTFE, Operating voltage Ub: 10...30 VDC, Ambient temperature: 0...230 °C, IP rating: IP50, Approval/Conformity: CE, WEEE, UKCA - BALLUFF USA
| Ambient temperature | 0...230 °C |
|---|---|
| Approval/Conformity | CE, WEEE, UKCA |
| Connection | Connector, M12x1-Male, 4-pin, 5.0 m, PTFE |
| Dimension | Ø 18 x 35 mm |
| Housing material | Stainless steel |
| Installation | for flush mounting |
| IP Rating | IP50 |
| Material sensing surface | LCP |
| Operating voltage Ub | 10...30 VDC |
| Range | 5 mm |
| Style Housing | M18x1 |
| Switching frequency | 9 Hz |
| Switching output | PNP Normally open (NO) |
Frequently Asked Questions
How do I get pricing for BES05N4?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the BES05N4?
BES05N4 is a Balluff part. KKM Solutions sources Balluff components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of BES05N4?
Key specifications include Ambient temperature: 0...230 °C; Approval/Conformity: CE, WEEE, UKCA; Connection: Connector, M12x1-Male, 4-pin, 5.0 m, PTFE; Dimension: Ø 18 x 35 mm. The full specification table on this page lists every published attribute for this part.
How quickly can BES05N4 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

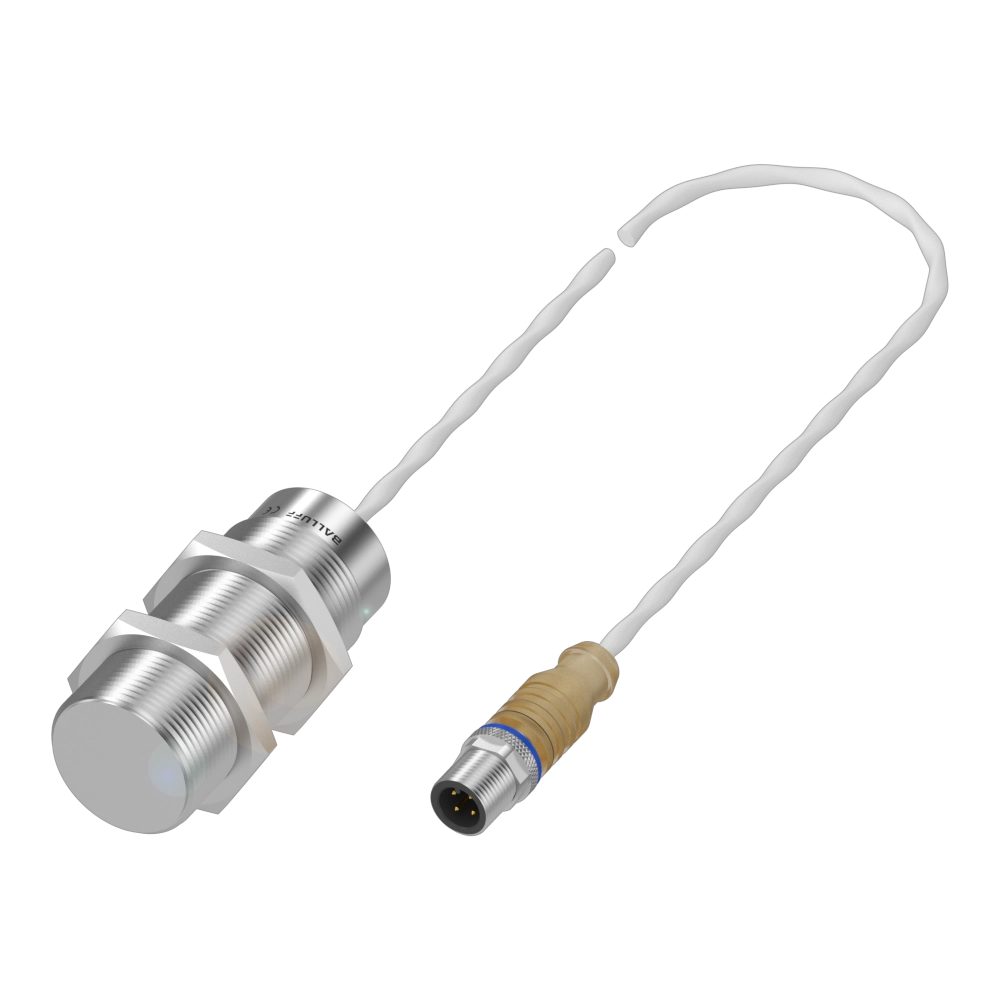

Balluff Balluff BES M30N1-PSC10B-GT05-T

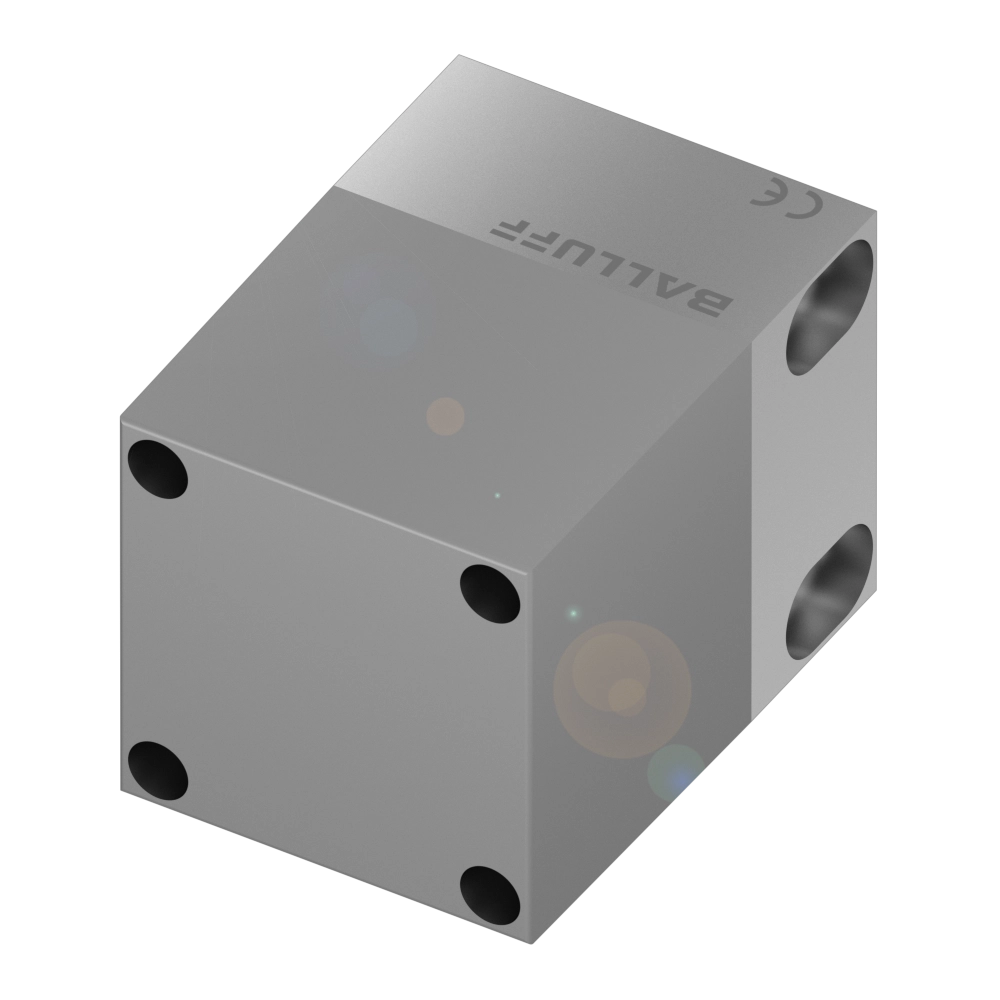

Balluff Balluff BES Q40KG-X20F-SZ03

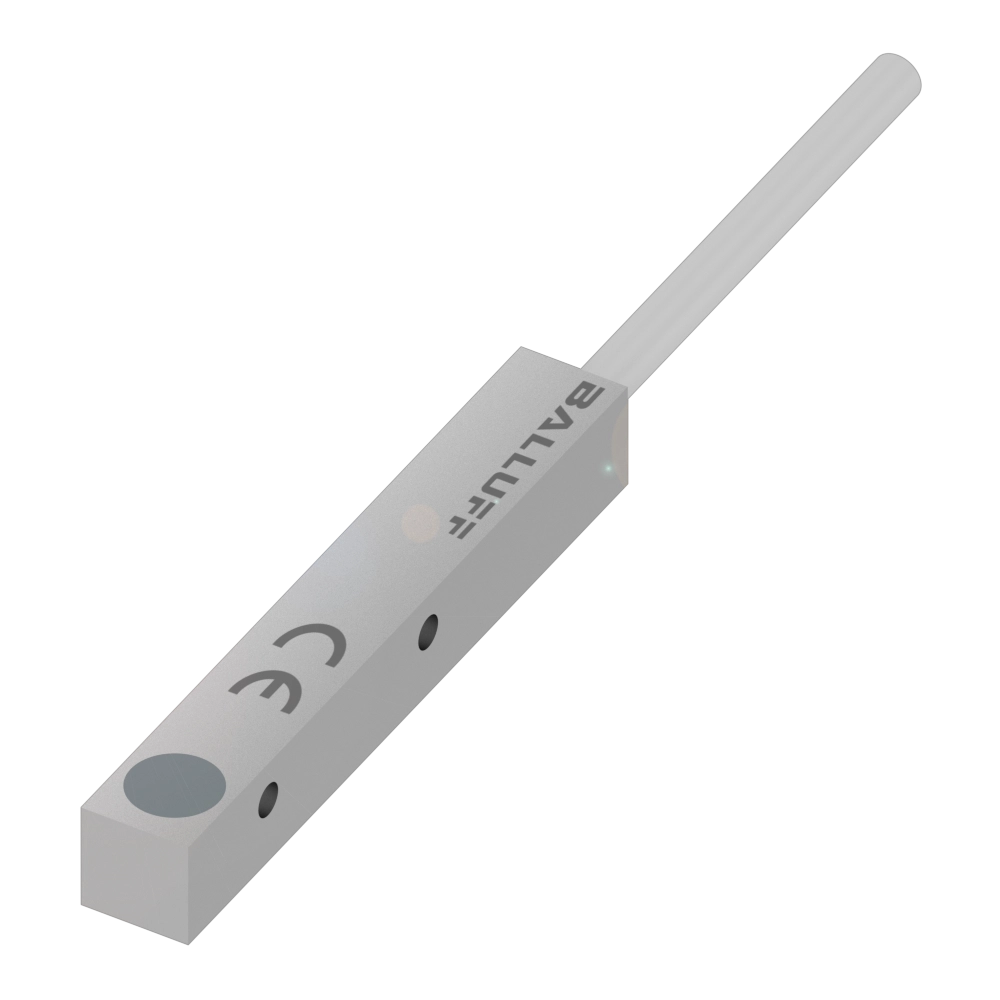

Balluff Balluff BES Q08EC-PSD20B-ES05

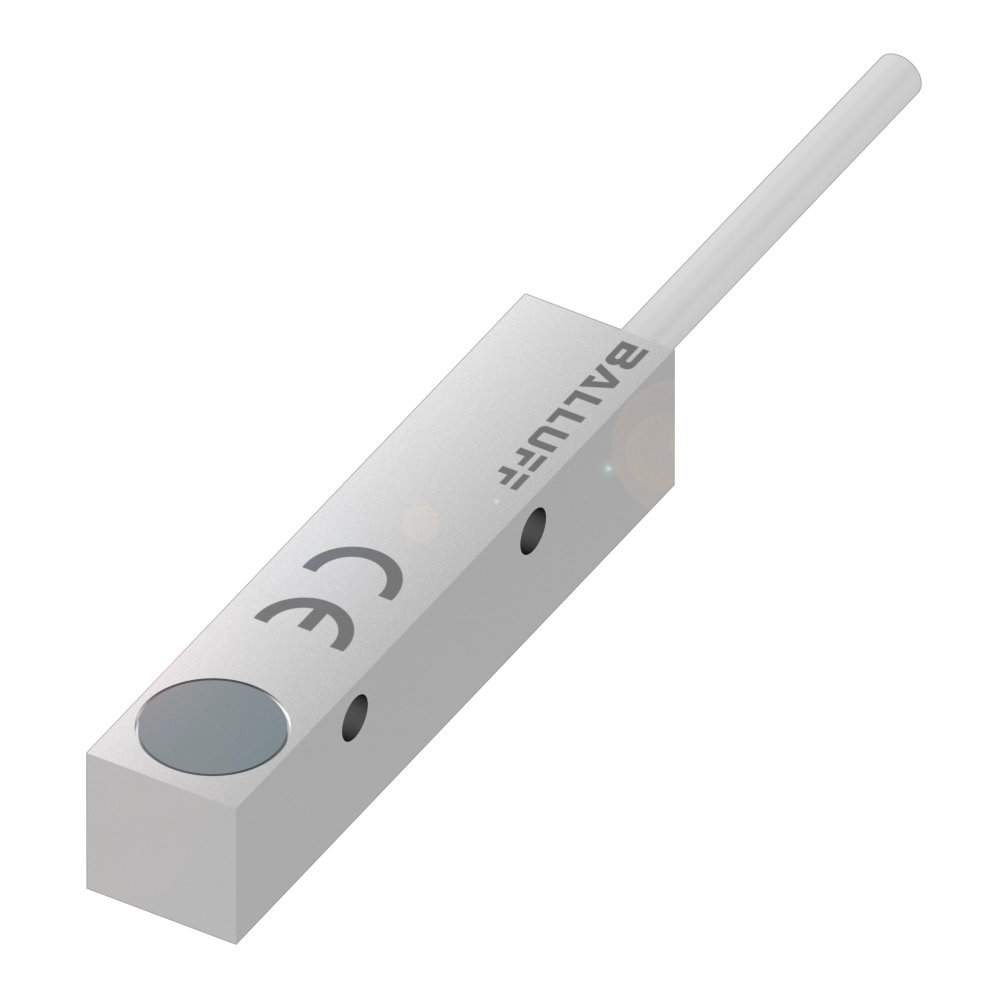

Balluff Balluff BES Q12EC-PSD40B-ES05
