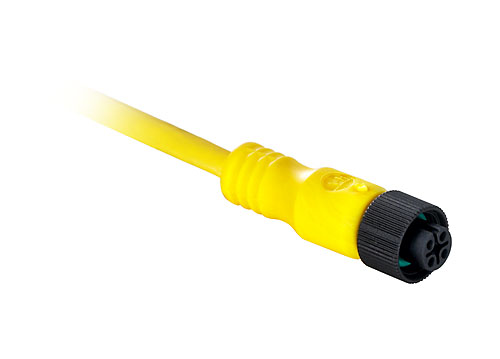

Allen-Bradley 889 DC Micro Cable 889D-F4NE-5
Allen-Bradley 889D-F4NE-5 - Circular Connection Cables - Cable length: 5000 mm; Lifecycle Status: Active; Build America, Buy America: No.
The Allen-Bradley 889D-F4NE-5 is part of the Circular Connection Cables range in our industrial catalog. The manufacturer's published data for this part number specifies Cable length: 5000 mm and Lifecycle Status: Active.
Published specifications for this part include Build America, Buy America: No; Repair Options Available: No; Number of poles: 4; Cable type: PVC cable, red, unshielded, 18 AWG; Length, approx: Connector: 50.8 mm (2.0 in) @ straight male; Material housing: Plastic; Height, approx: Connector: 31.8 mm (1.25 in) @ right angle male; Wire size: 18 AWG; Mounting method: Freely positionable; Product Type Feature: Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin; Material of contact surface: Gold; Number Of Pins: 4-pin. The complete technical table is shown in the Specifications tab on this page.
| Bend radius | 10 x diam |
|---|---|
| Build America, Buy America | No |
| Cable length | 5000 mm |
| Cable type | PVC cable, red, unshielded, 18 AWG |
| Diameter, approx | Connector: 14 mm (0.56 in) @ straight male |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 4-pin |
| Height, approx | Connector: 31.8 mm (1.25 in) @ right angle male |
| Jacket | PVC Cbl, Red, UnShld,PVC Cable, Red, 18 AWG |
| Length, approx | Connector: 50.8 mm (2.0 in) @ straight male |
| Lifecycle Status | Active |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 4-pin |
| Number of poles | 4 |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Repair Options Available | No |
| Second end conductors | Same as first end |
| Second End Connection | No Connector,Cable,No Connector,Cable - IEC Stndrd Color Code |
| Second end termination style | No connector |
| Second End Termination Type | Cable - IEC standard color code |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 18 AWG |
