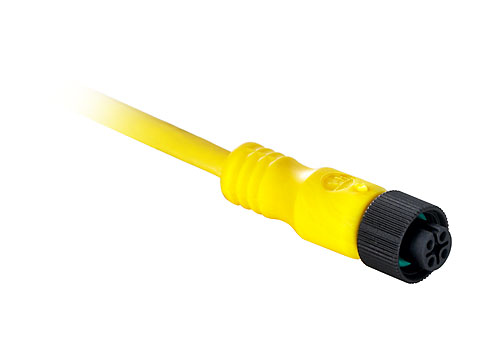

Allen-Bradley 889 DC Micro Cable 889D-F4LCDM-30
Allen-Bradley 889D-F4LCDM-30 - Circular Connection Cables - Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass; Operating Temperature: -20 °C; Cable length: 30000 mm.
The Allen-Bradley 889D-F4LCDM-30 is part of the Circular Connection Cables range in our industrial catalog. The manufacturer's published data for this part number specifies Material: Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass and Operating Temperature: -20 °C.
Published specifications for this part include Cable length: 30000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 4; Cable rating: UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant; Cable type: Allen-Bradley toughlink TPE or toughweld CPE yellow jacket, 18 or 22 AWG conductors, 300V; Length, approx: Connector: 50.8 mm (2.0 in) @ straight male; Material housing: Plastic; Height, approx: Connector: 31.8 mm (1.25 in) @ right angle male; Enclosure type rating: NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K; Wire size: 22 AWG. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 4A @ 250V |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable length | 30000 mm |
| Cable rating | UL AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 80°C @ 300V FT1, UV oil and water resistant |
| Cable type | Allen-Bradley toughlink TPE or toughweld CPE yellow jacket, 18 or 22 AWG conductors, 300V |
| Degree of protection (IP), mounted | IP69K |
| Diameter | 2 core cable: 5 mm (0.21 in), 3 core cable: 5 mm (0.21 in), 4 core cable: 5 mm (0.21 in), 5 core cable: 6.5 mm (0.25 in), 4 core cable (18 AWG): 6.5 mm (0.25 in) |
| Diameter, approx | Connector: 14 mm (0.56 in) @ straight male |
| Enclosure type rating | NEMA 6P, 1200 psi (8270 kPa) washdown, IP69K |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| Height, approx | Connector: 31.8 mm (1.25 in) @ right angle male |
| Jacket | PVC Cbl, Light Blue, UnShld,PVC Cable, Blue, 22 AWG |
| Length, approx | Connector: 50.8 mm (2.0 in) @ straight male |
| Lifecycle Status | Active |
| Material | Coupling nut: Epoxy-coated Zinc, Molded oil-resistant PUR, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number Of Pins | 4-pin |
| Number of poles | 4 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 250 V |
| Repair Options Available | No |
| Screw-in thread | M12 |
| Second end conductors | Same as first end |
| Second End Connection | Male, Straight (ext. threads),DC Micro,Straight, Male(Ext. Threads),DC Micro (M12) |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | DC micro (M12) |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 22 AWG |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889D-F4LCDM-30?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-F4LCDM-30?
889D-F4LCDM-30 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889D-F4LCDM-30?
Key specifications include Assembly rating: 4A @ 250V; Bend radius: 10 x diam; Build America, Buy America: No; Cable length: 30000 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889D-F4LCDM-30 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
