Allen-Bradley 889 DC Micro Cable 889D-F4ABPM-15
Allen-Bradley 889D-F4ABPM-15 - Circular Connection Cables - Material: Coupling nut: black Epoxy-coated Zinc, DC micro, Coupling nut: Nickel-plated Brass, pico, Molded oil-resistant PUR, DC micro, Molded oil resistant TPE, pico, Contact: Gold over Nickel-plated Brass; Operating Temperature: -20 °C; Cable length: 15000 mm.
The 889D-F4ABPM-15 from Allen-Bradley is listed under Circular Connection Cables in our catalog. The manufacturer's published data for this part number specifies Material: Coupling nut: black Epoxy-coated Zinc, DC micro, Coupling nut: Nickel-plated Brass, pico, Molded oil-resistant PUR, DC micro, Molded oil resistant TPE, pico, Contact: Gold over Nickel-plated Brass and Operating Temperature: -20 °C.
Published specifications for this part include Cable length: 15000 mm; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Number of poles: 4; Cable rating: UL CM AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 105°C @ 300V FT1; Cable type: Oil-resistant yellow PVC jacket, 24 AWG conductors, 300V; Length, approx: Connector: 47 mm (1.85 in) @ straight female; Special characteristic: Standard; Material housing: Plastic; Enclosure type rating: Screw-type: IP67, Snap-on type: IP65; Wire size: 24 AWG. The complete technical table is shown in the Specifications tab on this page.
| Assembly rating | 4A @ 60V AC/75V DC |
|---|---|
| Bend radius | 10 x diam |
| Build America, Buy America | No |
| Cable length | 15000 mm |
| Cable rating | UL CM AWM style 2661 VW-1 105°C @ 300V, CSA AWM A/B I/II 105°C @ 300V FT1 |
| Cable type | Oil-resistant yellow PVC jacket, 24 AWG conductors, 300V |
| Degree of protection (IP), mounted | IP67 |
| Diameter | 3 core cable = 4.6 mm (0.18 in) 4 core cable = 4.6 mm (0.18 in) |
| Enclosure type rating | Screw-type: IP67, Snap-on type: IP65 |
| First End Connection | Female, Straight (int threads),Female, Straight (Int Threads) |
| First end connector style | Female, straight (internal threads, except mini receptacles) |
| First End Number of pins | 4-pin |
| Jacket | PVC Cbl, Yellow, UnShld,PVC Cable, Yellow, 24 AWG |
| Length, approx | Connector: 47 mm (1.85 in) @ straight female |
| Lifecycle Status | Active |
| Material | Coupling nut: black Epoxy-coated Zinc, DC micro, Coupling nut: Nickel-plated Brass, pico, Molded oil-resistant PUR, DC micro, Molded oil resistant TPE, pico, Contact: Gold over Nickel-plated Brass |
| Material housing | Plastic |
| Material of contact surface | Gold |
| Mounting method | Freely positionable |
| Number of poles | 4 |
| Operating Temperature | -20 °C |
| Product Type Feature | Standard- Epoxy coated Zinc for DC micro,AC micro, mini QD with 2-6 pin, Standard-Nickel plated Brass for pico, Standard-Aluminum with clear sealant for mini QD with 7-12 pin |
| Rated current In | 4 A |
| Rated voltage | 75 V |
| Repair Options Available | No |
| Screw-in thread | M8 |
| Second end conductors | Same as first end |
| Second End Connection | Male, Straight (ext. threads),Pico,Straight, Male(Ext. Threads),Pico (M8) |
| Second end termination style | Straight, male (external threads) |
| Second End Termination Type | Pico M8 |
| Special characteristic | Standard |
| Type of plug-in contact, inner side | Female (bus) |
| Wire size | 24 AWG |
| With shield connection | false |
Frequently Asked Questions
How do I get pricing for 889D-F4ABPM-15?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 889D-F4ABPM-15?
889D-F4ABPM-15 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 889D-F4ABPM-15?
Key specifications include Assembly rating: 4A @ 60V AC/75V DC; Bend radius: 10 x diam; Build America, Buy America: No; Cable length: 15000 mm. The full specification table on this page lists every published attribute for this part.
How quickly can 889D-F4ABPM-15 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4ABPM-1
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4ABPM-2
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4ABPM-0M6
Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4AC-23

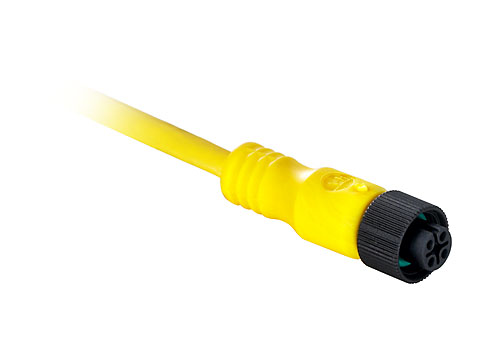

Allen-Bradley Allen-Bradley 889 DC Micro Cable 889D-F4GCDE-0M5
