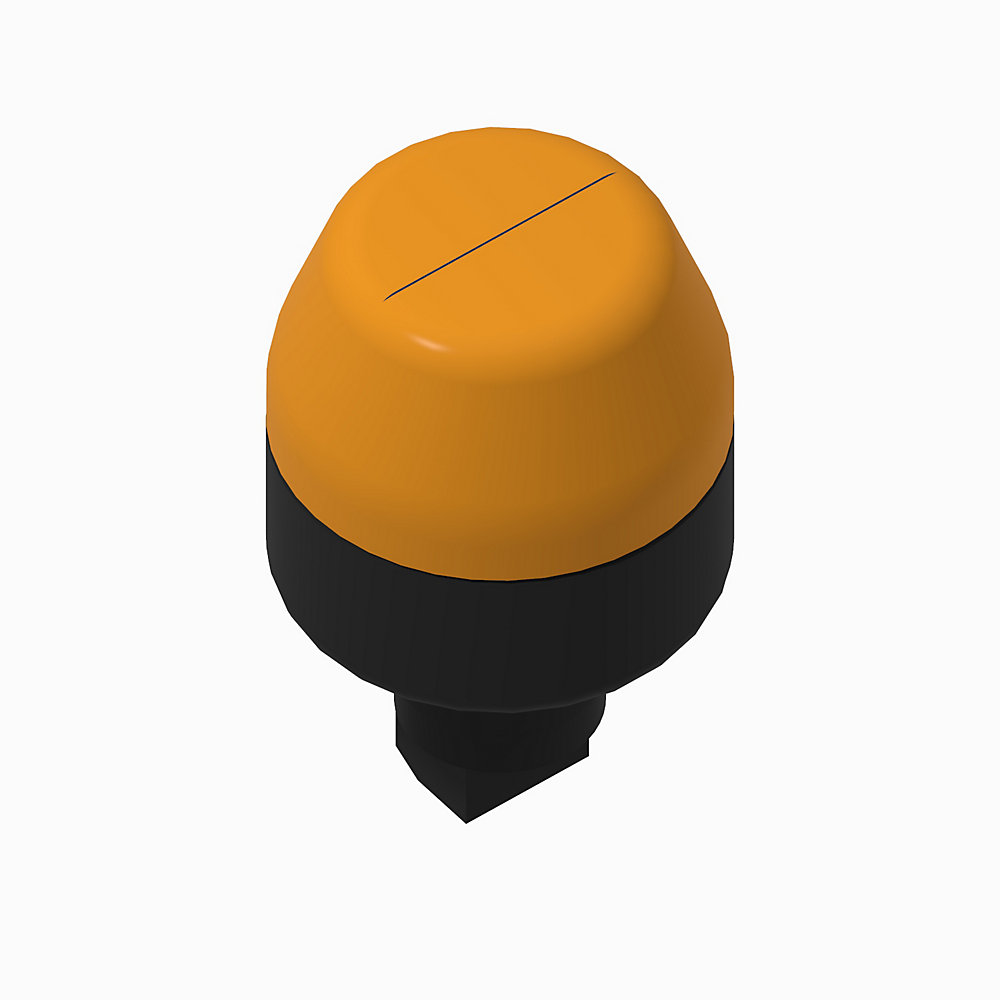

Allen-Bradley 2 Ckt Panel Mount Alarm 2 Ckt Panel Moun 855PD-B10MEH4522
Allen-Bradley 855PD-B10MEH4522 - industrial components - Height: 72 mm mm; Function: Two-color, half-lens illumination with barrier; Weight: 40 g.
This listing covers the Allen-Bradley 855PD-B10MEH4522, a part number in the industrial components category. The manufacturer's published data for this part number specifies Height: 72 mm mm and Function: Two-color, half-lens illumination with barrier.
Key manufacturer data on file for this item includes Weight: 40 g; Operating Temperature: -25 °F; Storage Temperature: -25 °F; Nominal current: 34mA @ 120V AC, 50/60 Hz; Size: 45 mm diam; Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Terminals: Plug-in terminal block, up to 2.5 mm² (14 AWG), IP2X; Mounting: Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit (catalog number 855P-AHA1). The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| First color selection | Red |
| Flashing frequency | 2 Hz |
| Function | Two-color, half-lens illumination with barrier |
| Height | 72 mm mm |
| Housing base material | Polycarbonate, black |
| Housing Color | Black |
| Housing lenses | Polycarbonate |
| Lamp type | LED |
| Lifecycle Status | Discontinued |
| List of degrees of protection (IP) | IP65, IP2X |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Mounting | Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit (catalog number 855P-AHA1) |
| Mounting hole | 22.5 mm round mounting hole |
| Mounting nut torque | 1.7 nm |
| Nominal current | 34mA @ 120V AC, 50/60 Hz |
| Nominal Voltage | 120 V |
| Operating Temperature | -25 °F |
| Repair Options Available | No |
| Second color selection | Amber |
| Size | 45 mm diam |
| Steady/flashing light | Externally by terminal connection |
| Storage Temperature | -25 °F |
| Suitable for ceiling mounting | false |
| Suitable for wall mounting | false |
| Supply voltage range | ±10% |
| Terminals | Plug-in terminal block, up to 2.5 mm² (14 AWG), IP2X |
| Turn-ON leakage current | ≥3 mA |
| Type of current | AC |
| Weight | 40 g |
| With contact | false |
Frequently Asked Questions
How do I get pricing for 855PD-B10MEH4522?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855PD-B10MEH4522?
855PD-B10MEH4522 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855PD-B10MEH4522?
Key specifications include Build America, Buy America: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; First color selection: Red. The full specification table on this page lists every published attribute for this part.
How quickly can 855PD-B10MEH4522 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
