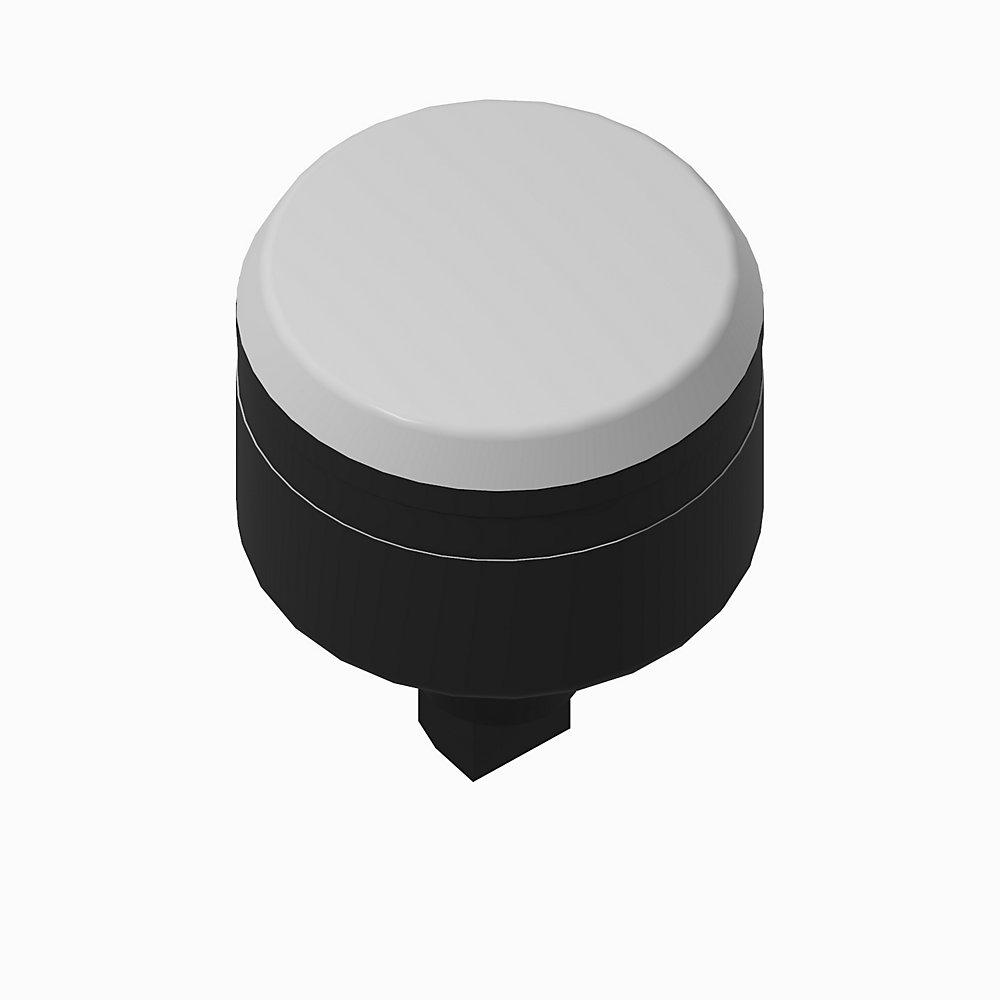

Allen-Bradley 2 Ckt Panel Mount Alarm 2 Ckt Panel Moun 855PD-B10LEC1722
Allen-Bradley 855PD-B10LEC1722 - industrial components - Height: 82 mm mm; Function: Combined sounder with LED beacon; Weight: 85 g.
The 855PD-B10LEC1722 from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Height: 82 mm mm and Function: Combined sounder with LED beacon.
The specification set recorded for this part number covers Weight: 85 g; Operating Temperature: -25 °C; Storage Temperature: -25 °C; Nominal current: 52mA @ 120V AC, 50/60 Hz; Size: 65 mm diam; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP65; Degree of protection (NEMA): 4X; Terminals: Plug-in terminal block, up to 2.5 mm2 AWG), IP2X; Mounting: Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit. The complete technical table is shown in the Specifications tab on this page.
| Base material | Polycarbonate, black |
|---|---|
| Build America, Buy America | No |
| Colour housing | Black |
| Continuous sound type | true |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 4X |
| First lens color/sound selection | Sound |
| Frequency sound signal | 3.3 khz |
| Function | Combined sounder with LED beacon |
| Height | 82 mm mm |
| Lamp type | LED |
| Lens color | Clear |
| Lens Material | Polycarbonate |
| Lifecycle Status | Active |
| List of degrees of protection (NEMA) | 4, 4X, 13 |
| Loudness | 103 dBb |
| Mounting | Central mounting for bore holes 22 mm or 30.5 mm with hole adapter kit |
| Mounting hole size | 22.5 mm round mounting hole |
| Mounting nut torque | 1.7 nm |
| Nominal current | 52mA @ 120V AC, 50/60 Hz |
| Nominal Voltage | 120 V |
| Operating Temperature | -25 °C |
| Repair Options Available | No |
| Second lens color selection | Clear |
| Size | 65 mm diam |
| Sound level adjustment | Stepless |
| Sound level, max | Average: 103 dBa @ 1 m (3.3 ft) |
| Sound level, min | <85 dB |
| Sound selection | Externally by terminal connection |
| Storage Temperature | -25 °C |
| Suitable for ceiling mounting | false |
| Supply voltage range | ±10% |
| Terminals | Plug-in terminal block, up to 2.5 mm2 AWG), IP2X |
| Turn-ON leakage current | ≥3 mA |
| Type of current | AC |
| Weight | 85 g |
| With contact | false |
Frequently Asked Questions
How do I get pricing for 855PD-B10LEC1722?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 855PD-B10LEC1722?
855PD-B10LEC1722 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 855PD-B10LEC1722?
Key specifications include Base material: Polycarbonate, black; Build America, Buy America: No; Colour housing: Black; Continuous sound type: true. The full specification table on this page lists every published attribute for this part.
How quickly can 855PD-B10LEC1722 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
