Allen-Bradley Push-Pull Single Unit 800MR PB 800MR-FXTD2K

Brand: Allen-Bradley SKU: 800MR-FXTD2K
Ships Same Day* Worldwide Shipping

Allen-Bradley 800MR-FXTD2K - industrial components - Operating Temperature: 0 °C; Storage Temperature: -40 °C; Lifecycle Status: Discontinued.

The 800MR-FXTD2K from Allen-Bradley is listed under industrial components in our catalog. The manufacturer's published data for this part number specifies Operating Temperature: 0 °C and Storage Temperature: -40 °C.

The specification set recorded for this part number covers Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Shock: 100 G; Vibration: 10 G; Humidity: 50% @ 40°C (104 °F); Operator Type: Push-pull single unit; Contact block configuration: 1 NC; Contact block operational voltage, max: AC 300; Contact block termination wire range: Accepts two #12 AWG (large screw); Contact block thermal current rating: 10 A; Contact block utilization category (AC): 300V @ 150V AC, 0.15A @ 8VA (logic reed). See the Specifications tab on this page for the full technical table.

Build America, Buy America No
Contact block configuration 1 NC
Contact block durability 750000 ( standard contact), 200000 (logic reed)
Contact block mounting style Latch catridge
Contact block operational voltage, max AC 300
Contact block termination wire range Accepts two #12 AWG (large screw)
Contact block thermal current rating 10 A
Contact block type NC
Contact block utilization category (AC) 300V @ 150V AC, 0.15A @ 8VA (logic reed)
Contact block utilization category (DC) 30V @ 0.06A, 1.8VA (logic reed)
Enclosure compatibility Type 13, IEC I44 IP65 oiltight
Hole diameter 22.5 mm
Humidity 50% @ 40°C (104 °F)
Illumination lamp type Non-illuminated
Illumination module input voltage Non-illuminated
Illumination module type Non-illuminated
Lifecycle Status Discontinued
Operating Temperature 0 °C
Operator cap color (lens) No cap - non-illuminated
Operator cap/button shape Round
Operator mechanical design life (cycles, min.) 1000000
Operator Type Push-pull single unit
Repair Options Available No
Shock 100 G
Storage Temperature -40 °C
Suitable for illumination false
Termination style Large screw
Vibration 10 G
(function () { var btn = document.getElementById('kkm-ql-add'); if (!btn) { return; } btn.addEventListener('click', function () { var KEY = 'kkm_quote_list', l = []; try { l = JSON.parse(localStorage.getItem(KEY) || '[]'); if (!Array.isArray(l)) { l = []; } } catch (e) {} var sku = btn.dataset.sku, hit = null; l.forEach(function (it) { if (it.sku === sku) { hit = it; } }); if (hit) { hit.qty = (hit.qty || 1) + 1; } else { l.push({ sku: sku, name: btn.dataset.name, qty: 1 }); } try { localStorage.setItem(KEY, JSON.stringify(l)); } catch (e) {} window.kkmSyncQuoteSession(l); btn.textContent = hit ? 'In quote list ✓ (qty ' + hit.qty + ')' : 'Added to quote list ✓'; document.getElementById('kkm-ql-view').hidden = false; var b = document.getElementById('kkm-ql-count'); if (b) { b.textContent = l.length; b.hidden = false; } }); })();

Frequently Asked Questions

How do I get pricing for 800MR-FXTD2K?

KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.

Who manufactures the 800MR-FXTD2K?

800MR-FXTD2K is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.

What are the key specifications of 800MR-FXTD2K?

Key specifications include Build America, Buy America: No; Contact block configuration: 1 NC; Contact block durability: 750000 ( standard contact), 200000 (logic reed); Contact block mounting style: Latch catridge. The full specification table on this page lists every published attribute for this part.

How quickly can 800MR-FXTD2K ship?

In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.

Related Products

800MR-FXTA Allen-Bradley

Allen-Bradley Push-Pull Single Unit 800MR PB 800MR-FXTA

SKU: 800MR-FXTA
Same-day dispatch*

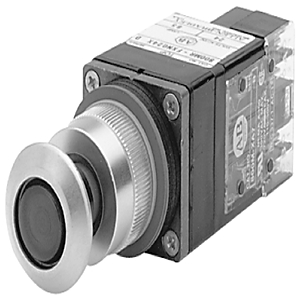

 800MR-FXTP16X Allen-Bradley
