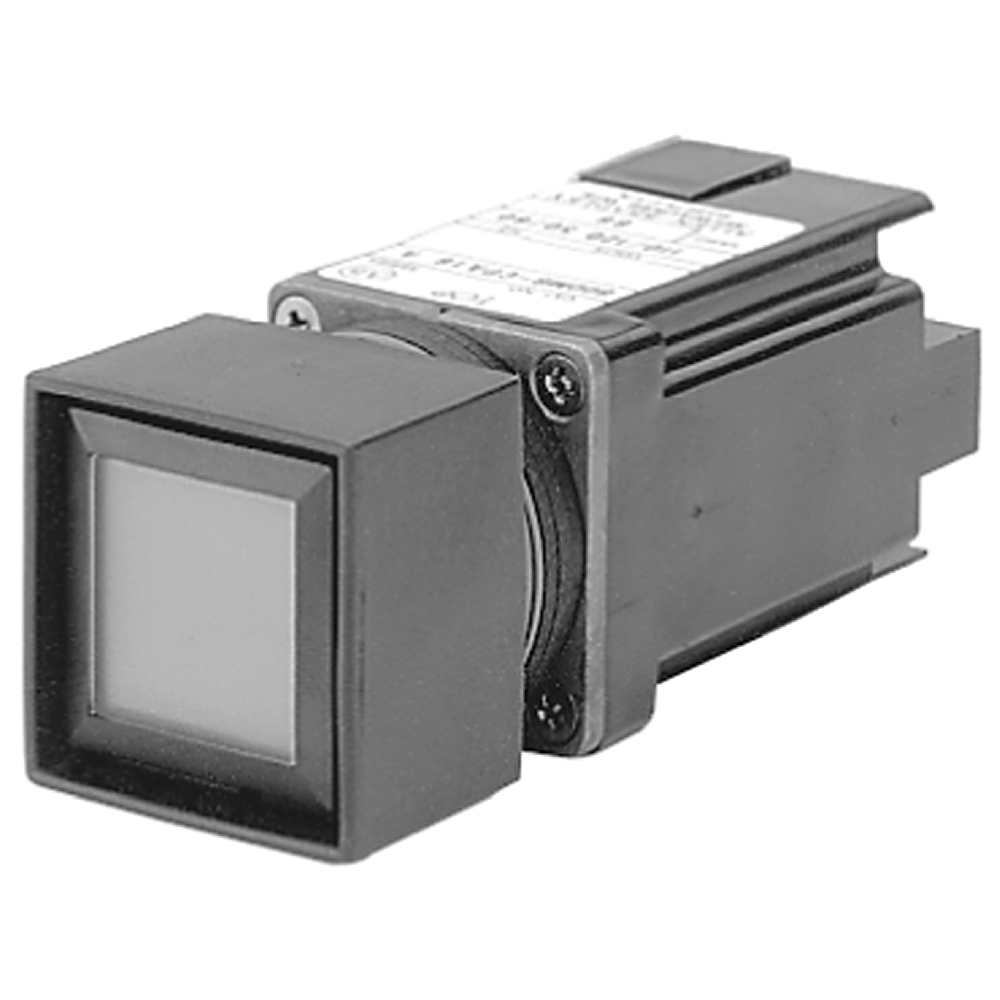

Allen-Bradley No Lens Specified 22.5 mm Square PB 800MB-CPA16XA2K
Allen-Bradley 800MB-CPA16XA2K - industrial components - Operating Temperature: 0 °C; Storage Temperature: -40 °C; Lifecycle Status: Discontinued.
This listing covers the Allen-Bradley 800MB-CPA16XA2K, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: 0 °C and Storage Temperature: -40 °C.
Published specifications for this part include Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Shock: 100 G; Vibration: 10 G; Humidity: 50% @ 40°C (104 °F); Operator Type: Push button; Contact block configuration: 2 NO; Contact block operational voltage, max: AC 300; Contact block termination wire range: Accepts two #12 AWG (large screw); Contact block thermal current rating: 10 A; Contact block utilization category (AC): 300V @ 150V AC, 0.15A @ 8VA (logic reed). The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Contact block configuration | 2 NO |
| Contact block durability | 750000 ( standard contact), 200000 (logic reed) |
| Contact block mounting style | Latch catridge |
| Contact block operational voltage, max | AC 300 |
| Contact block termination wire range | Accepts two #12 AWG (large screw) |
| Contact block thermal current rating | 10 A |
| Contact block type | false |
| Contact block utilization category (AC) | 300V @ 150V AC, 0.15A @ 8VA (logic reed) |
| Contact block utilization category (DC) | 30V @ 0.06A, 1.8VA (logic reed) |
| Enclosure compatibility | Type 13, IEC I44 IP65 oiltight |
| Hole diameter | 22.5 mm |
| Humidity | 50% @ 40°C (104 °F) |
| Illumination lamp type | Incandescent |
| Illumination module input voltage | 110...120V AC transformer |
| Illumination module mounting style | Latch catridge |
| Illumination module type | Incandescent |
| Lifecycle Status | Discontinued |
| Operating Temperature | 0 °C |
| Operator cap color (lens) | No lens or insert packet |
| Operator cap/button shape | Square |
| Operator construction/material | Plastic / metal |
| Operator function | Transformer type flush backlit |
| Operator mechanical design life (cycles, min.) | 1000000 |
| Operator Type | Push button |
| Repair Options Available | No |
| Shock | 100 G |
| Storage Temperature | -40 °C |
| Suitable for illumination | true |
| Termination style | Large screw |
| Vibration | 10 G |
Frequently Asked Questions
How do I get pricing for 800MB-CPA16XA2K?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 800MB-CPA16XA2K?
800MB-CPA16XA2K is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 800MB-CPA16XA2K?
Key specifications include Build America, Buy America: No; Contact block configuration: 2 NO; Contact block durability: 750000 ( standard contact), 200000 (logic reed); Contact block mounting style: Latch catridge. The full specification table on this page lists every published attribute for this part.
How quickly can 800MB-CPA16XA2K ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
