Allen-Bradley NEMA Size 0 Contactor 300-AOQJ9310
Allen-Bradley 300-AOQJ9310 - industrial components - Function: Energy-saving contactor; Weight: AC/DC (electronic): 0.43 kg (0.95 lbs.); Ambient temperature: Storage range: -55...80 °C (-67...176 °F).
The Allen-Bradley 300-AOQJ9310 is part of the industrial components range in our industrial catalog. The manufacturer's published data for this part number specifies Function: Energy-saving contactor and Weight: AC/DC (electronic): 0.43 kg (0.95 lbs.).
Sizes 0...3: 3 power poles with internal N.O. or N.C. auxiliary contact or 4 power poles., Sizes 1...3: 3 power poles with side mounted N.O. / N.C. auxiliary contact or 4 power poles, Sizes 4...8: 3 main poles with 2 auxiliary contacts (1 N.O. and 1 N.C.)
The specification set recorded for this part number covers Ambient temperature: Storage range: -55...80 °C (-67...176 °F); Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Type of electrical connection of main circuit: Screw connection; Voltage type for actuating: DC; Switching frequency, max: 600 ops/hr, AC-1; Number of auxiliary contacts as normally open contact: 1; Number of auxiliary contacts as normally closed contact: 0; Rated control supply voltage at DC: 0 V; Rated isolation voltage (Ui): 690V per IEC; Protection class: Contactor main contact: IP2X. The complete technical table is shown in the Specifications tab on this page.
| Altitude, max | 2000 m of installation site |
|---|---|
| Ambient temperature | Storage range: -55...80 °C (-67...176 °F) |
| Available short circuit ampere | 65,000A @ 480V max, circuit breaker, RMS symmetrical |
| Build America, Buy America | No |
| Climatic withstand | Category B according to IEC 60947-1, annex Q |
| Coil | Electronic |
| Coil operating limits, dropout | 30...60% x voltage @ 50/60 Hz |
| Coil operating limits, pick-up | 85...10% x voltage @ 50/60 Hz |
| Contacts | Sizes 0...3: 3 power poles with internal N.O. or N.C. auxiliary contact or 4 power poles., Sizes 1...3: 3 power poles with side mounted N.O. / N.C. auxiliary contact or 4 power poles, Sizes 4...8: 3 main poles with 2 auxiliary contacts (1 N.O. and 1 N.C.) |
| Continuous ampere rating | 3-poles: 18 A |
| DIN fuses (gG) current rating | Type 2 (per IEC 60947-4-1): 32A @ 400V, 100 kA available fault current |
| Electromagnetic compatibility | IEC 60947-1 - Environment A and B |
| Features | Compact size, Sizes 00...5: AC/DC electronic coil with optional PLC interface, Sizes 6...8: AC/DC with PLC interface, Integrated surge suppression, Panel or DIN Rail mountable, Finger safe, Complete range of accessories, Meets global standards, Consists o |
| FLA | 25A @ 600V, 3-phase per UL/CSA HVAC applications |
| Function | Energy-saving contactor |
| Fuse type | H, J, R |
| General purpose current (enclosed) | 16A @ 600V per UL/CSA |
| Heat dissipation | 4.7 W |
| High energy efficient coil, hold-in | 1.7 W @ 24V DC |
| High energy efficient coil, pick-up | 6 W @ 24V DC |
| Horsepower rating, max | 3-poles: 5Hp @ 575V, three-phase, full-load current must not exceed continuous Aere rating (60 Hz) |
| Humidity | Non-condensing: 5...95% |
| Lifecycle Status | Active |
| LRA | 150 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications |
| Main current circuit resistance | 0.46 mΩ |
| MCCB current rating | Type 2 (per IEC 60947-4-1): 28A @ 400V, 70 kA available fault current |
| Mechanical life | 13 mons of ops |
| NEMA size | 00...8 |
| Number of auxiliary contacts as normally closed contact | 0.000000 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts, max | 8 |
| Operating limits, dropout | (≤0.60) x Us @ DC control |
| Operating limits, pick-up | (0.80...1.1) x Us @ DC control |
| Operating position | Vertical |
| Operating time, closing delay | 15 ms |
| Operating time, drop-out | 10 ms |
| Operating time, opening delay | 10 ms |
| Operating time, pick-up | 15 ms |
| Operating volt amperes | 8VA @ 50/60 Hz, sealed |
| Optional accessories | Side- or front-mount auxiliary contacts, Mechanical interlocks, Terminal lugs, Terminal shields, Connecting bars |
| Power dissipation | 1 W per pole at Ie, AC-1, 400V |
| Protection class | Contactor main contact: IP2X |
| Rated control supply voltage at DC | 0 V |
| Rated impulse voltage withstand (Uimp) | 6 kV |
| Rated isolation voltage (Ui) | 690V per IEC |
| Rated operational current (Ie) | 9A @ 690V, Star-Delta starting (50 Hz) |
| Rated operational current and power | 7.60A @ 460V AC, 500000 electrical ops, 3-phase per UL/CSA elevator duty |
| Rated operational current and power (enclosed) | 9.6 A @ 220-240V, 3-phase per UL/CSA |
| Rated operational power (Pe) | 7.5 kW @ 690V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F) |
| Rated voltage (Ue) | 24V @ 48V, 110V @ 220V, 440V DC |
| Repair Options Available | No |
| Required torque | Load: 22 lbin |
| Shock resistance | IEC 60068-2-27 |
| Short time withstand (Icw) | 3-pole: 80A @ 30s (40 °C) |
| Switching frequency, max | 600 ops/hr, AC-1 |
| Switching of DC loads | 3-poles in series: 27A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C) |
| Switching of lighting loads | Tungsten lA: 25A @ 600V, 3-phase (break all lines) per UL/CSA |
| Switching of power transformers | Apparent power: 9 kVA @ 400V, AC-6a @ 50Hz (n = 30) |
| Total power dissipation | 2.6 W at Ie, AC-3, 400V, AC/DC control (120-250V) |
| Type of electrical connection of main circuit | Screw connection |
| UL class J and CSA HRCI-J fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30A @ 600V, 100 kA available fault current |
| UL class RK5 fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 30A @ 600V, 5 kA available fault current |
| UL inverse-time circuit breaker | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 60A @ 600V, 5 kA available fault current |
| Vibration resistance | IEC 60068-2-6 |
| Voltage type for actuating | DC |
| Weight | AC/DC (electronic): 0.43 kg (0.95 lbs.) |
| Wire size | Load: 16...10 AWG for power terminals |
Frequently Asked Questions
How do I get pricing for 300-AOQJ9310?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 300-AOQJ9310?
300-AOQJ9310 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 300-AOQJ9310?
Key specifications include Altitude, max: 2000 m of installation site; Ambient temperature: Storage range: -55...80 °C (-67...176 °F); Available short circuit ampere: 65,000A @ 480V max, circuit breaker, RMS symmetrical; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 300-AOQJ9310 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley NEMA Size 1 Contactor 300-BOB9400

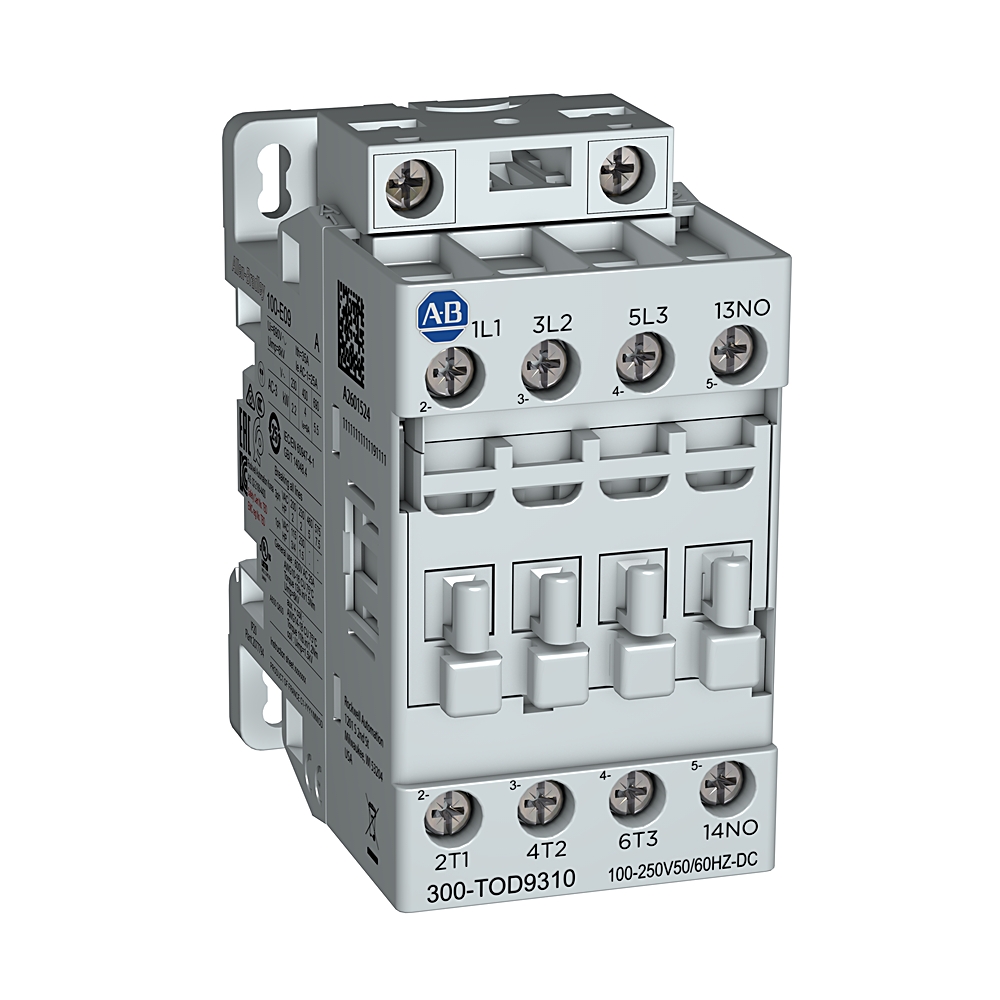

Allen-Bradley Allen-Bradley NEMA Size 0 Contactor 300-AOEQ9310

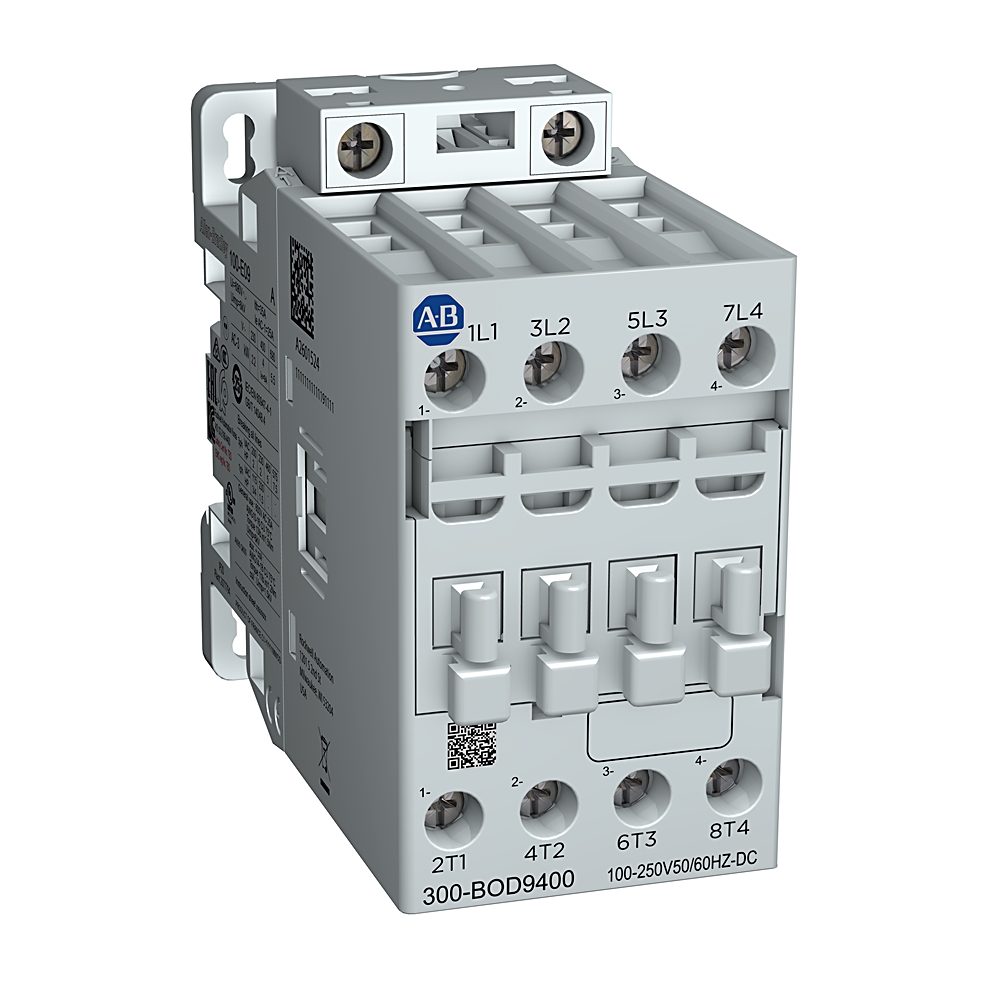

Allen-Bradley Allen-Bradley NEMA Size 1 Contactor 300-BOD9400

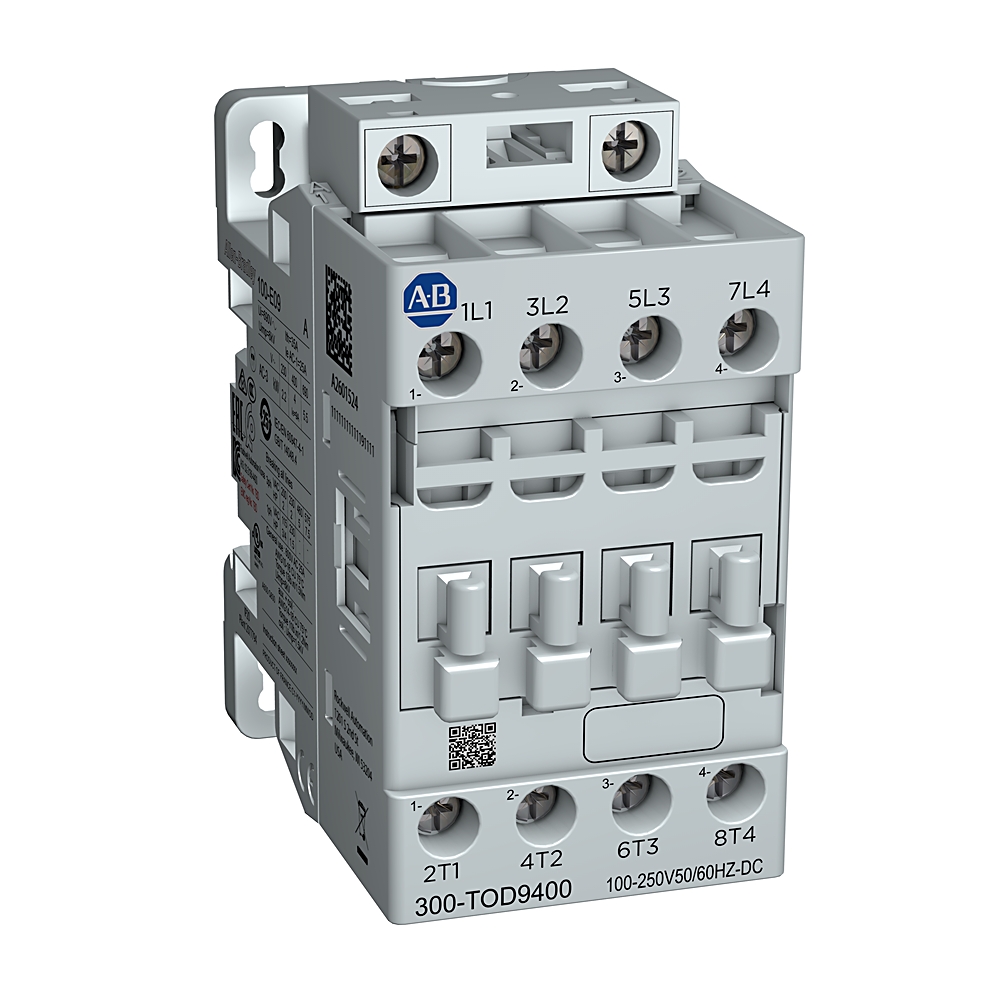

Allen-Bradley Allen-Bradley NEMA Size 0 Contactor 300-AOD9400

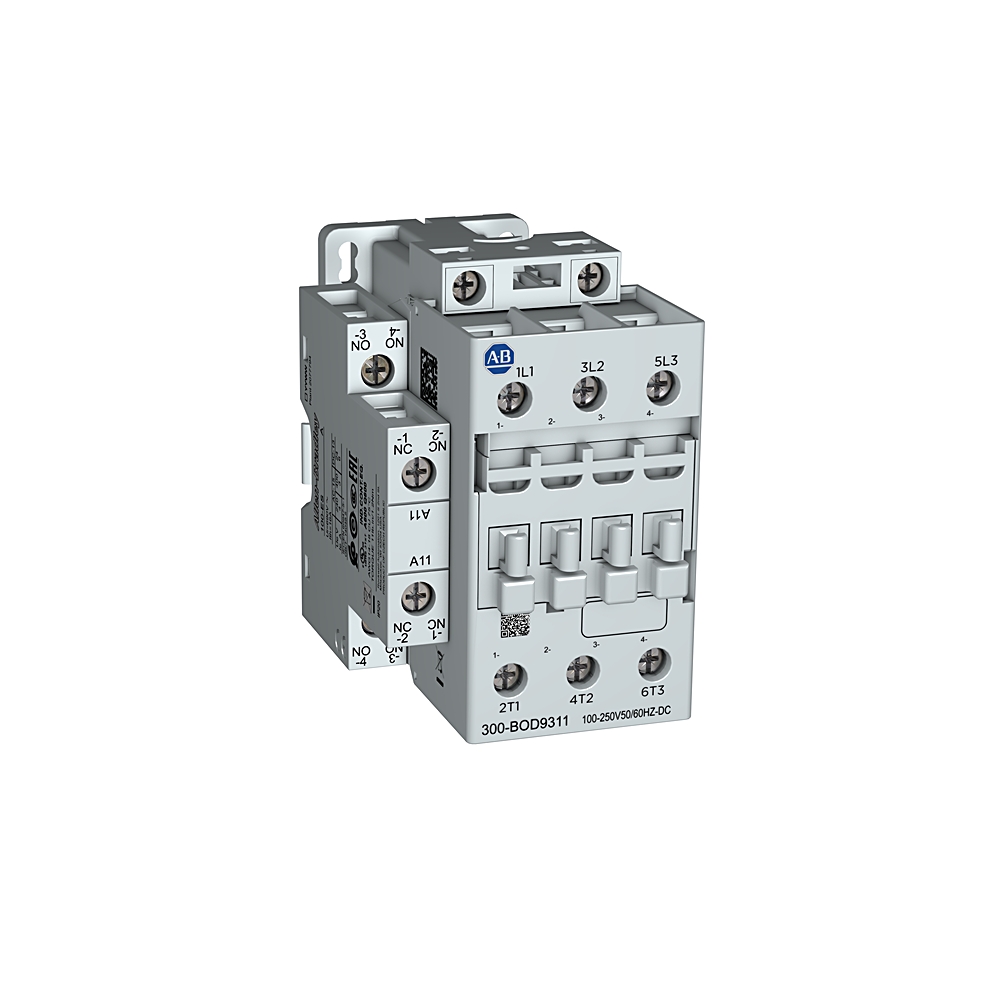

Allen-Bradley Allen-Bradley NEMA Size 1 Contactor 300-BOEJ9311
