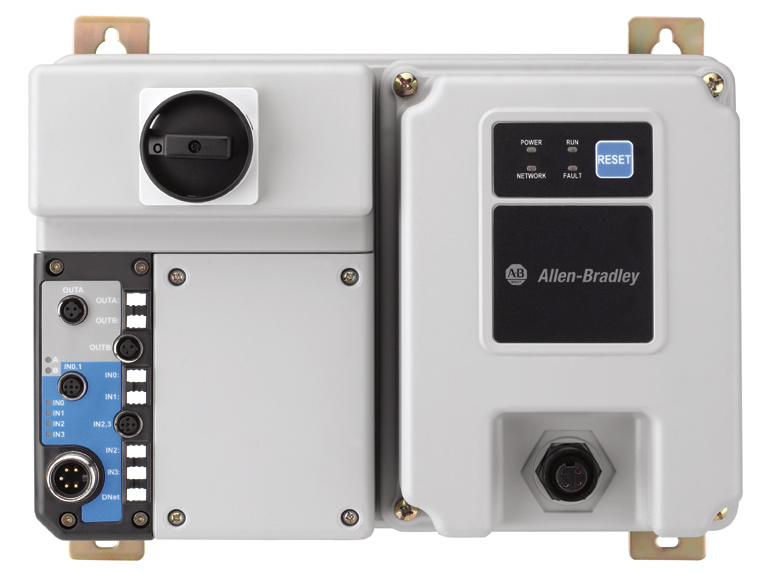

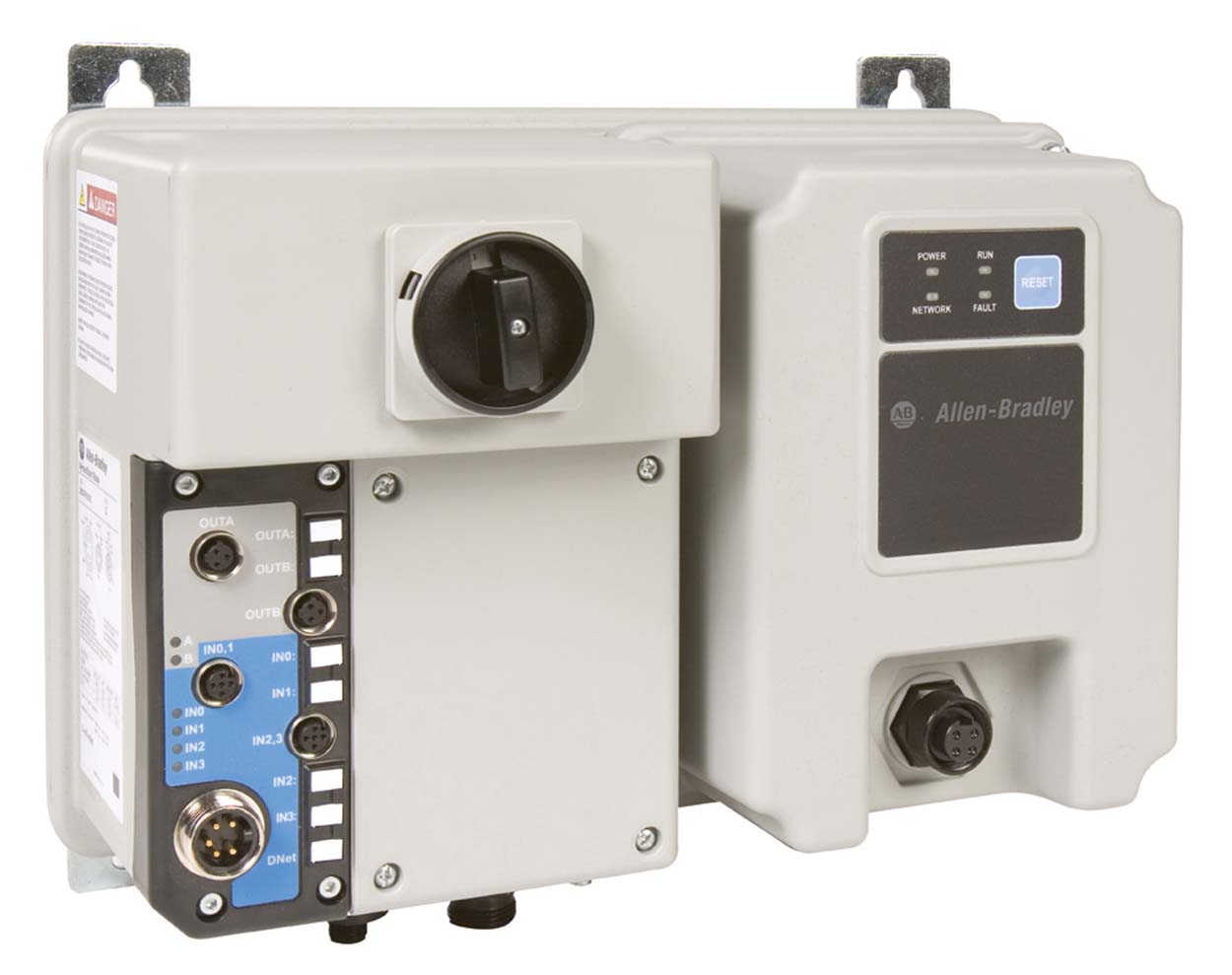

Allen-Bradley ArmorStart Starter 280D-F12B-10C-CRW
Allen-Bradley 280D-F12B-10C-CRW - industrial components - Operating Temperature: -20 °C; Lifecycle Status: Discontinued; Build America, Buy America: No.
This listing covers the Allen-Bradley 280D-F12B-10C-CRW, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -20 °C and Lifecycle Status: Discontinued.
The specification set recorded for this part number covers Build America, Buy America: No; Repair Options Available: No; Sub Brand: ArmorStart; Degree of protection (IP): IP67; Degree of protection (NEMA): 4; Altitude: 2000 m; Electrical life cycle: Output ratings (sourced from control circuit): 100000 ops (1.8K ops/hr); Mechanical life operations: Output ratings (sourced from control circuit): 50000000 ops (18K ops/hr); Number of poles: 3; Shipping weight, approx: 10.4 kg; Trip Class: Class 10, 15, 20; Tightening torque: Power and ground terminals: 4.5 in-lb per UL/NEMA (sary terminal). See the Specifications tab on this page for the full technical table.
| 3-phase power/motor cable connection | Conduit entrance with no motor cable |
|---|---|
| Altitude | 2000 m |
| Application in industrial area permitted | true |
| Application in industrial area permitted (SCPD list) | Size per NFPA 70 (NEC) or NFPA 79 for group motor applications |
| Baud rates | 500 kbps |
| Build America, Buy America | No |
| Circuit breaker operational current rating, max | 60A @ 480V (with gland type: CR or DR) |
| Communication | DeviceNet |
| Communications | DeviceNet |
| Conducted radio frequency emissions | Class A |
| Connection type | Quick disconnects |
| Control (hold in) | Power requirements: 0.038 A without HOA |
| Control (pick up) | Power requirements: 0.292 A without HOA |
| Conventional thermal current (Ith) | Output rating- sourced from control circuit: total of both outputs ≤2 A |
| Current available | 50 mA maximum per input, 200 mA total |
| Degree of protection (IP) | IP67 |
| Degree of protection (NEMA) | 4 |
| Depth, approx | Motor connection 243 mm (9.57 in) M35 cordset |
| DeviceNet input current | 364mA @ 11V DC - 4.0 W |
| DeviceNet input current surge | 15 A for 250 µs |
| DeviceNet supply voltage rating | 24V DC nominal |
| Dielectric withstand | Power circuit: 2500V AC per IEC |
| Disconnect | Motor disconnect |
| Disconnect lock out | Recommend 8 mm (5/16 in) lock shackle or hasp. The hasp should not exceed 8 mm (5/16 in) when closed. |
| Distance, max | 500 m (1630 ft) @ 125 kbps |
| Electrical life cycle | Output ratings (sourced from control circuit): 100000 ops (1.8K ops/hr) |
| Electrostatic discharge | 4 kV contact and 8 kV air |
| External devices powered by DeviceNet | 50 mA - total 200 mA |
| Fast transient | 2 kV |
| Fuse operational current rating, max | Time delay: 20 A @ 480Y/277V (with gland type: RR) |
| Height, approx | 287.5 mm |
| Humidity | 5...95% (noncondensing) |
| Input compatibility | IEC 1133 Type 1+ per IEC |
| Input filter - software selectable | Settable from 0...64 ms in 1 ms increments (ON to OFF) |
| Input OFF-state current | <1.5 mA |
| Input OFF-state voltage | 0...5V DC |
| Input ON-state current | 7.2mA @ 24V DC |
| Input ON-state voltage | 10...26V DC |
| Insulation voltage | Power circuit: rated 600V |
| Kind of current | Output ratings (sourced from control circuit): AC/DC (not to be used as an AC/DC power supply) |
| Lifecycle Status | Discontinued |
| Mains frequency | 50/60 Hz |
| Mechanical life operations | Output ratings (sourced from control circuit): 50000000 ops (18K ops/hr) |
| Number of contacts | Output rating- sourced from control circuit: 2 |
| Number of digital inputs | 4 |
| Number of digital outputs | 2 |
| Number of poles | 3 |
| Operating frequency | Power circuit: 50/60 Hz |
| Operating Temperature | -20 °C |
| Operational power rating | Full voltage starters - IP67/Type 4/12: 3Hp @ 575V AC, 60 Hz |
| Option 1 | Status only keypad |
| Outputs current (2) 1 A max. each | External devices powered by control voltage: 2 A without HOA |
| Overload selection current range | 1.1 A |
| Overvoltage category | Control circuit: III per IEC |
| Pollution degree | 3 |
| Product type | Full voltage starter |
| Protection against shock | Power circuit: IP2X per IEC |
| Radiated emissions | Class A, Group 1, equivalent to C2 emissions |
| Radio frequency electromagnetic field | 10 V/m |
| Rated impulse voltage | Power circuit: 6 kV |
| Rated operation voltage | Power circuit: 200...575V |
| Rated operational current | Power circuit: 5.5 A maximum |
| Rated output operation voltage | Sourced from control circuit: 30V DC |
| Repair Options Available | No |
| RMS symmetrical amperes | 65 kA @ 480Y/277V (with gland type: RR) |
| Shipping weight, approx | 10.4 kg |
| Shock | opsal: 15 G |
| Short circuit protection | 10 A rated device |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Short circuit rating | 30 kA |
| Storage and transportation temperature | -25 °C |
| Sub Brand | ArmorStart |
| Supporting protocol for DeviceNet | true |
| Surge transient | 1 kV L-L, 2 kV L-N (earth) |
| Tightening torque | Power and ground terminals: 4.5 in-lb per UL/NEMA (sary terminal) |
| Total control power (hold in) | Power requirements: 9VA without HOA |
| Total control power (hold in) with max outputs | External devices powered by control voltage: 518VA with HOA |
| Total control power (pick up) | Power requirements: 84VA with HOA |
| Total control power (pick up) with max outputs | External devices powered by control voltage: 579VA with HOA |
| Total with maximum sensor inputs (4) | 367mA @ 24V DC - 8.8 W |
| Trip Class | Class 10, 15, 20 |
| Trip rating | 120% of full load current (FLC) setting |
| Type of contacts | Output rating- sourced from control circuit: normally open (NO) |
| Type of control circuit | Output rating- sourced from control circuit: electromechanical relay |
| Utilization category | Power circuit: AC-3 per IEC |
| Vibration | opsal, 1 G, 0.15 mm (0.006 in) displacement |
| Voltage status only | 11...25V DC from DeviceNet |
| Width, approx | 351 mm |
| Wire size | Power and ground terminals: #16... AWG per UL/NEMA (primary/sary terminal) |
| Wire strip length | Power and ground terminals: 0.35 in (9 mm) |
