Allen-Bradley PowerFlex 700L AC Drive 20L 20LF380N0ENNXNW0WA
Brand: Allen-Bradley
SKU: 20LF380N0ENNXNW0WA
Ships Same Day*
Worldwide Shipping
| AC input overvoltage trip | 760V @ 690V |
|---|---|
| AC input undervoltage trip | 340V @ 690V |
| Active converter cassette terminal blocks-P1 & P2 | Active converter AC power and control wiring for control terminal |
| Actual short circuit rating | Determined by AIC rating of installed circuit breaker. |
| Additional configuration | None |
| Altitude | 1000 m (3280 ft) at rated current |
| Application in domestic- and commercial area permitted | true |
| Application in industrial area permitted | true |
| Atmosphere | Drive must not be installed in an area where the ambient atmosphere contains volatile or corrosive gas, vapors, or dust, If the drive is not going to be installed for a period of time, it must be stored in an area where it will not be exposed to a corrosi |
| Brake IGBT | No brake IGBT |
| Brake Resistor | No internal brake resistor |
| Build America, Buy America | No |
| Bussmann fuse current rating | 1250A @ 932V DC |
| Carrier frequency | 2 or 4 kHz drive rating based on 4 kHz |
| Circuit breaker current rating | 800A @ 575...690V AC input voltage |
| Control logic noise immunity | Showering arc transients upto 1500V peak |
| Control method | Sine coded PWM with progmable carrier frequency |
| Control options | None |
| Coolant flow rating, max | 45.4 l/min |
| Coolant flow rating, min | 30.3 l/min |
| Coolant temperature | 0 °C |
| Coolant type | WEG50 equals good quality or distilled water with approved inhibited ethylene glycol, 50% glycol by volume or WPG50 equals good quality or distilled water with approved inhibited propylene glycol, 50% glycol by volume. |
| Custom option | None |
| DC bus overvoltage trip | 1168V @ 690V |
| DC bus test point socket | 4 mm socket for DC bus voltage measurement only (2 terminals: DC+, DC-) for power terminal |
| DC bus undervoltage shutoff/fault | 300V @ 690V |
| DC nominal bus voltage | 1000 @ 690V |
| Degree of protection (IP) | IP00 |
| Depth | 833 mm |
| Displacement power factor | 0.98 across entire speed range. |
| Documentation | English documentation set |
| Drive overcurrent trip | Software overcurrent trip: 200% of rated current (typical) |
| Efficiency | 97.5% at rated A, nominal line volts |
| Electronic motor overload protection | Class 10 motor overload protection according to NEC article 430 and motor over-temperature protection according to NEC article 430.126 (A)(2). UL 508C file E59272 |
| Enclosure Type | IP00/NEMA/UL Type open |
| Equipment Type | Spare power module |
| Estimated amount of coolant | 19 L |
| Feedback option | No ftdback |
| Ground fault trip | Phase-to-ground on drive output |
| Heat sink thermistor | Monitored by microprocessor overtemp trip |
| Height | 2078 mm mm |
| Human interface module | No HIM (blank plate inserted) |
| Input current rating | 760A @ 932V DC |
| Input frequency tolerance | 47...63 Hz |
| Input phases | 3-phase input provides full rating for all drives. |
| Input power wire lugs | Input power connections on drive (R/L1, S/L2, T/L3) for power terminal |
| Input Voltage | 690V AC, 3-phase, 60 Hz |
| Intermittent overload | 110% overload capability for up to 1 min, 150% overload capability for up to 3 s |
| Internal Communication Module | No communication module |
| Lifecycle Status | Active |
| Line transients | Up to 6000 volts peak per IEEE C62.41-1991 |
| Mains frequency | 60 Hz |
| Mains voltage | 690 V |
| Max. output voltage | 690 V |
| Motor lead lengths | 76 m (250 ft) total |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 2 |
| Number of digital inputs | 6 |
| Number of digital outputs | 3 |
| Number of phases input | 3 |
| Number of phases output | 3 |
| Output current (with 690V AC induction motor) | Normal duty: 570 A @ 150% of continuous current for 3 s |
| Output current rating | 380A @ 475Hp (355 kW) normal duty, 350 Hp (260 kW) heavy duty, frame 3 A |
| Output power bus bar | Motor connections (U/T1, V/T2, W/T3) for power terminal |
| Output voltage range | 0 to rated motor voltage |
| PE wire lug | Terminating point for ground wires for power terminal |
| Pressure drop from drive inlet to drive outlet at minimum coolant flow rate | 0.35 bar |
| PWM frequency | 4 kHz |
| Recommended tightening torque | 62 Nm (550 in-lb)(±10%), output power bus bar for power terminal |
| Recommended tightening torque for active converter cassette terminal blocks-P1 & P2 | 0.8 Nm (7 in-lb)(±10%) for control terminal |
| Recommended tightening torque for SHLD terminal | 1.4 Nm (12 in-lb)(±10%) for control terminal |
| Recommended tightening torque for terminal blocks-TB5 and TB6 | 1.4 Nm (12 in-lb)(±10%) for control terminal |
| Relative Humidity | 5...95% noncondensing |
| Repair Options Available | Yes |
| SHLD terminal | Terminating point for control wiring shields on power module for control terminal |
| Shock | 10 G peak for 11 ms duration (±1.0 ms), three shocks in each direction, in each axis |
| Short circuit current rating | To match specified circuit breaker capability, less than or equal to 200000 A symmetrical. |
| Short circuit trip | Phase-to-phase on drive output |
| Shunt trip rating | 35 kAIC @ 575...690V AC input voltage |
| Storage Temperature | -40...85 °C (-40...185 °F) for all constructions |
| Supporting protocol for CAN | true |
| Supporting protocol for DeviceNet | true |
| Supporting protocol for EtherNet/IP | true |
| Supporting protocol for Modbus | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for TCP/IP | true |
| Surrounding air temperature without derating, max | 0...40 °C (32...104 °F) @ IP20, NEMA/UL Type 1 |
| Terminal blocks-TB5 and TB6 | Power module control wiring for control terminal |
| Vibration | 2 mm (0.07 in.) displacement, 1 G peak Alitude, 1 mm (0.04 in.) displacement from 2…13.2 Hz, 0.7 G acceleration at 13.2 Hz to 1.0 G acceleration at 55 Hz, 1 G acceleration from 55 …512 Hz Duration: ten logarithmic sine sweep cycles per axis, at sweep ra |
| Watt loss | Power section: 13200 W @ 690V total (into air and into liquid) |
| Weight | 950 kg |
| Width | 1200 mm mm |
| Wire size | 600 MCM to #2 AWG, PE wire lug for power terminal |
| Wire size for active converter cassette terminal blocks-P1 & P2 | 0.3 mm² to 3.3 mm² (#22 AWG to #12 AWG) for control terminal |
| Wire size for SHLD terminal | 0.3 mm² to 2.1 mm² (#22 AWG to #14 AWG) for control terminal |
| Wire size for terminal blocks-TB5 and TB6 | 0.2 mm² to 4 mm² (#24 AWG to #10 AWG) for control terminal |
| Wire strip length for active converter cassette terminal blocks-P1 & P2 | 8 mm (0.31 in) for control terminal |
| Wire strip length for SHLD terminal | 10 mm (0.39 in) for control terminal |
| Wire strip length for terminal blocks-TB5 and TB6 | 8 mm (0.31 in) for control terminal |
| With control element | true |
Frequently Asked Questions
How do I get pricing for 20LF380N0ENNXNW0WA?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 20LF380N0ENNXNW0WA?
20LF380N0ENNXNW0WA is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 20LF380N0ENNXNW0WA?
Key specifications include AC input overvoltage trip: 760V @ 690V; AC input undervoltage trip: 340V @ 690V; Active converter cassette terminal blocks-P1 & P2: Active converter AC power and control wiring for control terminal; Actual short circuit rating: Determined by AIC rating of installed circuit breaker.. The full specification table on this page lists every published attribute for this part.
How quickly can 20LF380N0ENNXNW0WA ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley PowerFlex 700L AC Drive 20L 20LE800N3ENNKC20WA
SKU: 20LE800N3ENNKC20WA
Same-day dispatch*

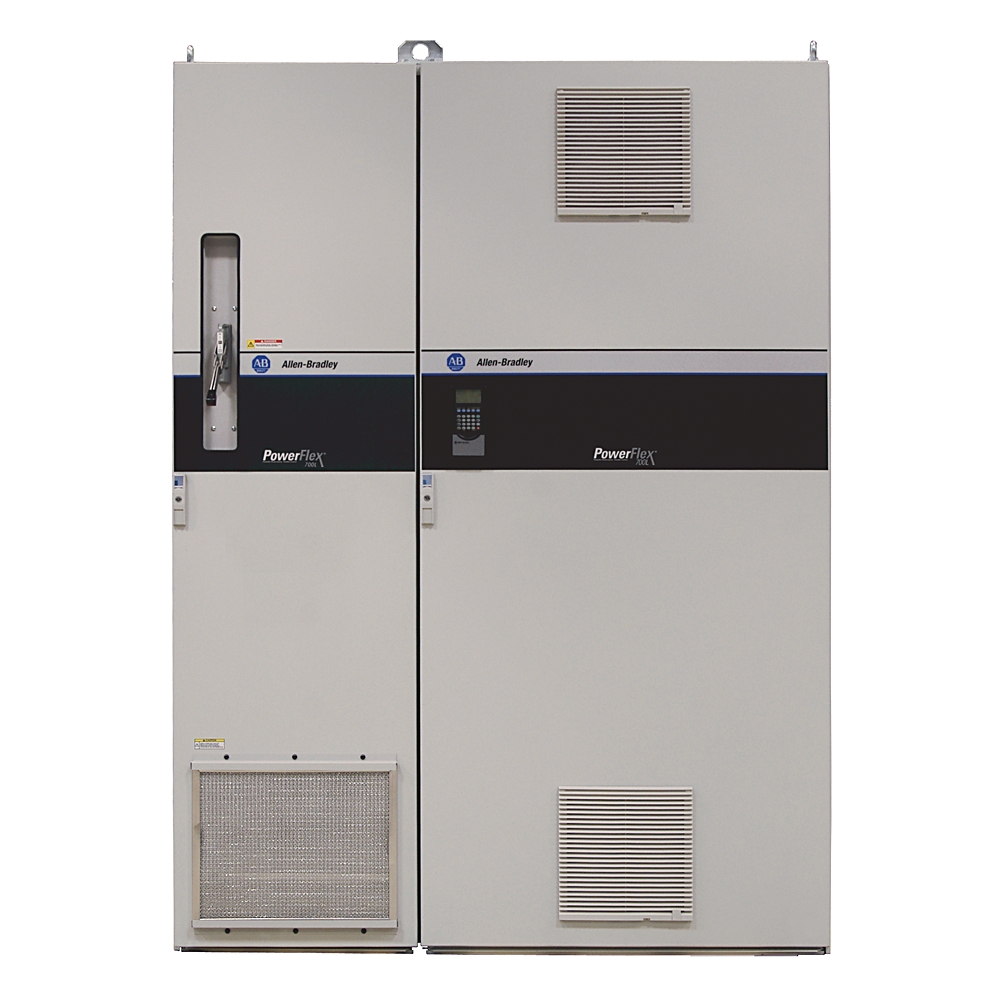

Allen-Bradley Allen-Bradley PowerFlex 700L AC Drive 20L 20LF705N0ENNXNW0WA
SKU: 20LF705N0ENNXNW0WA
Same-day dispatch*
Allen-Bradley Allen-Bradley PowerFlex 700L AC Drive 20L 20LE800N0ENNJNA0EA
SKU: 20LE800N0ENNJNA0EA
Same-day dispatch*

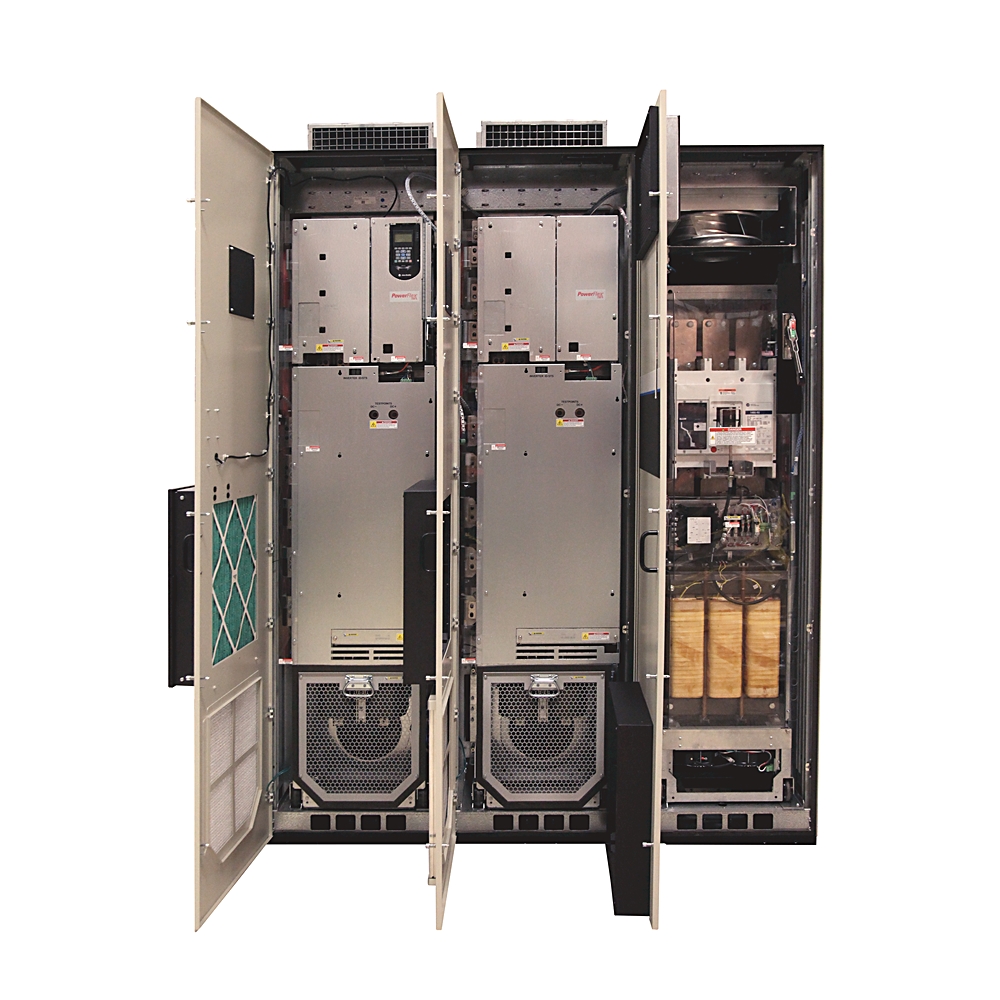

Allen-Bradley Allen-Bradley PowerFlex Air Cooled 755 Packaged Drive 21G11JD1K2AN4NNNNN-ND-L1-P3
SKU: 21G11JD1K2AN4NNNNN-ND-L1-P3
Same-day dispatch*
Allen-Bradley Allen-Bradley PowerFlex 700L AC Drive 20L 20LE425ACENNANASEA
SKU: 20LE425ACENNANASEA
Same-day dispatch*

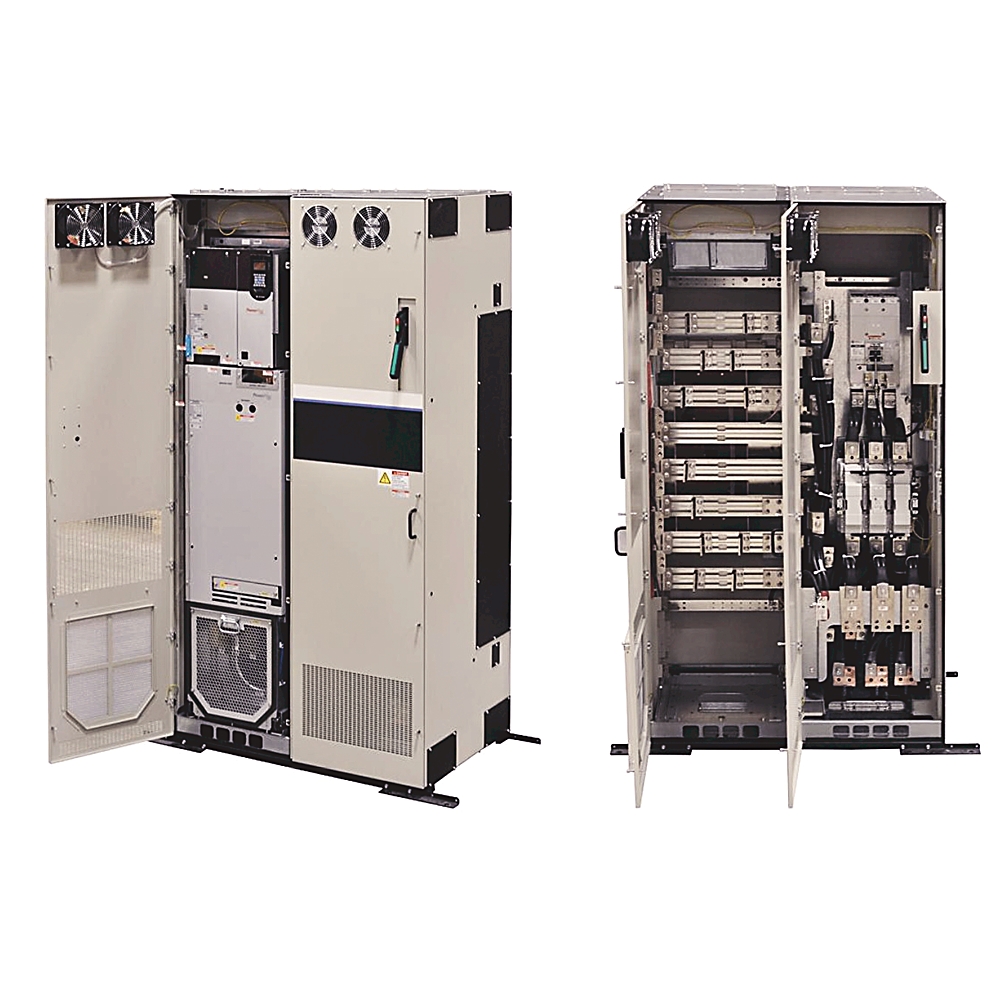

Allen-Bradley Allen-Bradley PowerFlex Air Cooled 755 Packaged Drive 21G11JD1K2AN4NNNNN-ND-P3
