Allen-Bradley 25 A 194L Load Switch 194L-E25-1754
Allen-Bradley 194L-E25-1754 - industrial components - Operating Temperature: -25 °C; Storage Temperature: -40 °C; Lifecycle Status: Active.
This listing covers the Allen-Bradley 194L-E25-1754, a part number in the industrial components category. The manufacturer's published data for this part number specifies Operating Temperature: -25 °C and Storage Temperature: -40 °C.
Published specifications for this part include Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Type of electrical connection of main circuit: Screw connection; Mechanical life operations: Endurance: 1000000; Number of poles: 4; Rated permanent current Iu: 25 A; Installation: Open-front/door; Material housing: Plastic; Model: On/Off switch; Rated breaking capacity: 176A @ 380V, 0.45 [cos j]; Rated current (Ie): 8 contacts in series: 8A @ 240V, DC-21A (for inductive loads, T = 50 ms). The complete technical table is shown in the Specifications tab on this page.
| Actuator type | Select actuator separately |
|---|---|
| Ampere rating | 25 A (suitable for switching off-load (AC-20) above 660V, but only upto 660V for switches with screws at the rear) |
| Back-up fuse, max | 80 A (gG characteristic) per UL/CSA |
| Build America, Buy America | No |
| Complete device in housing | false |
| Conditional rated short circuit current | 5 kA (gL characteristic) |
| Degree of protection (IP), front side | IP66 |
| Electrical switch rate | 120 ops/h |
| Electrical switching rate | 120 ops/h per UL/CSA |
| Fine strands wire gauge, max | (2) 16...10 AWG (1.5...6 mm²) |
| Fuse size, max | 80 A per UL/CSA |
| Gland entry type | PG-type cable gland entry |
| Installation | Open-front/door |
| Lifecycle Status | Active |
| Material housing | Plastic |
| Mechanical life operations | Endurance: 1000000 |
| Mechanical switching rate | 1200 ops/h |
| Model | On/Off switch |
| Number of poles | 4 |
| Operating Temperature | -25 °C |
| Power lost | 0.9 W |
| Protection class | Switch bodies: IP20 (IEC 529) |
| Rated breaking capacity | 176A @ 380V, 0.45 [cos j] |
| Rated current (Ie) | 8 contacts in series: 8A @ 240V, DC-21A (for inductive loads, T = 50 ms) |
| Rated impulse voltage (Uimp) | 6 kV |
| Rated making/breaking capacity (= 1.1 x Ie) | 8 contacts in series: 8.8A @ 231V (1.1 x rated voltage), DC-21A (for inductive loads, T = 50 ms), Ue max = 600V |
| Rated making/breaking capacity (= 1.5 x Ie) | 8 contacts in series: 33A @ 201.6V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V |
| Rated making/breaking capacity (= 4 x Ie) | 6 contacts in series: 58.2A @ 115.5V (DC-23A, DC-3, DC-5 for inductive loads, T ≤7.5 ms) |
| Rated permanent current Iu | 25 A |
| Rated power (Pe) | 6 contacts in series: 1.60 kW @ 110V (DC-23A, DC-3, DC-5 for inductive loads, T ≤1 ms) |
| Rated short-time current | 0.75 kArms for 1 s (gL characteristic) |
| Rated thermal current (Ith) | 30A @ 40°C per IEC-947 |
| Rated thermal current (Ithe) | 25A @ 60°C per IEC-947 |
| Rated voltage (Ue) | 690V per IEC-947 |
| Repair Options Available | No |
| Rigid wire gauge, max | (2) 16...10 AWG (1.5...6 mm²) |
| Short circuit prospective fault current, max | 5 kA per UL/CSA |
| Standard motor DOL rating | 3-poles, 3-phase: 19.2A @ 120V (similar to AC-3) per UL (CSA) |
| Storage Temperature | -40 °C |
| Strongest series fuse | 25 A (not in enclosure, gL characteristic) |
| Suitable for distribution board installation | false |
| Suitable for front mounting | true |
| Suitable for intermediate mounting | false |
| Switch configuration | OFF-ON 90° |
| Switch size | 25 A |
| Type of electrical connection of main circuit | Screw connection |
| With retraction in 0-position | false |
| With zero (off) position | true |
Frequently Asked Questions
How do I get pricing for 194L-E25-1754?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 194L-E25-1754?
194L-E25-1754 is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 194L-E25-1754?
Key specifications include Actuator type: Select actuator separately; Ampere rating: 25 A (suitable for switching off-load (AC-20) above 660V, but only upto 660V for switches with screws at the rear); Back-up fuse, max: 80 A (gG characteristic) per UL/CSA; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 194L-E25-1754 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 25 A 194L Load Switch 194L-E25-1754-6N
Allen-Bradley Allen-Bradley 25 A 194L Load Switch 194L-E25-2502
Allen-Bradley Allen-Bradley 25 A 194L Load Switch 194L-E25-2503

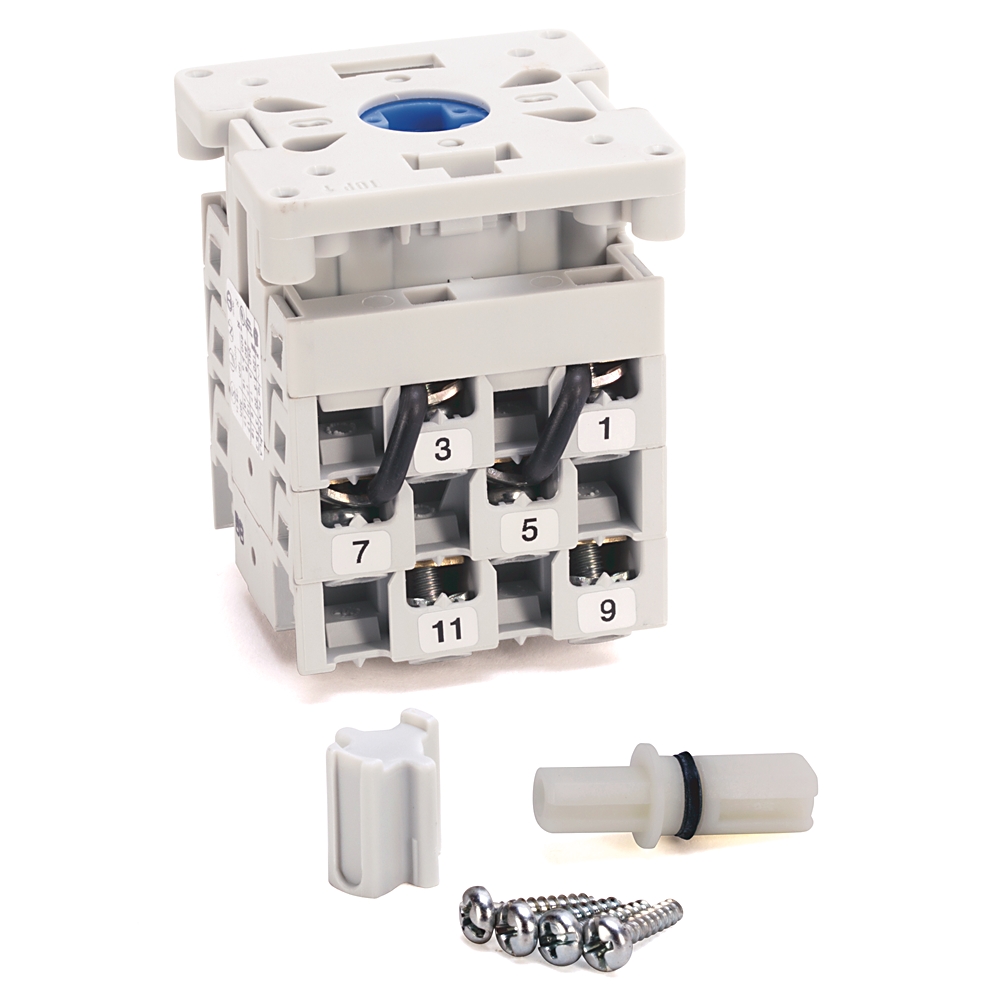

Allen-Bradley Allen-Bradley 25 A 194L Load Switch 194L-E25-1754-6G
