Allen-Bradley Compact Comb Starter W/Ckt-Bkr 190S-AND2-DC10C-TE
Allen-Bradley 190S-AND2-DC10C-TE - industrial components - Width: 45 mm mm; Height: 215 mm mm; Lifecycle Status: Discontinued.
This listing covers the Allen-Bradley 190S-AND2-DC10C-TE, a part number in the industrial components category. The manufacturer's published data for this part number specifies Width: 45 mm mm and Height: 215 mm mm.
Key manufacturer data on file for this item includes Lifecycle Status: Discontinued; Build America, Buy America: No; Repair Options Available: No; Depth: 181 mm; Overload release current setting: 6.3 A; Rated control supply voltage at AC 50 Hz: 110 V; Rated control supply voltage at AC 60 Hz: 120 V; Type of electrical connection for auxiliary- and control current circuit: Screw connection; Type of electrical connection of main circuit: Screw connection; Type of motor starter: Direct online starter (DOL); Voltage type for actuating: AC; With short-circuit release: true. The complete technical table is shown in the Specifications tab on this page.
| Build America, Buy America | No |
|---|---|
| Circuit breaker auxiliary and trip contacts for 140M | Internal 140M auxiliary contact 1 NO + 1 NC |
| Circuit breaker frame size | 140M-D8E, high break plus |
| Contactor size | 100-C09 |
| Depth | 181 mm |
| Fuse or circuit breaker per NEC, max | 600 A @ F-Frame with Bulletin 100-C/104-C Contactors |
| Height | 215 mm mm |
| Hp ratings as a UL508/CSA motor controller in group motor installations | 7.5…10Hp @ 575V AC, 60 Hz (with F-frame, 100-C/104-C contactors) |
| Hp ratings as a UL508/CSA self-protected Type E combination motor controller | 7.5…10Hp @ 575V AC, 60 Hz (with F-frame, 100-C/104-C contactors and spacing adapter) |
| Hp ratings as a UL508/CSA Type F combination motor controller | 7.5…10Hp @ 575V AC, 60 Hz (with F-frame, 100-C/104-C contactors and spacing adapter) |
| kW ratings as a IEC for standard motor, 1500 rpm, max | 7.5 kW @ 690V AC @ 50Hz (with F-frame, 100-C/104-C contactors) |
| Lifecycle Status | Discontinued |
| Modifications, accessories | Spacer module for UL 508 type E adder module |
| Number of auxiliary contacts as normally open contact | 1 |
| Overload release current setting | 6.3 A |
| Rated control supply voltage at AC 50 Hz | 110 V |
| Rated control supply voltage at AC 60 Hz | 120 V |
| Repair Options Available | No |
| Short-circuit current as a IEC (Type 1 coordination), max | 65kA @ 500V AC, (with D-frame, 100-C/104-C contactors) |
| Short-circuit current as a IEC (Type 2 coordination), max | 65kA @ 500V AC, (with D-frame, 100-C/104-C contactors) |
| Short-circuit current as a UL508/CSA motor controller in group motor installations (Type 1 coordination), max | 65kA @ 480V AC, D-frame with 100-C/104-C contactors |
| Short-circuit current as a UL508/CSA motor controller in group motor installations (Type 2 coordination), max | 65kA @ 480V AC, D-frame with 100-C/104-C contactors |
| Short-circuit current as a UL508/CSA self-protected Type E combination motor controller, max | 65 kA @ 480Y/277V AC, (with F-frame, 100-C/104-C contactors and spacing adapter) |
| Short-circuit current as a UL508/CSA Type F combination motor controller (Type 1 coordination), max | 65 kA @ 480Y/277V AC, (with F-frame, 100-C/104-C contactors and spacing adapter) |
| Short-circuit current as a UL508/CSA Type F combination motor controller (Type 2 coordination), max | 65 kA @ 480Y/277V AC, (with F-frame, 100-C/104-C contactors and spacing adapter) |
| Style | Open type |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Type of electrical connection of main circuit | Screw connection |
| Type of motor starter | Direct online starter (DOL) |
| Voltage type for actuating | AC |
| Width | 45 mm mm |
| With short-circuit release | true |
Frequently Asked Questions
How do I get pricing for 190S-AND2-DC10C-TE?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 190S-AND2-DC10C-TE?
190S-AND2-DC10C-TE is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 190S-AND2-DC10C-TE?
Key specifications include Build America, Buy America: No; Circuit breaker auxiliary and trip contacts for 140M: Internal 140M auxiliary contact 1 NO + 1 NC; Circuit breaker frame size: 140M-D8E, high break plus; Contactor size: 100-C09. The full specification table on this page lists every published attribute for this part.
How quickly can 190S-AND2-DC10C-TE ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Compact Comb Starter W/Ckt-Bkr 190S-AND2-CC10S-R01-S10
Allen-Bradley Allen-Bradley Compact Comb Starter W/Ckt-Bkr 190S-ANEJ1-CC10C-R11
Allen-Bradley Allen-Bradley Compact Comb Starter W/Ckt-Bkr 190S-ANEJ1-DC10C-KN

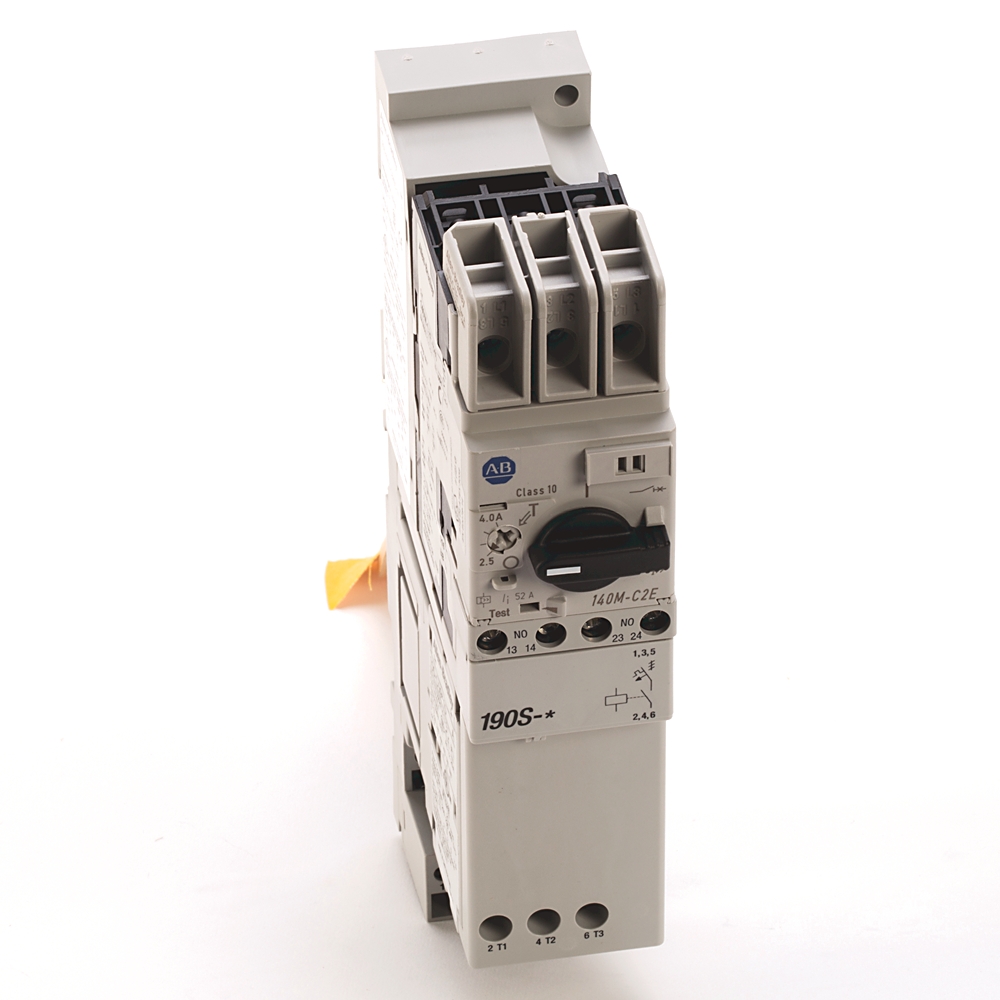

Allen-Bradley Allen-Bradley 2.5-4.0 A Compact Comb Starter W/Ckt-Bkr 190S-AND2-CB40D-KN
