Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 260A 150-SC2NBD
Allen-Bradley 150-SC2NBD - Compact AC Motor Soft Starters - Width: 762 mm mm; Height: 965.2 mm mm; Enclosure: Open type.
The 150-SC2NBD from Allen-Bradley is listed under Compact AC Motor Soft Starters in our catalog. The manufacturer's published data for this part number specifies Width: 762 mm mm and Height: 965.2 mm mm.
Published specifications for this part include Enclosure: Open type; Function: Single direction; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: Yes; Degree of protection (IP): IP00; Depth: 355.6 mm; Rated control supply voltage at AC 50 Hz: 100 V; Rated control supply voltage at AC 60 Hz: 100 V; Voltage type for actuating: AC; Altitude: 2000 m (6560 ft) without derating, for ops above 2000...7000 m (6560...22965 ft) maximum, refer to Thermal Wizard; Number of poles: 3. See the Specifications tab on this page for the full technical table.
| Altitude | 2000 m (6560 ft) without derating, for ops above 2000...7000 m (6560...22965 ft) maximum, refer to Thermal Wizard |
|---|---|
| Atmospheric protection | ANSI/ISA - 71.04-2013, class G3 environment |
| Base power draw from control module with heat sink fan | 75 W @ 24V DC |
| Build America, Buy America | No |
| Continuous duty power structure heat dissipation | 780 W |
| Control module battery type | CR 2032 for control power |
| Control modules | Thermoset and thermoplastic moldings |
| Control power ride through | 22 ms for control power |
| Control terminals | ClAing yoke connection, M3 screw clA |
| Control Voltage | 100...240V AC |
| Controller Rating | 260 A |
| Controller Ratings | C2 |
| Controller type | SMC-50 |
| Degree of protection (IP) | IP00 |
| Delta connected motor current | Normal/standard duty: 151...450A @ 400/415/460V AC, 3-phase |
| Delta connected motor power | Normal/standard duty: 90...250 kW @ 400/415V AC @ 50Hz, 3-phase |
| Depth | 355.6 mm |
| Dielectric withstand | 2500V per IEC for power circuit |
| DV/DT protection | RC snubber network |
| EMC emission levels | Radiated emissions: Class A (per EN 60947-4-2) |
| EMC immunity levels | Surge transient per EN 60947-4-2 |
| Enclosure | Open type |
| Function | Single direction |
| Height | 965.2 mm mm |
| High capacity available fault current, max | 65kA @ 600V, typical current 700 A time delay Class J or Class L fuse for inside delta connected motors |
| Horizontal clearance, min | 0 cm |
| Humidity | 5...95% (noncondensing) |
| Insulation voltage | Rated 500V per IEC for power circuit |
| Integrated motor overload protection | true |
| Lifecycle Status | Active |
| Line connected motor current | Normal/standard duty: 87...260A @ 400/415/460V AC, 3-phase |
| Line connected motor power | Normal/standard duty: 75...200Hp @ 460V AC, 60 Hz, 3-phase |
| Metal parts | Plated brass, copper or steel |
| Mounting orientation | Vertical |
| NOTE | Config tool not provided,must |
| Number of poles | 3 |
| Operating ambient temperature | 40 to 65 °C (104 to 149 °F) (refer to thermal wizard) |
| Operating frequency | 47...63 Hz or DC for control power |
| Option power adder | 5VA @ 100...240V AC, 150-SM6 (for each option installed, add to base power to obtain total power requirement) |
| Optional controller feature | Param configuration/progming tools |
| Output current, max | 300mA @ 24V DC supply (terminals 8 and 12) for control power |
| Overload current for delta connected devices | 151 A |
| Overload current for line connected devices | 87 A |
| Overload type | Electronic - using I2t algorithm |
| Pollution degree | 2 |
| Power poles | Heatsink hockey puck thyristor modular design |
| Power terminal lugs | Two 10.5 mm (0.41 in) diam holes per power pole |
| Power terminal markings | NEMA, CENELEC EN50 012 |
| Protection against electrical shock | IP00 (IP20 - control terminals only) per IEC |
| Rated control supply voltage at AC 50 Hz | 100 V |
| Rated control supply voltage at AC 60 Hz | 100 V |
| Rated impulse voltage | 6000V per IEC for power circuit |
| Rated operating voltage Ue | 200 V |
| Rated surrounding temperature range without derating | -20 °C |
| Repair Options Available | Yes |
| Repetitive peak inverse voltage rating | 1400V per UL/CSA/NEMA for power circuit |
| Shock | opsal: 15 G |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Standard available fault current, max | 30kA @ 600V, typical current 700 A time delay fuse for inside delta connected motors |
| Standard controller feature | Torque control |
| Storage and transportation temperature | -25 °C |
| Transient protection | Metal oxide varistors: 220 J |
| Trip classes | 5...30 |
| Trip current rating | 118% of motor FLC |
| Utilization category | MG 1 per UL/CSA/NEMA for normal duty |
| Vertical clearance, min | 15 cm |
| Vibration | opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement |
| Voltage type for actuating | AC |
| Width | 762 mm mm |
| With display | false |
Frequently Asked Questions
How do I get pricing for 150-SC2NBD?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 150-SC2NBD?
150-SC2NBD is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 150-SC2NBD?
Key specifications include Altitude: 2000 m (6560 ft) without derating, for ops above 2000...7000 m (6560...22965 ft) maximum, refer to Thermal Wizard; Atmospheric protection: ANSI/ISA - 71.04-2013, class G3 environment; Base power draw from control module with heat sink fan: 75 W @ 24V DC; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 150-SC2NBD ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 260A 150-SC2NUD
Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 210A 150-SC1NUD
Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 320A 150-SC3NBD
Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 180A 150-SB4NUD

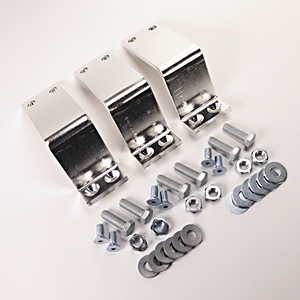

Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 320A 150-SC3NUR
