Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 90A 150-SB1NUR
Allen-Bradley 150-SB1NUR - Compact AC Motor Soft Starters - Width: Line/wye: 609.6 mm mm; Height: Line/wye: 762 mm mm; Enclosure: Open type.
The 150-SB1NUR from Allen-Bradley is listed under Compact AC Motor Soft Starters in our catalog. The manufacturer's published data for this part number specifies Width: Line/wye: 609.6 mm mm and Height: Line/wye: 762 mm mm.
The specification set recorded for this part number covers Enclosure: Open type; Function: Single direction; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: Yes; Degree of protection (IP): IP00; Depth: Line/wye: 304.8 mm; Voltage type for actuating: DC; Altitude: 2000 m (6560 ft) without derating, for ops above 2000...7000 m (6560...22965 ft) maximum, refer to Thermal Wizard; Number of poles: 3; Rated control supply voltage at DC: 24 V; Shock: opsal: 15 G. See the Specifications tab on this page for the full technical table.
| Altitude | 2000 m (6560 ft) without derating, for ops above 2000...7000 m (6560...22965 ft) maximum, refer to Thermal Wizard |
|---|---|
| Atmospheric protection | ANSI/ISA - 71.04-2013, class G3 environment |
| Base power draw from control module with heat sink fan | 75 W @ 24V DC |
| Build America, Buy America | No |
| Continuous duty power structure heat dissipation | 270 W |
| Control module battery type | CR 2032 for control power |
| Control modules | Thermoset and thermoplastic moldings |
| Control power ride through | 22 ms for control power |
| Control terminals | ClAing yoke connection, M3 screw clA |
| Controller Rating | 90 A |
| Controller type | SMC-50 |
| Degree of protection (IP) | IP00 |
| Delta connected motor current | Normal/standard duty: 52...155A @ 500/575V AC, 3-phase |
| Delta connected motor power | Normal/standard duty: 50...150Hp @ 575V AC, 60 Hz, 3-phase |
| Depth | Line/wye: 304.8 mm |
| Dielectric withstand | 2500V per IEC for power circuit |
| DV/DT protection | RC snubber network |
| EMC emission levels | Radiated emissions: Class A (per EN 60947-4-2) |
| EMC immunity levels | Surge transient per EN 60947-4-2 |
| Enclosure | Open type |
| Function | Single direction |
| Height | Line/wye: 762 mm mm |
| High capacity available fault current, max | 65kA @ 600V, typical current 250 A time delay Class J or Class L fuse for inside delta connected motors |
| Horizontal clearance, min | 0 cm |
| Humidity | 5...95% (noncondensing) |
| Insulation voltage | Rated 240V per IEC for control power |
| Integrated motor overload protection | true |
| Lifecycle Status | Active |
| Line connected motor current | Normal/standard duty: 30...90 A @ 690/Y/600V AC, 3-phase |
| Line connected motor power | Normal/standard duty: 30...80 kW @ 690V AC/Y, 50 Hz, 3-phase |
| Metal parts | Plated brass, copper or steel |
| Mounting orientation | Vertical |
| Number of poles | 3 |
| Operating ambient temperature | 40 to 65 °C (104 to 149 °F) (refer to thermal wizard) |
| Operating frequency | 47...63 Hz or DC for control power |
| Option power adder | 4 W @ 24V DC, 20-COMM-X (for each option installed, add to base power to obtain total power requirement) |
| Optional controller feature | Param configuration/progming tools |
| Output current, max | 300mA @ 24V DC supply (terminals 8 and 12) for control power |
| Overload current for delta connected devices | 52 A |
| Overload current for line connected devices | 30 A |
| Overload type | Electronic - using I2t algorithm |
| Pollution degree | 2 |
| Power poles | Heatsink hockey puck thyristor modular design |
| Power terminal lugs | One 10.5 mm (0.41 in) diam hole per power pole |
| Power terminal markings | NEMA, CENELEC EN50 012 |
| Protection against electrical shock | IP2X (with optional terminal cover) per IEC |
| Rated control supply voltage at DC | 24 V |
| Rated impulse voltage | 6000V per IEC for power circuit |
| Rated operating voltage Ue | 200 V |
| Rated surrounding temperature range without derating | -20 °C |
| Repair Options Available | Yes |
| Repetitive peak inverse voltage rating | 1800V per IEC for power circuit |
| Shock | opsal: 15 G |
| Short circuit protection device performance (SCPD) type | Type 1 |
| Standard available fault current, max | 18kA @ 600V, typical current 450 A non-time delay fuse for inside delta connected motors |
| Standard controller feature | Torque control |
| Storage and transportation temperature | -25 °C |
| Transient protection | None |
| Trip classes | 5...30 |
| Trip current rating | 118% of motor FLC |
| Utilization category | MG 1 per UL/CSA/NEMA for normal duty |
| Vertical clearance, min | 15 cm |
| Vibration | opsal: 1.0 G peak, 0.15 mm (0.006 in) displacement |
| Voltage type for actuating | DC |
| Width | Line/wye: 609.6 mm mm |
| With display | false |
Frequently Asked Questions
How do I get pricing for 150-SB1NUR?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 150-SB1NUR?
150-SB1NUR is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 150-SB1NUR?
Key specifications include Altitude: 2000 m (6560 ft) without derating, for ops above 2000...7000 m (6560...22965 ft) maximum, refer to Thermal Wizard; Atmospheric protection: ANSI/ISA - 71.04-2013, class G3 environment; Base power draw from control module with heat sink fan: 75 W @ 24V DC; Build America, Buy America: No. The full specification table on this page lists every published attribute for this part.
How quickly can 150-SB1NUR ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley Encl. SMC-50 90 A Smart Motor Ctrlr 150-SB1FBD
Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 110A 150-SB2NUD
Allen-Bradley Allen-Bradley SMC-50 with Bypass 480A, 480V 150-S480NBR
Allen-Bradley Allen-Bradley Encl. SMC-50 180 A Smart Motor Ctrlr 150-SB4FBD-1F-4G-4R-6P-BP-HC6

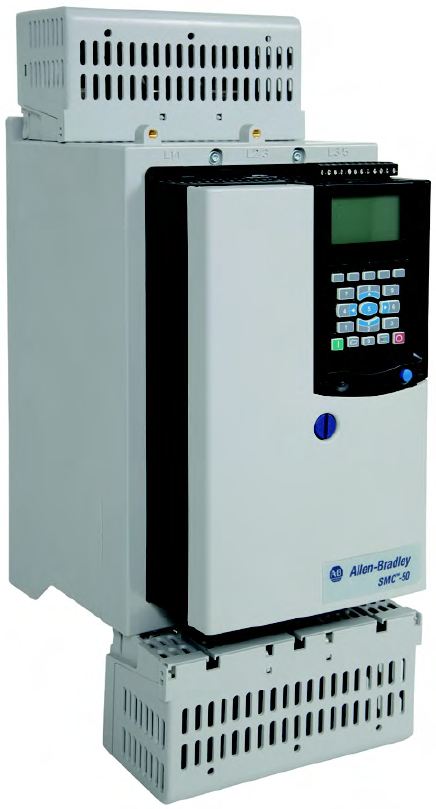

Allen-Bradley Allen-Bradley SMC-50 SOLID STATE MOTOR CONTROLLER 180A 150-SB4NUD
