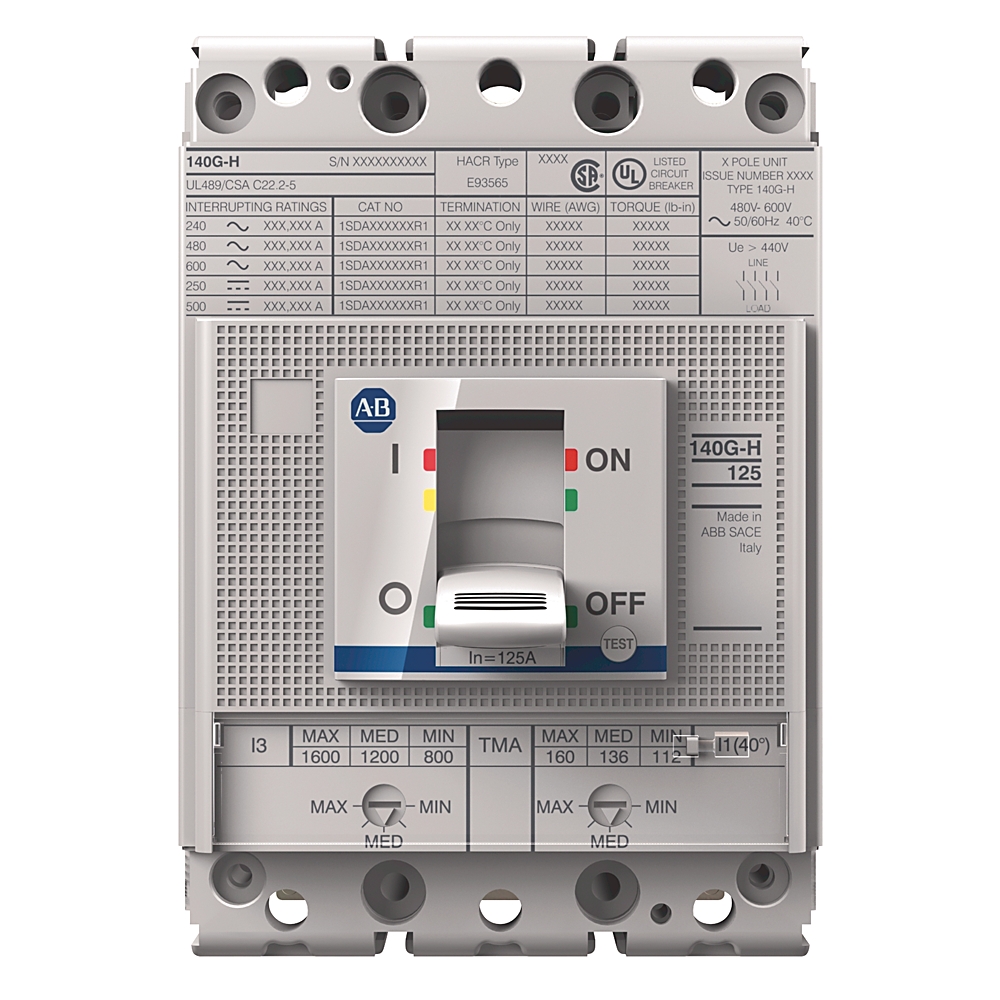

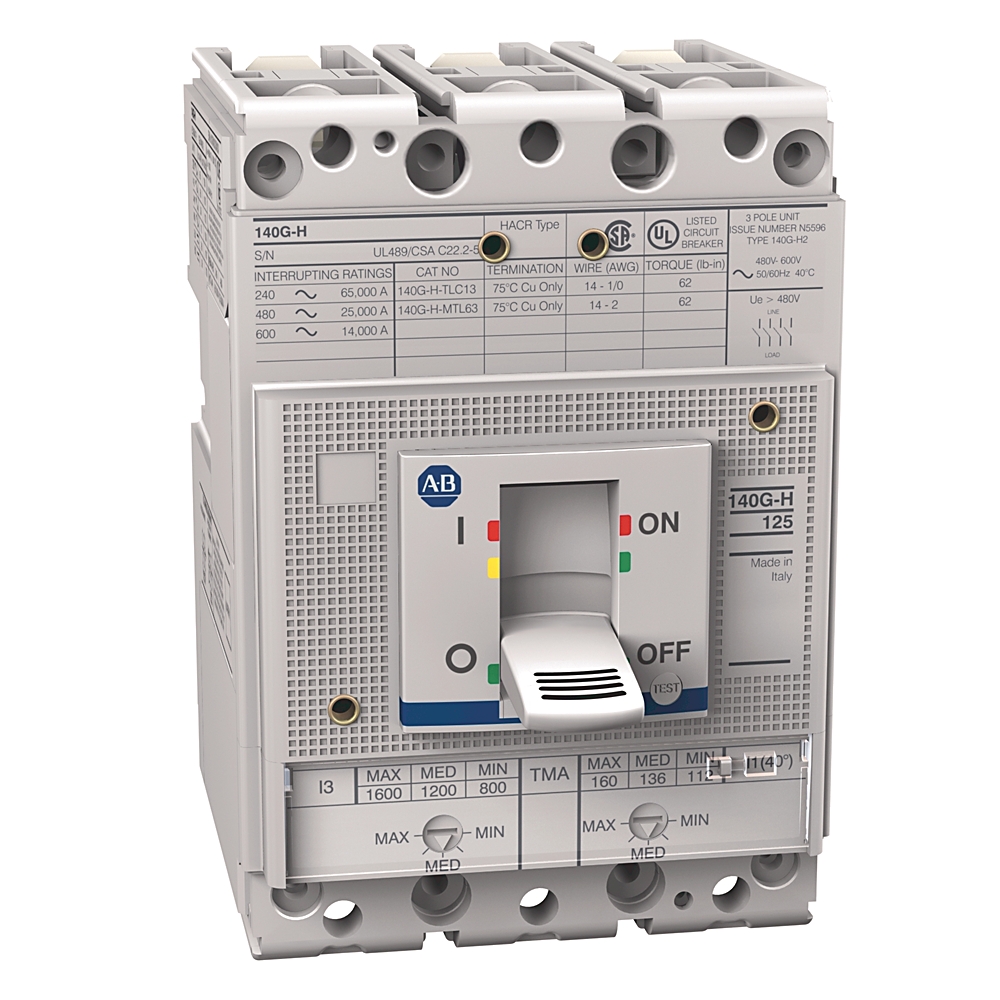

Allen-Bradley 140G 125A H Frame Molded Case Ckt-Bkr 140G-H2H3-C60
Allen-Bradley 140G-H2H3-C60 - Molded Case Circuit Breakers - Width: 90 mm mm; Height: 130 mm mm; Weight: 2.65 lb.
The Allen-Bradley 140G-H2H3-C60 is part of the Molded Case Circuit Breakers range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 90 mm mm and Height: 130 mm mm.
Key manufacturer data on file for this item includes Weight: 2.65 lb; Storage Temperature: -40 °F; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP40; Depth: 82.5 mm; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: 8000 @ 415V AC; Mechanical life operations: 25000 /h; Motor drive optional: true. The complete technical table is shown in the Specifications tab on this page.
| Ambient temperature without derating | 104 °F |
|---|---|
| Build America, Buy America | No |
| Complete device with protection unit | true |
| Degree of protection (IP) | IP40 |
| Depth | 82.5 mm |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | true |
| Electrical life cycle | 8000 @ 415V AC |
| Factory option | None |
| Frame Size | 125 A |
| Height | 130 mm mm |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Integrated earth fault protection | false |
| Interrupting rating | 65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA |
| Lifecycle Status | Active |
| Mechanical life operations | 25000 /h |
| Motor drive integrated | false |
| Motor drive optional | true |
| Number of poles | 3 |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 m (9840 ft) altitude |
| Position of connection for main current circuit | Front side |
| Protection type | Electronic LSI-long and short time, high Instantaneous |
| Protection type—Electronic I (instantaneous trip units) | I3 = 1...10 x In (60...600 A) |
| Protection type—Electronic L (long time trip units) | I1 = 0.4...1 x In (24...60 A), t1 = 3, 12, 36, 60 s |
| Protection type—Electronic S (short time trip units) | I2 = 1...10 x In (60...600 A), t2 = 0.05, 0.1, 0.2, 0.4 s |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated permanent current Iu | 60 A |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 100% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 65kA @ 220...230V AC, 50/60 Hz |
| Rated uninterrupted current (Iu) | 98% of current rating @ 3000 m (9840 ft) altitude |
| Repair Options Available | No |
| Shock | Peak acceleration: 150 m/s² peak, pulse duration 11 ms |
| Storage Temperature | -40 °F |
| Suitable for DIN rail (top hat rail) mounting | false |
| Type of control element | Toggle |
| Type of electrical connection of main circuit | Screw connection |
| Vibration | 2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G |
| Voltage for reverse-fed circuit breaker, max | 480V AC per UL/CSA |
| Watt loss | Electronic type: 4.5 W |
| Weight | 2.65 lb |
| Width | 90 mm mm |
| Wire temperature rating | Cu 75 °C |
| With integrated under voltage release | false |
| With switched-off indicator | false |
