Allen-Bradley 125A H Frame Molded Case Ckt-Bkr 140G-H2F3-D12-KA
Allen-Bradley 140G-H2F3-D12-KA - Molded Case Circuit Breakers - Width: 90 mm mm; Height: 130 mm mm; Weight: 2.65 lb.
The Allen-Bradley 140G-H2F3-D12-KA is part of the Molded Case Circuit Breakers range in our industrial catalog. The manufacturer's published data for this part number specifies Width: 90 mm mm and Height: 130 mm mm.
The specification set recorded for this part number covers Weight: 2.65 lb; Storage Temperature: -40 °F; Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Degree of protection (IP): IP40; Depth: 82.5 mm; Type of electrical connection of main circuit: Screw connection; Device construction: Built-in device fixed built-in technique; Electrical life cycle: 8000 @ 415V AC; Mechanical life operations: 25000 /h; Motor drive optional: true. See the Specifications tab on this page for the full technical table.
| Ambient temperature without derating | 104 °F |
|---|---|
| Build America, Buy America | No |
| Complete device with protection unit | true |
| Degree of protection (IP) | IP40 |
| Depth | 82.5 mm |
| Device construction | Built-in device fixed built-in technique |
| DIN rail (top hat rail) mounting optional | true |
| Electrical life cycle | 8000 @ 415V AC |
| Factory option | 1 NO/NC auxiliary, 250V AC/DC |
| Frame Size | 125 A |
| Height | 130 mm mm |
| Insulation voltage (Ui) | Rated 1000V per IEC |
| Integrated earth fault protection | false |
| Interrupting rating | 65kA @ 240V AC, 50/60 Hz per NEMA, UL, CSA |
| Lifecycle Status | Active |
| Magnetic trip current (Im) | 625 to 1250 A |
| Mechanical life operations | 25000 /h |
| Motor drive integrated | false |
| Motor drive optional | true |
| Number of auxiliary contacts as change-over contact | 1 |
| Number of poles | 3 |
| Operational voltage (Ue) | 90% of voltage rating @ 3000 m (9840 ft) altitude |
| Position of connection for main current circuit | Front side |
| Protection type | T/M-adjustable thermal/adjustable magnetic TMA |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated permanent current Iu | 125 A |
| Rated service short-circuit breaking capacity (Ics) | IEC 60947-2: 100% lcu @ 500V DC, 3-poles in series, thermal-magnetic trip unit only |
| Rated ultimate short-circuit breaking capacity (Icu) | IEC 60947-2: 65kA @ 220...230V AC, 50/60 Hz |
| Rated uninterrupted current (Iu) | 98% of current rating @ 3000 m (9840 ft) altitude |
| Repair Options Available | No |
| Shock | Peak acceleration: 150 m/s² peak, pulse duration 11 ms |
| Storage Temperature | -40 °F |
| Suitable for DIN rail (top hat rail) mounting | false |
| Thermal trip current (Ir) | 87 to 125 A |
| Thermal trip rating, max | 125 A @ ambient temperature 40 °C |
| Type of control element | Toggle |
| Type of electrical connection of main circuit | Screw connection |
| Vibration | 2...13.2 Hz ±1 mm, 13.2...100 Hz ±0.7 G |
| Voltage for reverse-fed circuit breaker, max | 480V AC per UL/CSA |
| Watt loss | Thermal magnetic type: 34.2 W |
| Weight | 2.65 lb |
| Width | 90 mm mm |
| Wire temperature rating | Cu 75 °C |
| With integrated under voltage release | false |
| With switched-off indicator | false |
Frequently Asked Questions
How do I get pricing for 140G-H2F3-D12-KA?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 140G-H2F3-D12-KA?
140G-H2F3-D12-KA is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 140G-H2F3-D12-KA?
Key specifications include Ambient temperature without derating: 104 °F; Build America, Buy America: No; Complete device with protection unit: true; Degree of protection (IP): IP40. The full specification table on this page lists every published attribute for this part.
How quickly can 140G-H2F3-D12-KA ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley 125A H Frame Molded Case Ckt-Bkr 140G-H2F3-D10
Allen-Bradley Allen-Bradley 140G 125A H Frame Molded Case Ckt-Bkr 140G-H2F3-D12
Allen-Bradley Allen-Bradley 140G 125A H Frame Molded Case Ckt-Bkr 140G-H2F3-C90
Allen-Bradley Allen-Bradley 140G 125A H Frame Molded Case Ckt-Bkr 140G-H2H3-C60

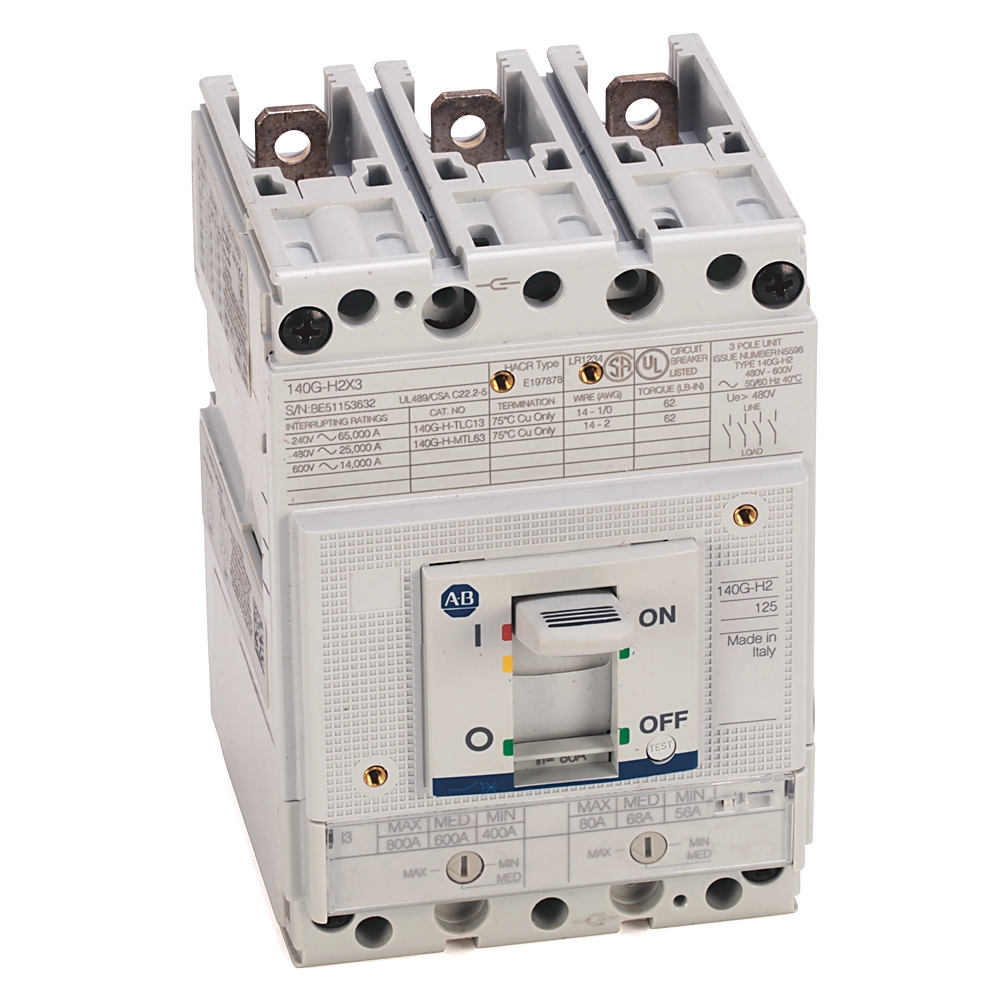

Allen-Bradley Allen-Bradley 125A H Frame Molded Case Ckt-Bkr 140G-H2F3-C80
