Allen-Bradley IEC 96 A Safety Contactor 100S-E96KY22C
Allen-Bradley 100S-E96KY22C - IEC Safety Contactors - Width: Approx 116 mm mm; Length: Approx 70 mm ft; Height: Approx 125.5 mm mm.
The 100S-E96KY22C from Allen-Bradley is listed under IEC Safety Contactors in our catalog. The manufacturer's published data for this part number specifies Width: Approx 116 mm mm and Length: Approx 70 mm ft.
Key manufacturer data on file for this item includes Height: Approx 125.5 mm mm; Function: Non-reversing safety contactor; Ambient temperature: Storage: -40...70 °C (-40...158 °F); Lifecycle Status: Active; Build America, Buy America: No; Repair Options Available: No; Rated control supply voltage at AC 50 Hz: 48 V; Rated control supply voltage at AC 60 Hz: 48 V; Type of electrical connection of main circuit: Screw connection; Voltage type for actuating: AC/DC; Number of auxiliary contacts as normally open contact: 2; Number of auxiliary contacts as normally closed contact: 2. See the Specifications tab on this page for the full technical table.
| Altitude, max | 3000 m of installation site |
|---|---|
| Ambient temperature | Storage: -40...70 °C (-40...158 °F) |
| Build America, Buy America | No |
| Climatic withstand | Category B according to IEC 60947-1, annex Q |
| DIN fuses (gG) current rating | Type 2 (per IEC 60947-4-1): 160A @ 400V, 100 kA available fault current |
| Electromagnetic compatibility | IEC 60947-1 - Environment A and B (100-E09...E38 only.) |
| Features | Mirror contact performance on auxiliary contacts, Red N.C. low-power auxiliary contacts used for ftdback circuit, SUVA third-party certification, AC/ DC operating coils, Mirror contact symbol on front |
| FLA | 115A @ 600V, 3-phase per UL/CSA HVAC applications |
| Function | Non-reversing safety contactor |
| General purpose current (enclosed) | 80A @ 600V per UL/CSA |
| Height | Approx 125.5 mm mm |
| Length | Approx 70 mm ft |
| Lifecycle Status | Active |
| LRA | 690 A @ 440-480V AC, 3-phase per UL/CSA HVAC applications |
| MCCB current rating | Type 2 (per IEC 60947-4-1): 880A @ 400V, 70 kA available fault current |
| Number of auxiliary contacts as normally closed contact | 2 |
| Number of auxiliary contacts as normally open contact | 2 |
| Operating limits, dropout | (≤0.60) x Us @ DC control |
| Operating limits, pick-up | (0.85...1.1) x Us @ 50/60 Hz |
| Operating time, closing delay | 42 ms |
| Operating time, opening delay | 17 ms |
| Optional accessories | Side-mount auxiliary contacts, Mechanical interlocks, IP20 terminal shields |
| Protection class | Contactor main contact: IP00 |
| Rated control supply voltage at AC 50 Hz | 48 V |
| Rated control supply voltage at AC 60 Hz | 48 V |
| Rated control supply voltage at DC | 48 V |
| Rated impulse voltage withstand (Uimp) | 8 kV |
| Rated isolation voltage (Ui) | 600V per UL, CSA |
| Rated operational current (Ie) | 96A @ 440V, AC-2, AC-3 switching of 3-phase motors (50 Hz), ambient temperature 60 °C (140 °F) |
| Rated operational current and power | 56A @ 115V AC, 500000 electrical ops, 1-phase per UL/CSA elevator duty |
| Rated operational current and power (enclosed) | 92 A @ 200-208V, 3-phase per UL/CSA |
| Rated operational power (Pe) | 93 kW @ 415V, AC-1 active power load (50/60 Hz), ambient temperature 40 °C (104 °F) |
| Rated voltage (Ue) | 24V @ 48V, 110V @ 220V, 440V DC |
| Rating for switching AC motors | 3-poles: 75Hp @ 575V, AC-2, AC-3 (60 Hz) |
| Repair Options Available | No |
| Shock resistance | IEC 60068-2-27 |
| Standard coil, hold-in | 4VA/2 W @ 48...130V AC/DC |
| Standard coil, pick-up | 40VA/40 W @ 48...130V AC/DC |
| Switching of DC loads | 3-poles in series: 130A @ 220V (Shunt-wound motors starting, reverse current breaking, reversing, stepping DC-3 at 60 °C) |
| Switching of lighting loads | Tungsten lA: 115A @ 600V, 3-phase (break all lines) per UL/CSA |
| Switching of power transformers | Apparent power: 87 kVA @ 480V @ 60Hz (n = 20) |
| Type of electrical connection of main circuit | Screw connection |
| UL class J and CSA HRCI-J fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 100 kA available fault current |
| UL class RK5 fuses rating | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 200A @ 600V, 10 kA available fault current |
| UL inverse-time circuit breaker | Type 1 Combination (per UL 60947 and CSA 22.2 No. 14): 250A @ 600V, 50 kA available fault current |
| Vibration resistance | IEC 60068-2-6 |
| Voltage type for actuating | AC/DC |
| Width | Approx 116 mm mm |
Frequently Asked Questions
How do I get pricing for 100S-E96KY22C?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 100S-E96KY22C?
100S-E96KY22C is a Allen-Bradley part. KKM Solutions sources Allen-Bradley components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 100S-E96KY22C?
Key specifications include Altitude, max: 3000 m of installation site; Ambient temperature: Storage: -40...70 °C (-40...158 °F); Build America, Buy America: No; Climatic withstand: Category B according to IEC 60947-1, annex Q. The full specification table on this page lists every published attribute for this part.
How quickly can 100S-E96KY22C ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Allen-Bradley Allen-Bradley IEC 26 A Safety Contactor 100S-E26KD31C
Allen-Bradley Allen-Bradley IEC 190 A Safety Contactor 100S-E190KD12C

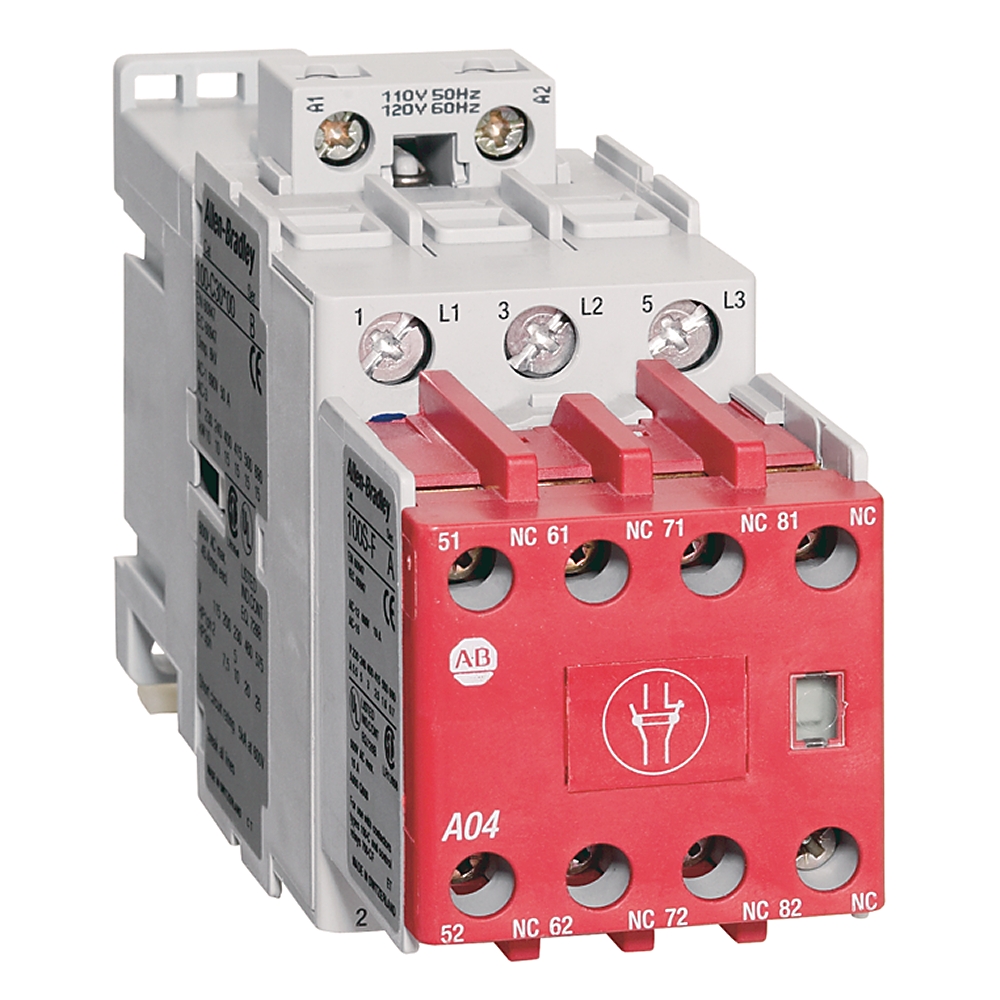

Allen-Bradley Allen-Bradley 43 A Safety Contactor 100S-C43UEJ14BC

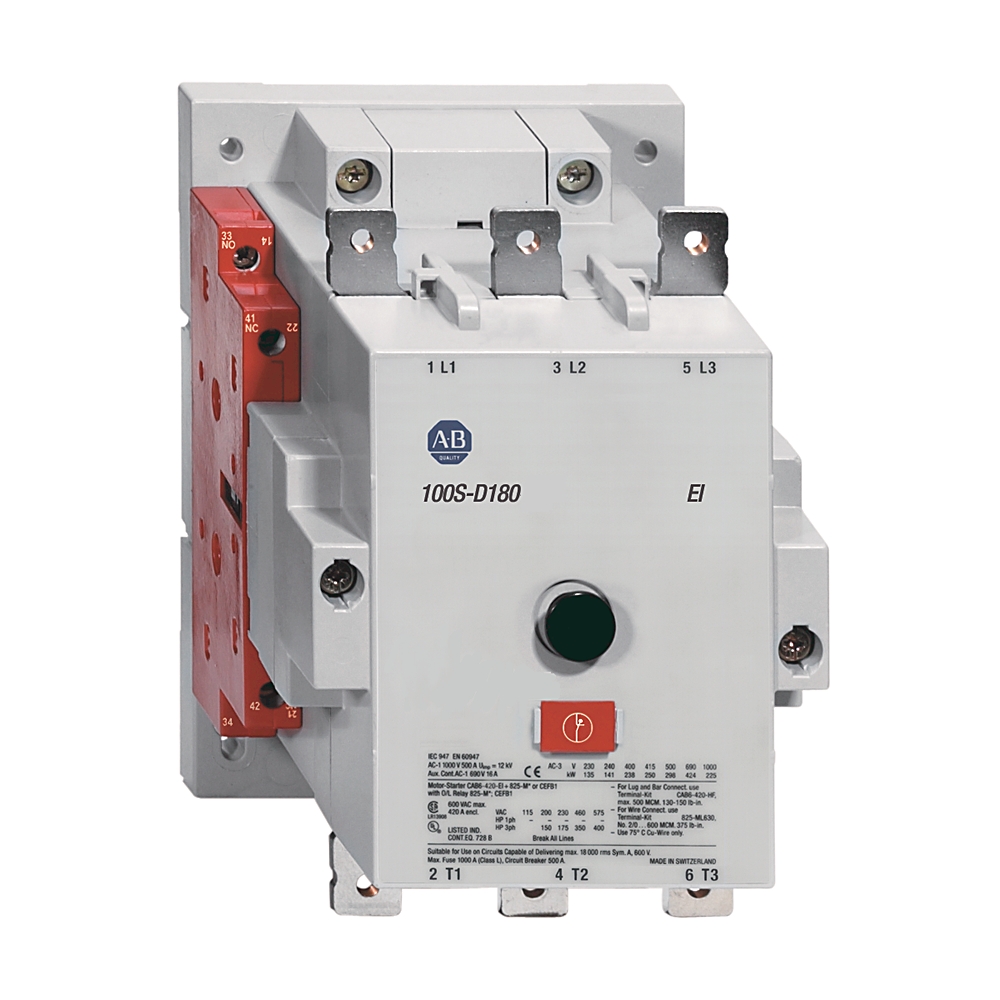

Allen-Bradley Allen-Bradley 140 A MCS D Safety Contactor 100S-D140EZY22C

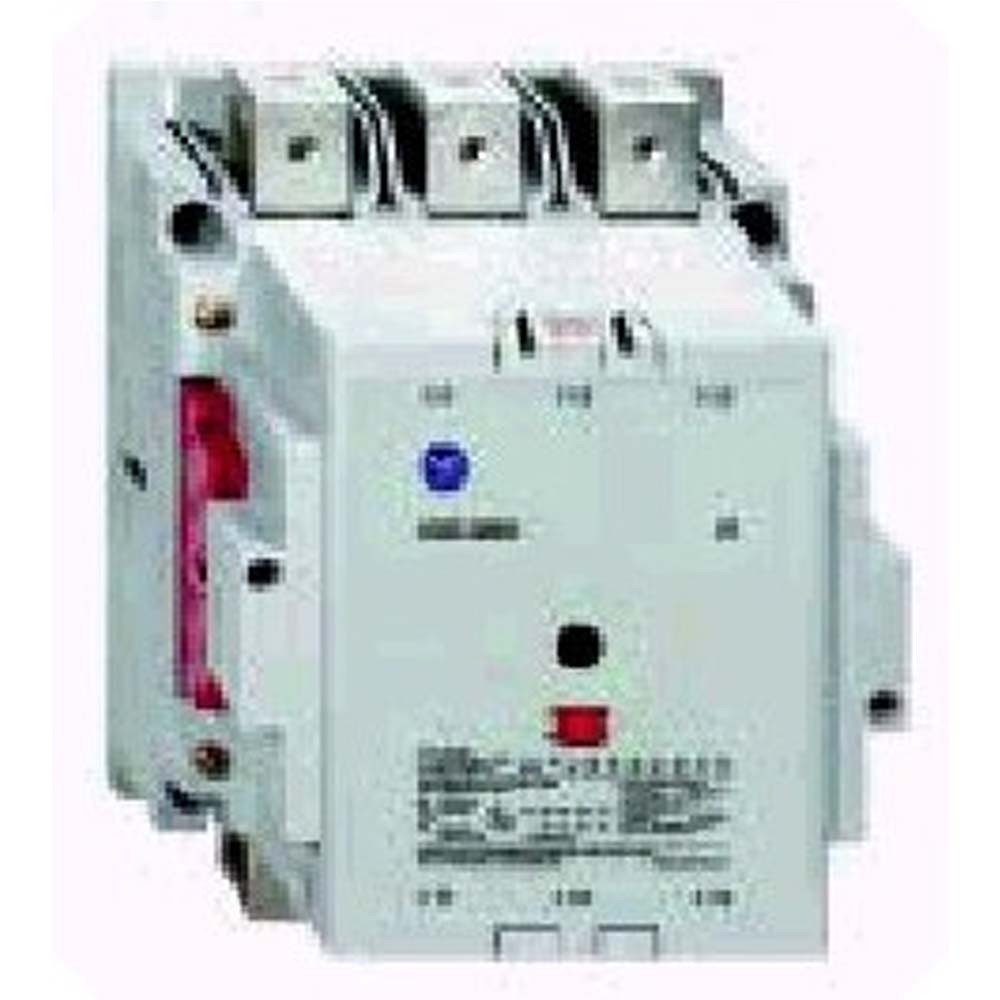

Allen-Bradley Allen-Bradley 630 A MCS D Safety Contactor 100S-D630EA22C
