Weidmüller Feed-through terminal block WDU 4
Feed-through terminal block, Screw connection, dark beige, 4 mm², 32 A, 800 V, Number of connections: 2
| 1 | Number of levels |
|---|---|
| Ambient temperature | -60 °C…85 °C |
| Basic material | Wemid |
| Certificate No. (ATEX) | DEMKO14ATEX1338U |
| Certificate No. (cURusEX) | E184763 |
| Certificate No. (IECEX) | IECEXULD14.0005U |
| Certificate No. (UR) | E60693 |
| Colour | dark beige |
| Continuous operating temp., max. | 130°C |
| Continuous operating temp., min. | -60°C |
| Current (ATEX) | 32 A |
| Current (IECEX) | 32 A |
| Depth | 46.5 mm |
| Depth (inches) | 1.831 inch |
| Depth including DIN rail | 47 mm |
| Ex 2014/34/EU label | II 2 G D |
| for plug-in cross-connector | for screwable cross-connection |
| GTIN (EAN) | 4008190150617 |
| Height | 60 mm mm |
| Height (inches) | 2.362 inch |
| Marking EN 60079-7 | Ex eb II C Gb |
| Max. voltage (ATEX) | 690 V |
| Max. voltage (IECEX) | 690 V |
| Net weight | 9.57 g |
| One end without connector | End cover plate required |
| Order No. | 1020100000 |
| Qty. | 100 items |
| REACH SVHC | No SVHC above 0.1 wt% |
| ROHS | Conform |
| RoHS Compliance Status | Compliant without exemption |
| Storage Temperature | -25 °C...55 °C |
| Type | WDU 4 |
| UL 94 flammability rating | V-0 |
| Version | Screw connection |
| Width | 6.1 mm mm |
| Width (inches) | 0.24 inch |
| Wire cross section max. (ATEX) | 4 mm² |
| Wire cross section max. (IECEX) | 4 mm² |
| Yes | Number of potentials |
Frequently Asked Questions
How do I get pricing for 1020100000?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 1020100000?
1020100000 is a Weidmüller part. KKM Solutions sources Weidmüller components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 1020100000?
Key specifications include 1: Number of levels; Ambient temperature: -60 °C…85 °C; Basic material: Wemid; Certificate No. (ATEX): DEMKO14ATEX1338U. The full specification table on this page lists every published attribute for this part.
How quickly can 1020100000 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
Weidmüller Weidmüller Feed-through terminal block WDU 2.5
Weidmüller Weidmüller Feed-through terminal block WDU 6
Weidmüller Weidmüller Feed-through terminal block WDU 10
Weidmüller Weidmüller Feed-through terminal block WDU 16

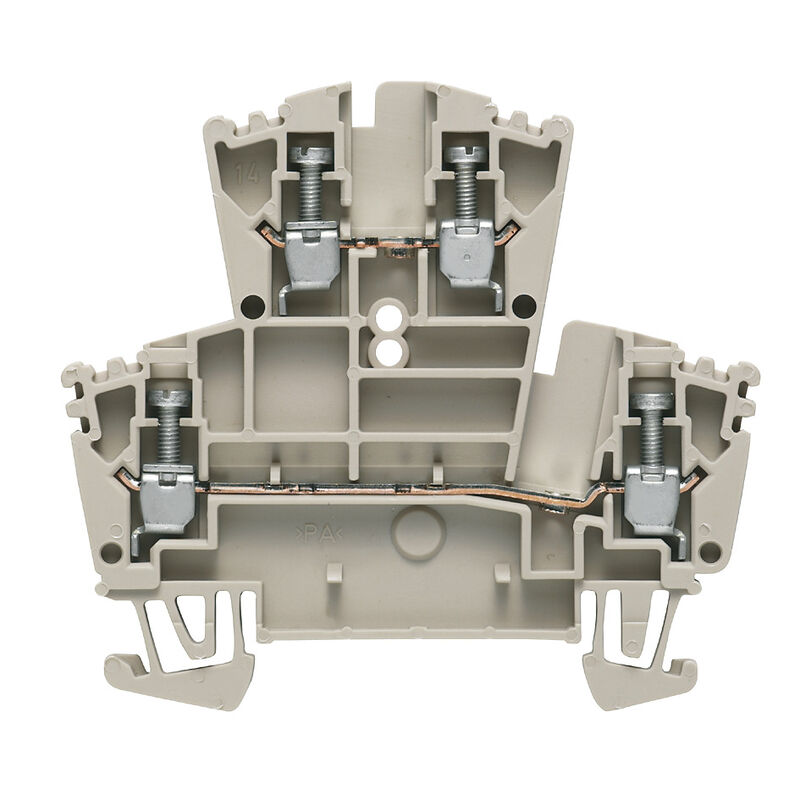

Weidmuller Weidmuller WDK 2.5
