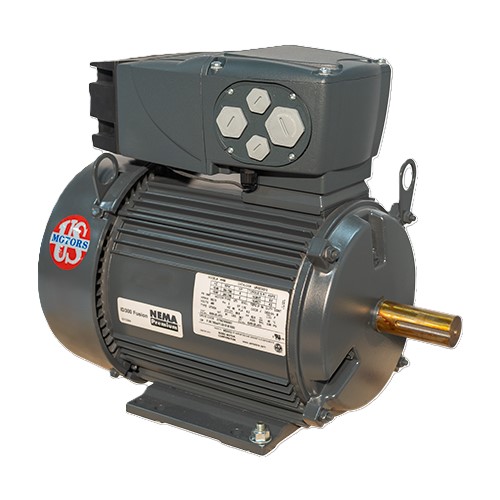

US Motors U7V1C3ID13 7.5 HP 2-Pole TEFC-IP54 3-Phase 3525 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F3 |
| Breakdown Torque | 283 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 213 |
| Full Load Amps Primary | 9 |
| Hertz | 60 |
| Horsepower | 7.5 HP |
| Insulation Class | F |
| Kilowatts | 5.6 |
| Kva Code Letter | G |
| Locked Rotor Amps | 58.7 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 162 |
| Motor Enclosure | TEFC-IP54 |
| Motor Type | UTI |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 89.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6206-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Rotation | DUAL |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 10.3 |
| Shaft Code | T |
| Shaft End Bearing | 6208-2Z-J/C3 |
| Shipping Weight | 50 |
| Speed | 3525 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts Primary | 460 |
Frequently Asked Questions
How do I get pricing for U7V1C3ID13?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the U7V1C3ID13?
U7V1C3ID13 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of U7V1C3ID13?
Key specifications include Ambient: 40; Assembly Position: F3; Breakdown Torque: 283; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can U7V1C3ID13 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors U7P3DCR 7.5 HP 6-Pole TE 3-Phase 1180…
US Motors US Motors UFF0010XZE-A21A 1/10 HP Electric Motor
US Motors US Motors U7P1H 7.5 HP 2-Pole TEFC 3-Phase 3534…

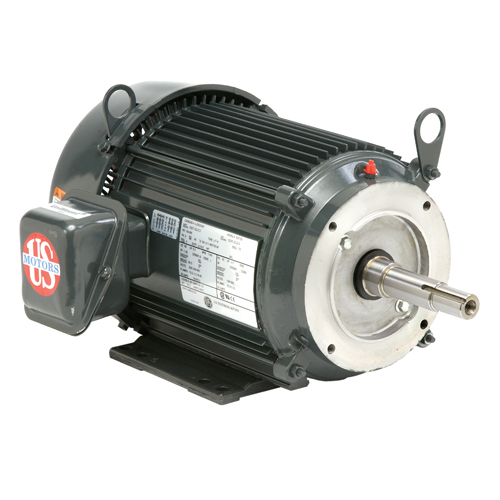

US Motors US Motors UJ10P2DJ 10 HP 4-Pole TEFC 3-Phase 1760…
