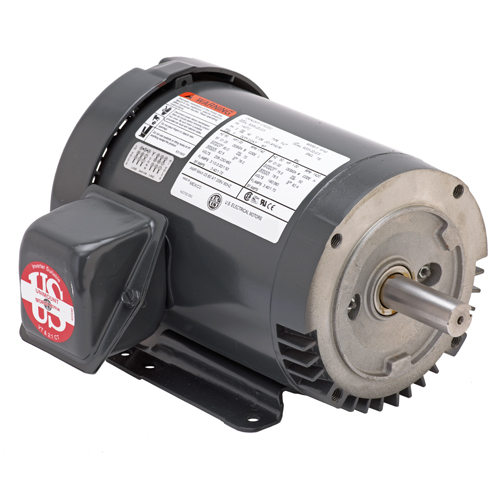

US Motors U12S2AC .5 HP 4-Pole TEFC 3-Phase 1770 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 457 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 56 |
| Full Load Amps Primary | 2/1 |
| Hertz | 60 |
| Horsepower | .5 HP |
| Insulation Class | F |
| Kilowatts | 0.4 |
| Kva Code Letter | M |
| Locked Rotor Amps | 7.4 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 296 |
| Motor Enclosure | TEFC |
| Motor Type | UT |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 78.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Rotation | DUAL |
| Rpm 2 | 1770 |
| Rpm 3 | 1765 |
| Service Factor | 1.25 |
| Service Factor Amps Primary | 2.2/1.1 |
| Shaft Code | C |
| Shaft End Bearing | 6203-2Z-J/C3 |
| Shipping Weight | 30 |
| Speed | 1770 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts 3 | 208 |
| Volts Primary | 230/460 |
Frequently Asked Questions
How do I get pricing for U12S2AC?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the U12S2AC?
U12S2AC is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of U12S2AC?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 457; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can U12S2AC ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors U12P1GC .5 HP 2-Pole TEFC 3-Phase 3540…
US Motors US Motors U15P1DFC 15 HP 2-Pole TEFC 3-Phase 3518…

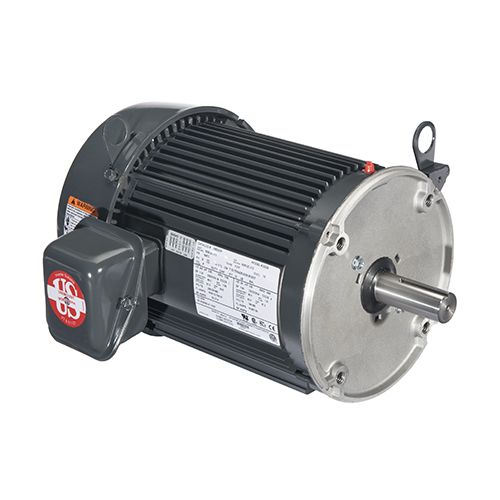

US Motors US Motors U10P3DCR 10 HP 6-Pole TEFC 3-Phase 1180…
