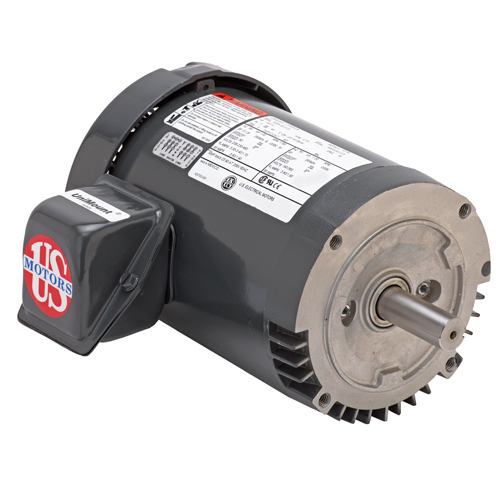

US Motors T14S3DCR .25 HP 6-Pole TEFC 3-Phase 1140 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 89.58 |
| Breakdown Torque Uom | OZFT |
| Frme | 56 |
| Full Load Amps Primary | 1.4-1.4/0.7 |
| Hertz | 60 |
| Horsepower | .25 HP |
| Insulation Class | B |
| Kilowatts | 0.2 |
| Kva Code Letter | L |
| Locked Rotor Amps | 6.24 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 63.61 |
| Motor Enclosure | TEFC |
| Motor Type | FHP |
| Mounting | C-FACE |
| Nema Nominal Efficiency | 75.5 |
| Number Speeds | 1 |
| Opposite End Bearing | BALL |
| Phasetype | 3_POLYPHASE |
| Poles | 6 |
| Rotation | CW/CCW |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 1.6-1.6/0.8 |
| Shaft Code | C |
| Shaft End Bearing | BALL |
| Shipping Weight | 27 |
| Speed | 1140 RPM |
| Stack | 1.75 |
| Stator Diameter | 6.3 |
| Thermal protection | NONE |
| Volts | 208 |
| Volts 2 | 230 |
| Volts 3 | 460 |
| Volts Primary | 208-230/460 V |
Frequently Asked Questions
How do I get pricing for T14S3DCR?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the T14S3DCR?
T14S3DCR is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of T14S3DCR?
Key specifications include Ambient: 40; Breakdown Torque: 89.58; Breakdown Torque Uom: OZFT; Frme: 56. The full specification table on this page lists every published attribute for this part.
How quickly can T14S3DCR ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

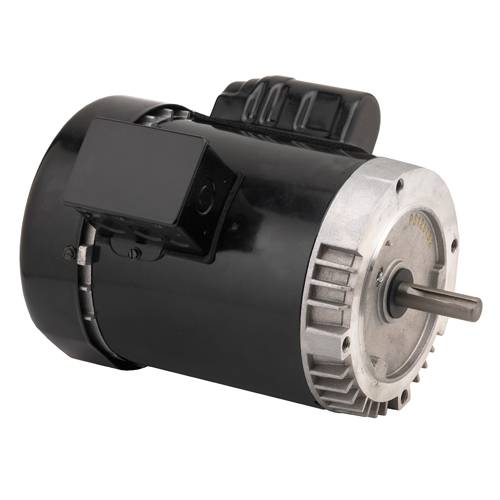

US Motors US Motors T14C3JCR .25 HP 6-Pole TEFC 1-Phase 1140…
US Motors US Motors T16B2N49 .167 HP 4-Pole TEFC 1-Phase 1725…

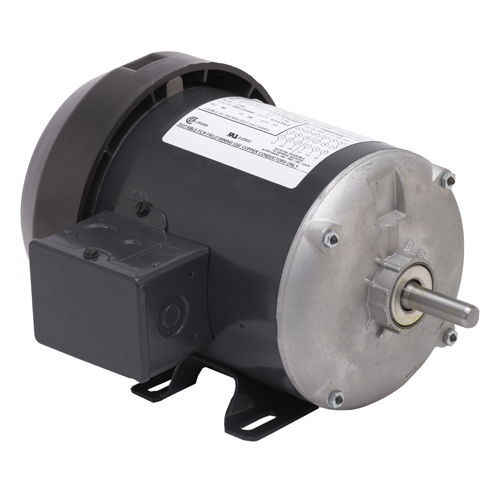

US Motors US Motors T13B1N4 .33 HP 2-Pole TEFC 1-Phase 3450…

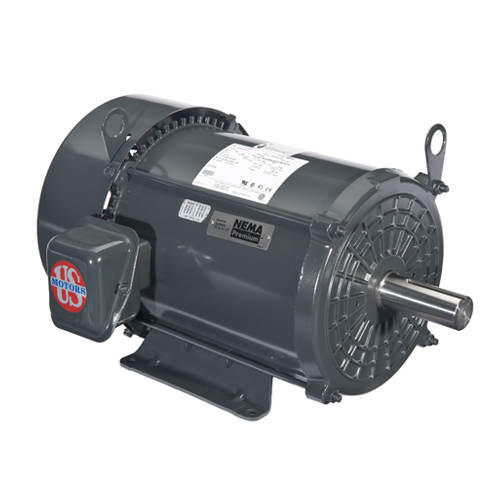

US Motors US Motors T1P2AHZ 1 HP 4-Pole TEFC 3-Phase 1725…
