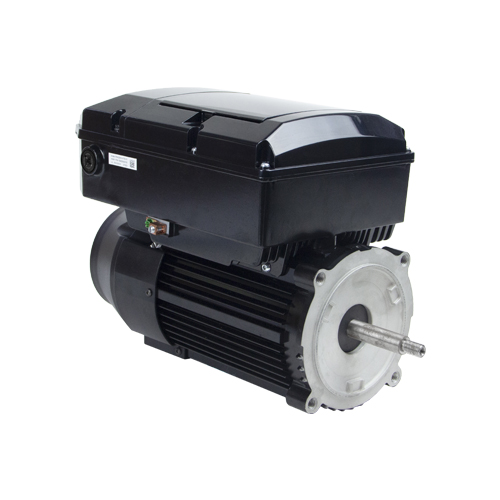

US Motors NPTT225 2.25 HP 10-Pole TEFC 1-Phase 3450 RPM Electric Motor
| Ambient | 50 |
|---|---|
| Breakdown Torque Uom | OZFT |
| Frme | 56 |
| Full Load Amps Primary | 9.5 |
| Hertz | 50 |
| Hertz 2 | 60 |
| Horsepower | 2.25 HP |
| Insulation Class | F |
| Kva Code Letter | A |
| Locked Rotor Torque Uom | OZFT |
| Motor Enclosure | TEFC |
| Motor Type | FHP |
| Mounting | J-FACE |
| Nema Nominal Efficiency | 84 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203 |
| Phasetype | 1_BRUSHLESS PERMANEN |
| Poles | 10 |
| Rotation | CCW DRIVE END |
| Service Factor | 1 |
| Shaft Code | J |
| Shaft End Bearing | 6203 |
| Shipping Weight | 35 |
| Speed | 3450 RPM |
| Stack | 2.875 |
| Thermal protection | ELECTRONICALLY |
| Volts | 230 |
| Volts Primary | 230 V |
Frequently Asked Questions
How do I get pricing for NPTT225?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the NPTT225?
NPTT225 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of NPTT225?
Key specifications include Ambient: 50; Breakdown Torque Uom: OZFT; Frme: 56; Full Load Amps Primary: 9.5. The full specification table on this page lists every published attribute for this part.
How quickly can NPTT225 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
