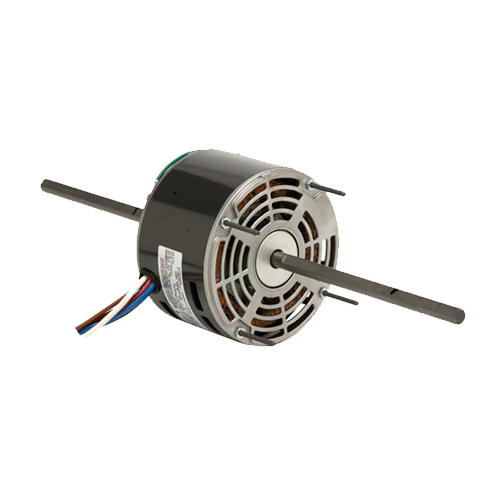

US Motors NA1006 .125 HP 6-Pole ODP 1-Phase 1075 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 18.1 |
| Breakdown Torque Uom | OZFT |
| Frme | 48 |
| Full Load Amps Primary | 0.9 |
| Hertz | 60 |
| Hertz 2 | 50 |
| Horsepower | .125 HP |
| Insulation Class | B |
| Kilowatts | 0.1 |
| Locked Rotor Amps | 1.73 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 8.432 |
| Motor Enclosure | ODP |
| Motor Type | FHP |
| Mounting | STUD |
| Number Speeds | 3 |
| Opposite End Bearing | SELF-ALIGN |
| Phasetype | 1_PERMANENT SPLIT CA |
| Poles | 6 |
| Rotation | CCW LEAD END |
| Runcapmfd | 5 |
| Runcapvolts | 370 |
| Service Factor | 1 |
| Service Factor Amps Primary | 0.9 |
| Shaft Code | Y |
| Shaft End Bearing | SELF-ALIGN |
| Shipping Weight | 9 |
| Speed | 1075 RPM |
| Stack | 1 |
| Stator Diameter | 5.5 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 208 |
| Volts 2 | 230 |
| Volts Primary | 208-230 V |
Frequently Asked Questions
How do I get pricing for NA1006?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the NA1006?
NA1006 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of NA1006?
Key specifications include Ambient: 40; Breakdown Torque: 18.1; Breakdown Torque Uom: OZFT; Frme: 48. The full specification table on this page lists every published attribute for this part.
How quickly can NA1006 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

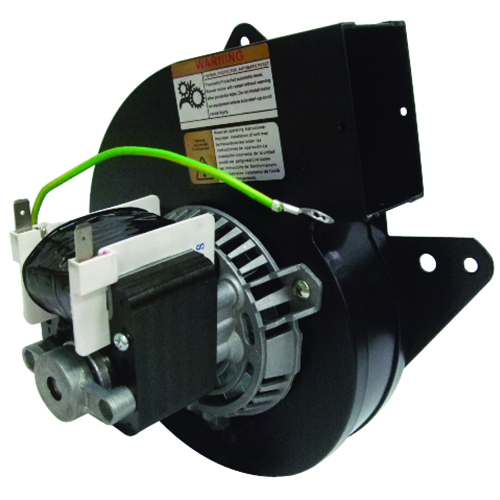

US Motors US Motors N200 1/30 HP 2-Pole OPEN 1-Phase 3000…
US Motors US Motors NEK2121GK1 1/3 HP Electric Motor
US Motors US Motors NEK2140Z1 1/2 HP Electric Motor

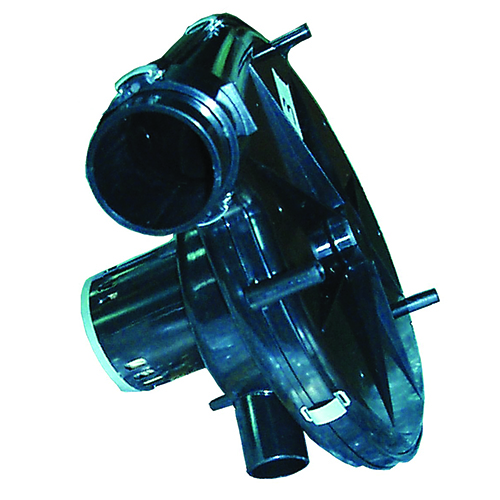

US Motors US Motors N173 1/25 HP 2-Pole ODP 1-Phase 3350…
