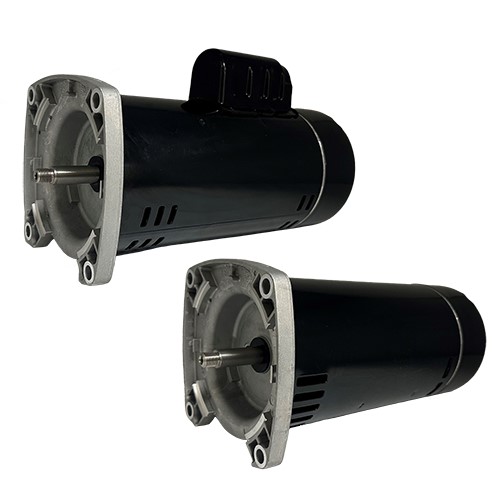

US Motors JS1002-2V 1 HP 2-Pole ODP 1-Phase 3450 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque Uom | OZFT |
| Frme | 48 |
| Full Load Amps Primary | 13.5/7.0 |
| Hertz | 60 |
| Horsepower | 1 HP |
| Insulation Class | B |
| Kilowatts | 0.8 |
| Kva Code Letter | J |
| Locked Rotor Torque Uom | OZFT |
| Motor Enclosure | ODP |
| Motor Type | SOJ |
| Mounting | SQUARE FLANGE |
| Number Speeds | 1 |
| Opposite End Bearing | 6203 |
| Phasetype | 1_CAPACITOR START |
| Poles | 2 |
| Rotation | CW LEAD END |
| Service Factor | 1.65 |
| Service Factor Amps Primary | 18.5/9.3 |
| Shaft Code | Y |
| Shaft End Bearing | 6203 |
| Shipping Weight | 24 |
| Speed | 3450 RPM |
| Stack | 3 |
| Startcapmfd | 198.45 |
| Stator Diameter | 5.5 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 115 |
| Volts 2 | 230 |
| Volts Primary | 115/230 V |
Frequently Asked Questions
How do I get pricing for JS1002-2V?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the JS1002-2V?
JS1002-2V is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of JS1002-2V?
Key specifications include Ambient: 40; Breakdown Torque Uom: OZFT; Frme: 48; Full Load Amps Primary: 13.5/7.0. The full specification table on this page lists every published attribute for this part.
How quickly can JS1002-2V ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

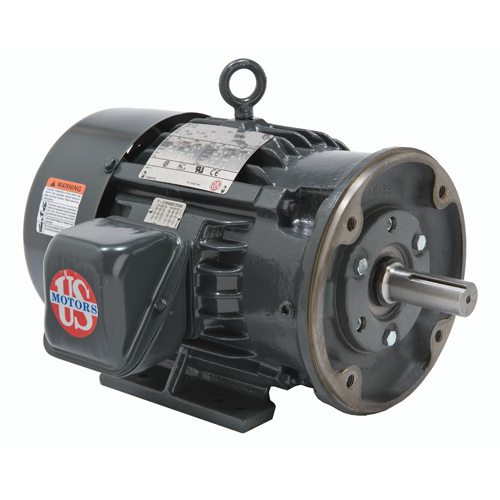

US Motors US Motors JL61 30 HP 2-Pole TEFC 3-Phase 3558…

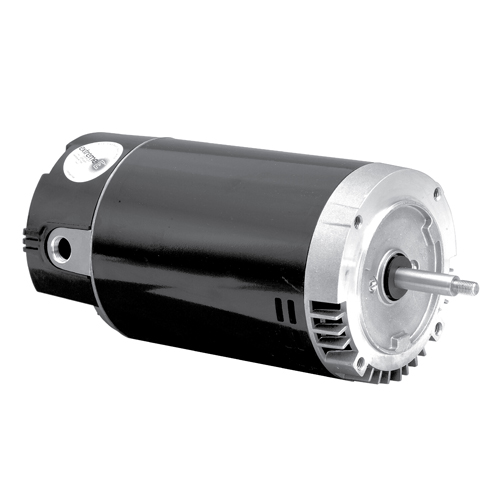

US Motors US Motors K063ERB4769013J 3 HP 2-Pole ODP 1-Phase 3450…
US Motors US Motors HW68 10 HP 2-Pole TEFC 3-Phase 3534…

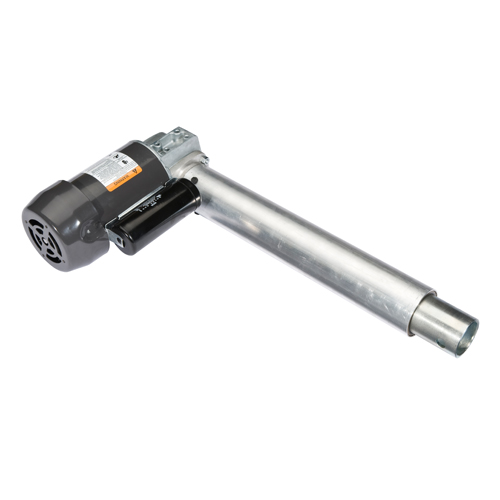

US Motors US Motors K37MYA283572 1-Phase 9 RPM Electric Motor

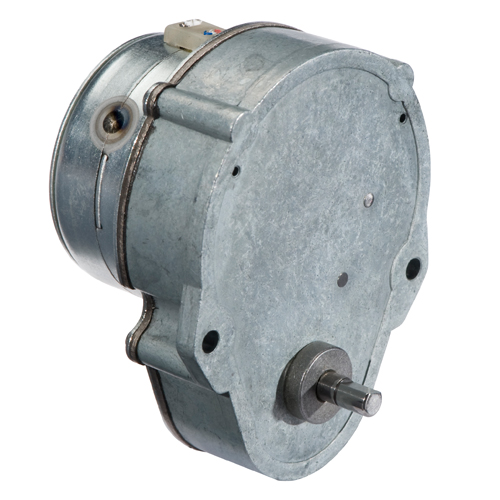

US Motors US Motors LSG42012E90P 4-Phase 2 RPM Electric Motor
