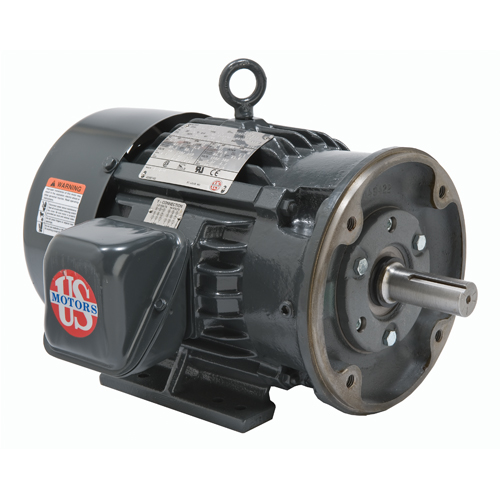

US Motors HD5P1EC 5 HP 2-Pole TEFC-IP54 3-Phase 3525 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 324 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 184 |
| Full Load Amps Primary | 12.3/6.1 |
| Hertz | 60 |
| Hertz 2 | 50 |
| Horsepower | 5 HP |
| Insulation Class | F |
| Kilowatts | 3.7 |
| Kva Code Letter | J |
| Locked Rotor Amps | 50 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 286 |
| Motor Enclosure | TEFC-IP54 |
| Motor Type | CTE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 88.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6205-2Z-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Rotation | DUAL |
| Rpm 2 | 3525 |
| Rpm 3 | 3500 |
| Rpm 4 | 2910 |
| Rpm 5 | 2910 |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 14/7 |
| Shaft Code | TC |
| Shaft End Bearing | 6206-2Z-J/C3 |
| Shipping Weight | 90 |
| Speed | 3525 RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts 3 | 208 |
| Volts 4 | 400 |
| Volts 5 | 200 |
| Volts Primary | 230/460 |
Frequently Asked Questions
How do I get pricing for HD5P1EC?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the HD5P1EC?
HD5P1EC is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of HD5P1EC?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 324; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can HD5P1EC ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

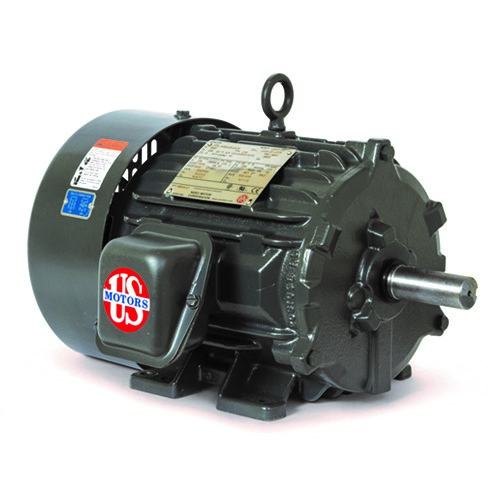

US Motors US Motors HD40P1ES 40 HP 2-Pole TEFC-IP54 3-Phase 3561…
