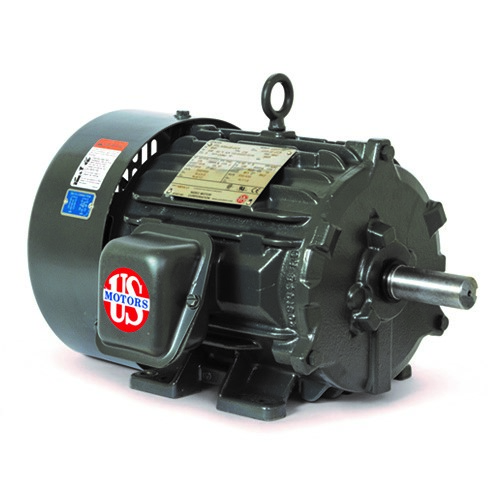

US Motors GC05 50 HP 4-Pole TEFC 3-Phase 1780 & 1475 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 262 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 326 |
| Full Load Amps Primary | 112/56 |
| Hertz | 60 & 50 |
| Hertz 2 | 50 |
| Horsepower | 50 HP HP |
| Insulation Class | F |
| Kilowatts | 37.3 |
| Kva Code Letter | G |
| Locked Rotor Amps | 387.3 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 227 |
| Motor Enclosure | TEFC |
| Motor Type | CTE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 94.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6211-2Z-J/C3 |
| Phasetype | 3 |
| Poles | 4 |
| Rotation | DUAL |
| Rpm 2 | 1780 |
| Rpm 3 | 1770 |
| Rpm 4 | 1475 |
| Rpm 5 | 1475 |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 130/65 |
| Shaft Code | T |
| Shaft End Bearing | 6311-2Z-J/C3 |
| Shipping Weight | 425 |
| Speed | 1780 & 1475 RPM RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts 3 | 208 |
| Volts 4 | 400 |
| Volts 5 | 200 |
| Volts Primary | 230/460 & 200/400 V |
Frequently Asked Questions
How do I get pricing for GC05?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the GC05?
GC05 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of GC05?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 262; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can GC05 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors GC02 50 HP 2-Pole TEFC 3-Phase 3560…

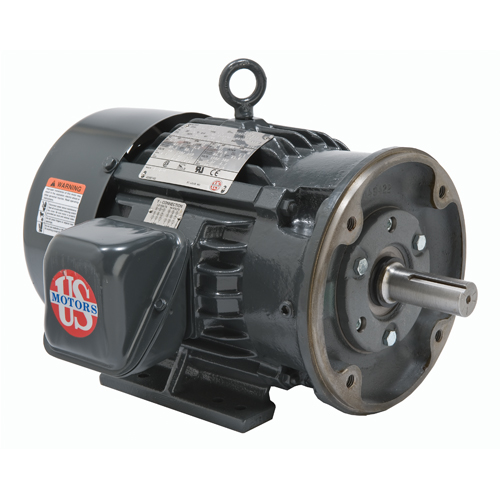

US Motors US Motors GE19 7 1/2 HP 2-Pole TEFC 3-Phase…
