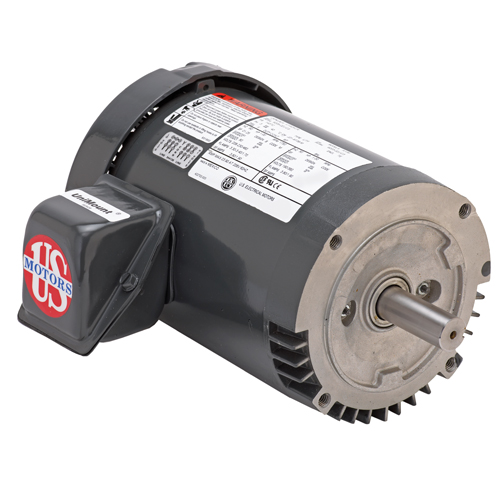

US Motors F050 3/4 HP 4-Pole TEFC 3-Phase 1750 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | NA |
| Breakdown Torque | 434 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 56 |
| Full Load Amps Primary | 2.6-2.7/1.3 |
| Hertz | 60 |
| Horsepower | 3/4 HP HP |
| Insulation Class | F |
| Kilowatts | 0.6 |
| Kva Code Letter | L |
| Locked Rotor Amps | 9.3 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 316 |
| Motor Enclosure | TEFC |
| Motor Type | UTF |
| Mounting | HORZ-FOOTLESS |
| Nema Nominal Efficiency | 78.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6203-2Z-J/C3 |
| Phasetype | 3 |
| Poles | 4 |
| Rotation | DUAL |
| Rpm 2 | 1750 |
| Rpm 3 | 1740 |
| Service Factor | 1.25 |
| Service Factor Amps Primary | 3.1-3/1.5 |
| Shaft Code | C |
| Shaft End Bearing | 6203-2Z-J/C3 |
| Shipping Weight | 28 |
| Speed | 1750 RPM RPM |
| Startcapmfd | N\A |
| Volts | 460 |
| Volts 2 | 230 |
| Volts 3 | 208 |
| Volts Primary | 230/460 V |
Frequently Asked Questions
How do I get pricing for F050?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the F050?
F050 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of F050?
Key specifications include Ambient: 40; Assembly Position: NA; Breakdown Torque: 434; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can F050 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
