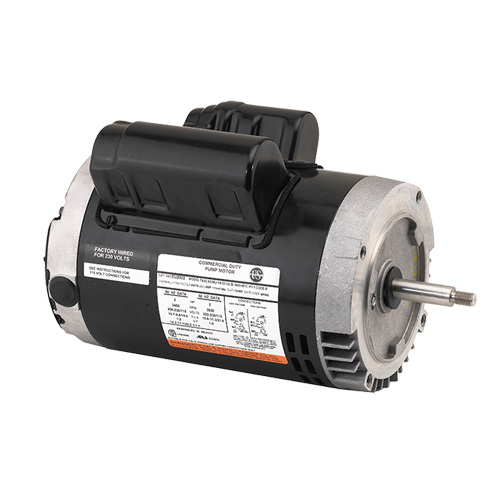

US Motors EC2002 2 HP 2-Pole ODP 1-Phase 3450 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 118 |
| Breakdown Torque Uom | OZFT |
| Frme | 56 |
| Full Load Amps Primary | 19.6/10.7-9.8 |
| Hertz | 60 |
| Hertz 2 | 50 |
| Horsepower | 2 HP |
| Insulation Class | B |
| Kilowatts | 1.5 |
| Kva Code Letter | G |
| Locked Rotor Amps | 87.42 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 63.23 |
| Motor Enclosure | ODP |
| Motor Type | FHP |
| Mounting | C-FACE |
| Number Speeds | 1 |
| Opposite End Bearing | 6203 |
| Phasetype | 1_CAPACITOR START - |
| Poles | 2 |
| Rotation | CCW DRIVE END |
| Rpm 2 | 2850 |
| Rpm 4 | 2850 |
| Runcapmfd | 30 |
| Runcapvolts | 370 |
| Service Factor | 1.2 |
| Service Factor Amps Primary | 22.2/12.2-11.1 |
| Shaft Code | C |
| Shaft End Bearing | 6203 |
| Shipping Weight | 32 |
| Speed | 3450 RPM |
| Stack | 2.75 |
| Startcapmfd | 208 |
| Stator Diameter | 6.3 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 115 |
| Volts 2 | 208 |
| Volts 3 | 230 |
| Volts 4 | 110 |
| Volts 5 | 220 |
| Volts Primary | 115/208-230 & 110/220 V |
Frequently Asked Questions
How do I get pricing for EC2002?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the EC2002?
EC2002 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of EC2002?
Key specifications include Ambient: 40; Breakdown Torque: 118; Breakdown Torque Uom: OZFT; Frme: 56. The full specification table on this page lists every published attribute for this part.
How quickly can EC2002 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors EAF61E-C1-NABA 5.0 Ton HP Electric Motor

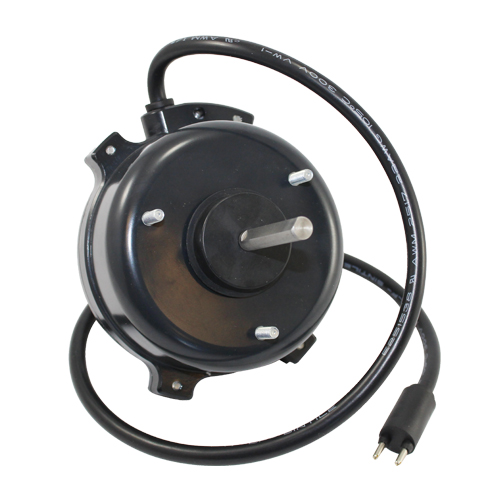

US Motors US Motors EC5407E 1/15 - 1/25 HP 4-Pole TEAO…

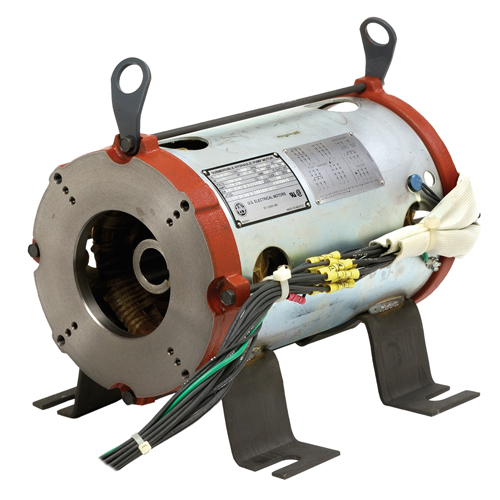

US Motors US Motors E50S1BZ 50 HP 2-Pole 3-Phase 3475 RPM…
US Motors US Motors EMX4121U1 1/4 HP Electric Motor

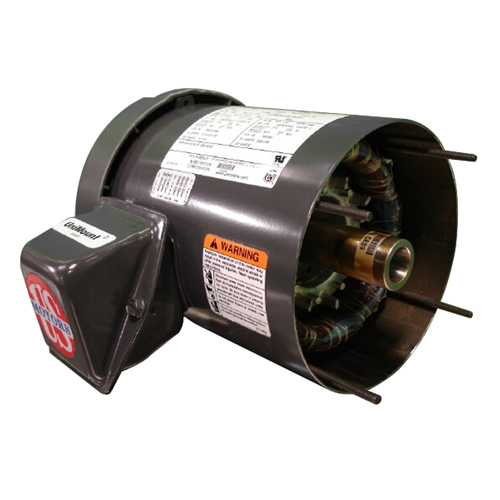

US Motors US Motors E180 .5 HP 4-Pole TE 3-Phase 1740…
