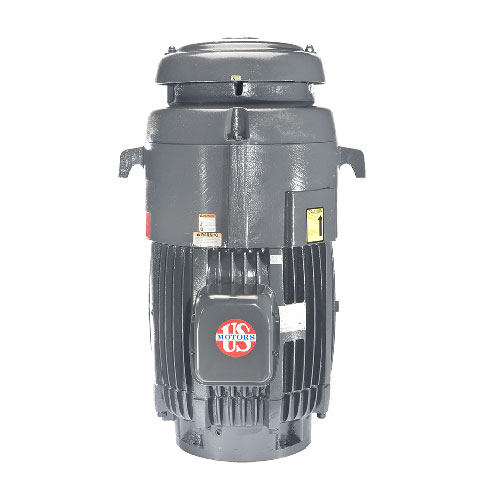

US Motors CHT300V2GLJX 300 HP 4-Pole TEFC 3-Phase 1790 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | NA |
| Breakdown Torque | 280 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 449 |
| Full Load Amps Primary | 259 |
| Hertz | 60 |
| Horsepower | 300 HP |
| Insulation Class | H |
| Kilowatts | 223.7 |
| Kva Code Letter | G |
| Locked Rotor Amps | 1890.6 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 101 |
| Motor Enclosure | TEFC |
| Motor Type | JUCEI |
| Mounting | VERT |
| Nema Nominal Efficiency | 96.2 |
| Number Speeds | 1 |
| Opposite End Bearing | 7226 BCBM |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Rotation | DUAL |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 300 |
| Shaft Code | TP |
| Shaft End Bearing | 6219-J/C3 |
| Shipping Weight | 3900 |
| Speed | 1790 RPM |
| Startcapmfd | N\A |
| Volts | 575 |
| Volts Primary | 575 |
