US Motors CHT10V1GLE 10 HP 2-Pole TEFC 3-Phase 3527 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | NA |
| Breakdown Torque | 277 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 215 |
| Full Load Amps Primary | 9.3 |
| Hertz | 60 |
| Horsepower | 10 HP |
| Insulation Class | H |
| Kilowatts | 7.5 |
| Kva Code Letter | H |
| Locked Rotor Amps | 70 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 218 |
| Motor Enclosure | TEFC |
| Motor Type | TUCI |
| Mounting | VERT |
| Nema Nominal Efficiency | 90.2 |
| Number Speeds | 1 |
| Opposite End Bearing | 6208-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 2 |
| Rotation | DUAL |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 10.7 |
| Shaft Code | TP |
| Shaft End Bearing | 7309 BEP |
| Shipping Weight | 230 |
| Speed | 3527 RPM |
| Startcapmfd | N\A |
| Volts | 575 |
| Volts Primary | 575 |
Frequently Asked Questions
How do I get pricing for CHT10V1GLE?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the CHT10V1GLE?
CHT10V1GLE is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of CHT10V1GLE?
Key specifications include Ambient: 40; Assembly Position: NA; Breakdown Torque: 277; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can CHT10V1GLE ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products
US Motors US Motors CHT15V2GLE 15 HP 4-Pole TEFC 3-Phase 1775…
US Motors US Motors CD75P3FB 75 HP 6-Pole TEFC-IP55 3-Phase 1190…

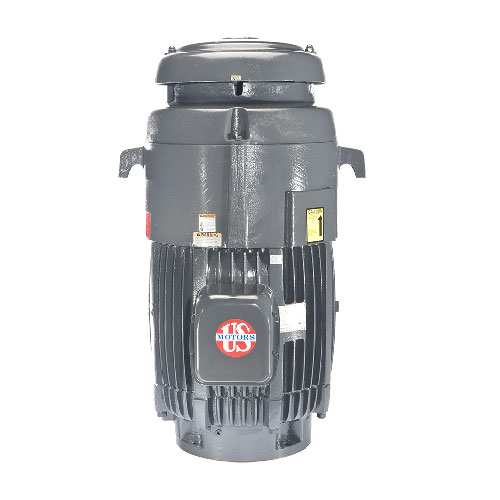

US Motors US Motors CHT20V2GLE 20 HP 4-Pole TEFC 3-Phase 1770…

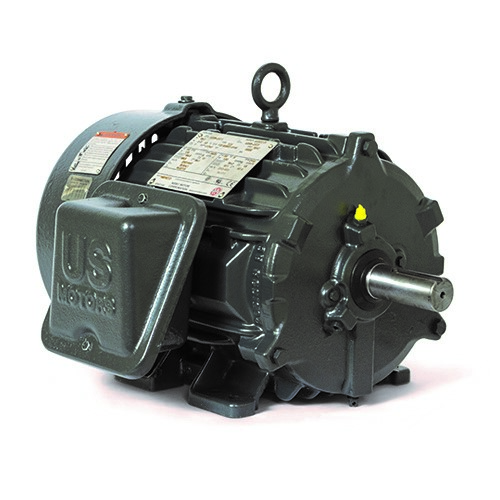

US Motors US Motors CD75P2G 75 HP 4-Pole TEFC 3-Phase 1785…
