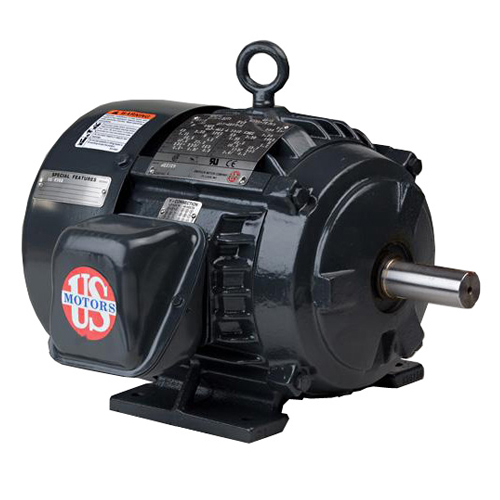

US Motors 8D2P2G 2 HP 4-Pole TEFC-IP55 3-Phase 1745 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Assembly Position | F1 |
| Breakdown Torque | 418 |
| Breakdown Torque Uom | PERCENT OF FLT |
| Frme | 145 |
| Full Load Amps Primary | 2.1 |
| Hertz | 60 |
| Horsepower | 2 HP |
| Insulation Class | F |
| Kilowatts | 1.5 |
| Kva Code Letter | L |
| Locked Rotor Amps | 19.4 |
| Locked Rotor Torque Uom | PERCENT OF FLT |
| Locked-Rotor Torque | 358 |
| Motor Enclosure | TEFC-IP55 |
| Motor Type | CE |
| Mounting | HORZ-FOOTED |
| Nema Nominal Efficiency | 86.5 |
| Number Speeds | 1 |
| Opposite End Bearing | 6205-J/C3 |
| Phasetype | 3_PHASE |
| Poles | 4 |
| Rotation | DUAL |
| Service Factor | 1.15 |
| Service Factor Amps Primary | 2.4 |
| Shaft Code | T |
| Shaft End Bearing | 6205-J/C3 |
| Shipping Weight | 70 |
| Speed | 1745 RPM |
| Startcapmfd | N\A |
| Volts | 575 |
| Volts Primary | 575 |
Frequently Asked Questions
How do I get pricing for 8D2P2G?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 8D2P2G?
8D2P2G is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 8D2P2G?
Key specifications include Ambient: 40; Assembly Position: F1; Breakdown Torque: 418; Breakdown Torque Uom: PERCENT OF FLT. The full specification table on this page lists every published attribute for this part.
How quickly can 8D2P2G ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
