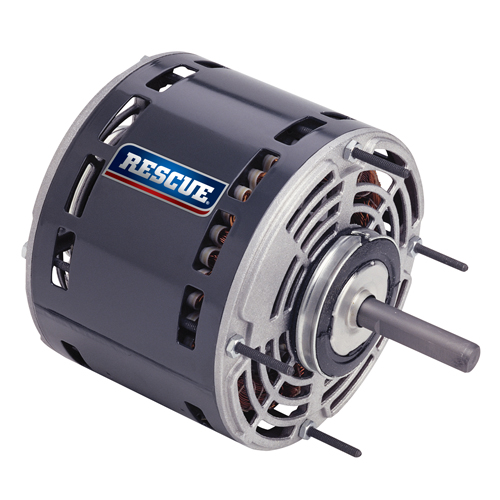

US Motors 5469 .333 HP 8-Pole OPAO 1-Phase 825 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 48.12 |
| Breakdown Torque Uom | OZFT |
| Full Load Amps Primary | 2.4 |
| Hertz | 60 |
| Horsepower | .333 HP |
| Horsepower 2 | 0.111 |
| Insulation Class | B |
| Kilowatts | 0.3 |
| Locked Rotor Amps | 4.22 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 10.59 |
| Motor Enclosure | OPAO |
| Motor Type | FHP |
| Number Speeds | 4 |
| Opposite End Bearing | SAB |
| Phasetype | 1_PERMANENT SPLIT CA |
| Poles | 8 |
| Rotation | CCW LEAD END REV |
| Runcapmfd | 7.5 |
| Runcapvolts | 370 |
| Service Factor | 1 |
| Service Factor Amps Primary | 2.4 |
| Shaft Code | Y |
| Shaft End Bearing | SAB |
| Shipping Weight | 17 |
| Speed | 825 RPM |
| Stack | 2.25 |
| Stator Diameter | 5.5 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 208 |
| Volts 2 | 230 |
| Volts Primary | 208-230 V |
Frequently Asked Questions
How do I get pricing for 5469?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 5469?
5469 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 5469?
Key specifications include Ambient: 40; Breakdown Torque: 48.12; Breakdown Torque Uom: OZFT; Full Load Amps Primary: 2.4. The full specification table on this page lists every published attribute for this part.
How quickly can 5469 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

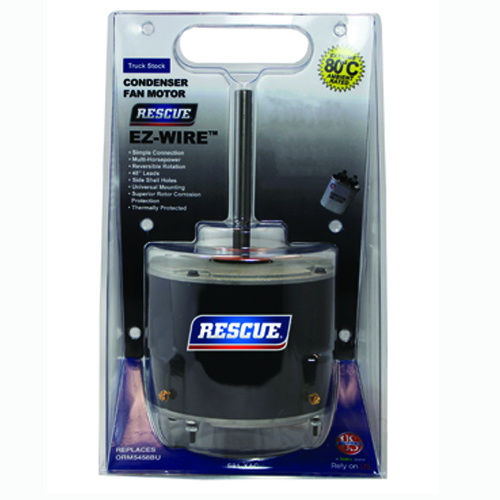

US Motors US Motors 5431 .25 HP 8-Pole TEAO 1-Phase 825…

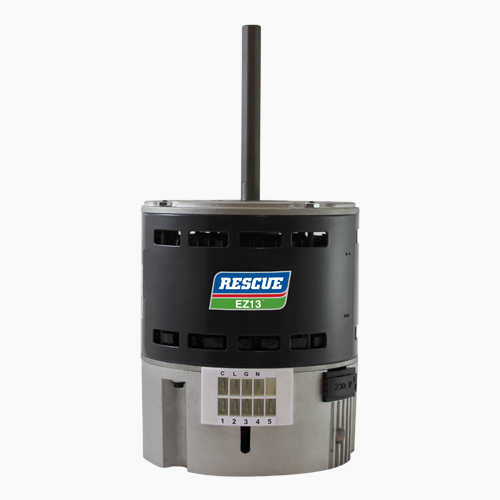

US Motors US Motors 56207S .75 HP 10-Pole OPAO 1-Phase 1050…

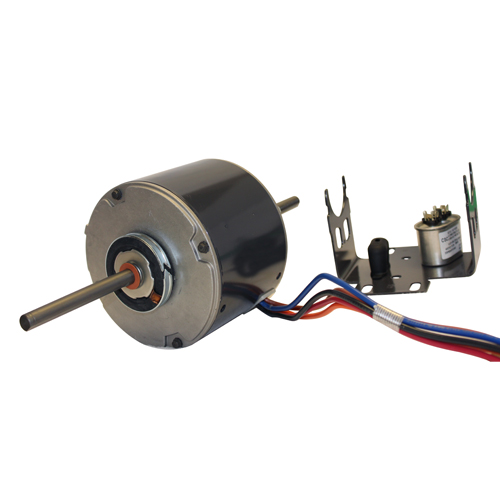

US Motors US Motors 5108 .33 HP 6-Pole TENV 1-Phase 1100…
US Motors US Motors 5825 .167 HP 6-Pole OPAO 1-Phase 1075…

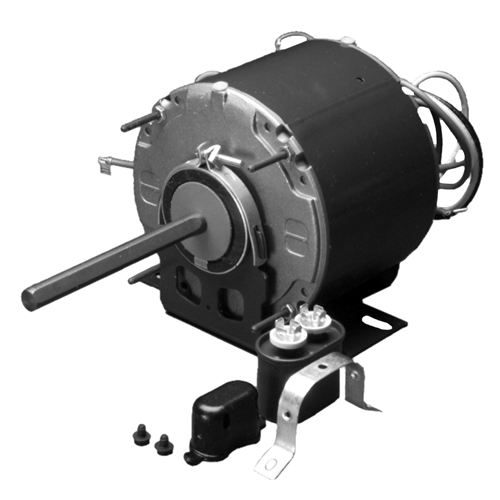

US Motors US Motors 4811 .33 HP 4-Pole ODP 1-Phase 1625…
