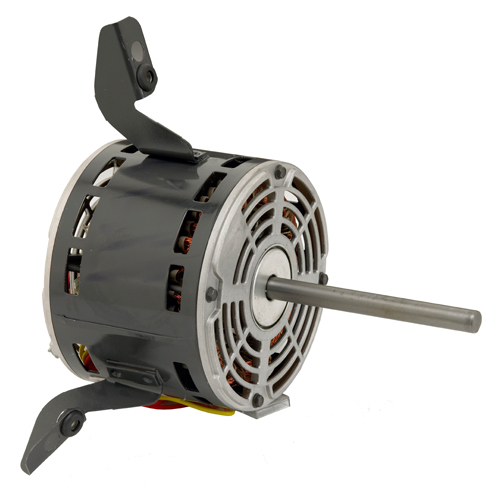

US Motors 3787 .5 HP 6-Pole OAO 1-Phase 1075 RPM Electric Motor
| Ambient | 40 |
|---|---|
| Breakdown Torque | 76.78 |
| Breakdown Torque Uom | OZFT |
| Frme | 48 |
| Full Load Amps Primary | 7.4 |
| Hertz | 60 |
| Horsepower | .5 HP |
| Insulation Class | B |
| Kilowatts | 0.4 |
| Locked Rotor Amps | 20.12 |
| Locked Rotor Torque Uom | OZFT |
| Locked-Rotor Torque | 9.943 |
| Motor Enclosure | OAO |
| Motor Type | FHP |
| Mounting | BRACKET |
| Number Speeds | 3 |
| Opposite End Bearing | SELF-ALIGN |
| Phasetype | 1_PERMANENT SPLIT CA |
| Poles | 6 |
| Rotation | REVERSIBLE |
| Runcapmfd | 10 |
| Runcapvolts | 370 |
| Service Factor | 1 |
| Shaft Code | Y |
| Shaft End Bearing | SELF-ALIGN |
| Shipping Weight | 18 |
| Speed | 1075 RPM |
| Stack | 2.5 |
| Stator Diameter | 5.5 |
| Thermal protection | AUTOMATIC RESET |
| Volts | 115 |
| Volts Primary | 115 V |
Frequently Asked Questions
How do I get pricing for 3787?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 3787?
3787 is a US Motors part. KKM Solutions sources US Motors components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 3787?
Key specifications include Ambient: 40; Breakdown Torque: 76.78; Breakdown Torque Uom: OZFT; Frme: 48. The full specification table on this page lists every published attribute for this part.
How quickly can 3787 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

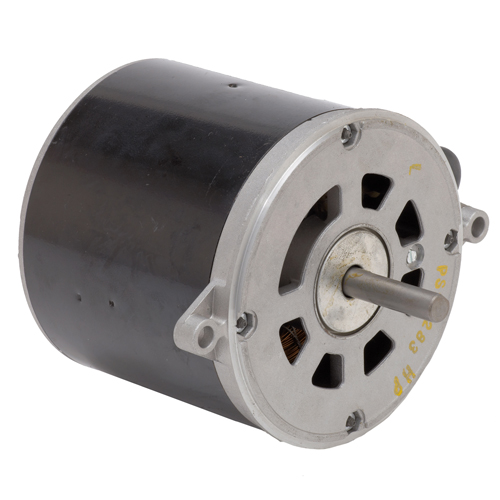

US Motors US Motors 3580 .33 HP 4-Pole TENV 1-Phase 1725…

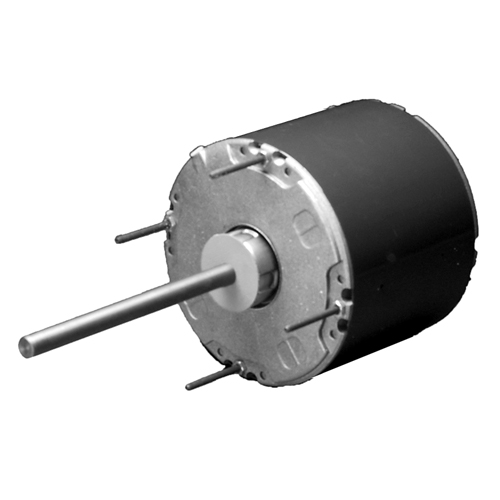

US Motors US Motors 3851 .25 HP 6-Pole OPEN 1-Phase 1075…

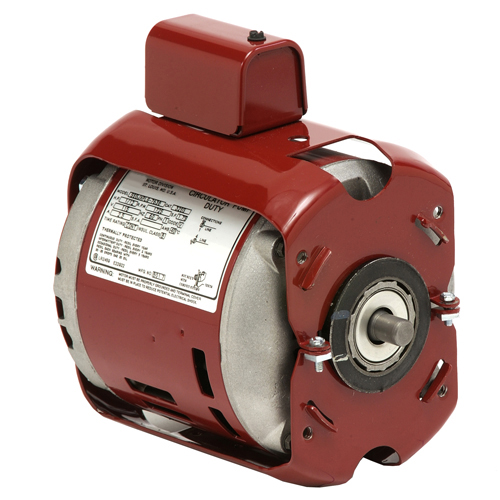

US Motors US Motors 3260 .33 HP 4-Pole OPDP 1-Phase 1725…

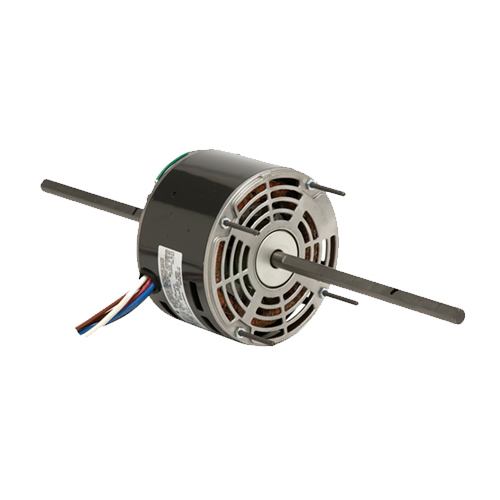

US Motors US Motors 3136 .5 HP 6-Pole ODP 1-Phase 1075…

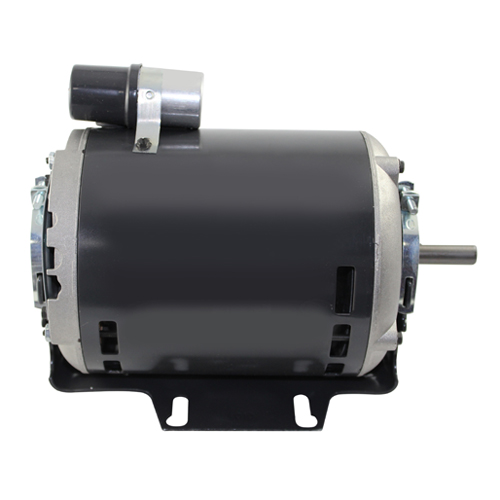

US Motors US Motors 4153 .25 HP 6-Pole ODP 1-Phase 1015…
