Turck TTM-206A-CF-LIUPN-H1140-L100/S713
Miniature design | Factory setting 0…150 °C | Parameterizable via IO-Link | Analog output 4…20 mA (2-wire) | Switching output | Compression fitting process connection | Bendable probe (min. bending radius: 3x outer diameter; excluding 30-mm probe tip)
| Ambient temperature | -40…+80 °C |
|---|---|
| Approvals | CE |
| Communication Protocol | IO-Link |
| Country of origin | IT |
| Current output | 4…20 mA |
| Design | Without display (integrated probe) |
| Detection type | medium contact |
| EAN | 4047101267358 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Current output (2-wire), Switching output |
| Housing material | Stainless-steel/Plastic, 1.4404 (AISI 316L) |
| Immersion depth L | 100 mm |
| Measuring element | Pt100 |
| Measuring range | -50…350 °C |
| Operating voltage | 8…32 VDC |
| Process Connection | For compression fittings, thermowell or direct mounting |
| Protection class | IP67 |
| Weight | 1 g |
Frequently Asked Questions
How do I get pricing for 9910625?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9910625?
9910625 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9910625?
Key specifications include Ambient temperature: -40…+80 °C; Approvals: CE; Communication Protocol: IO-Link; Country of origin: IT. The full specification table on this page lists every published attribute for this part.
How quickly can 9910625 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

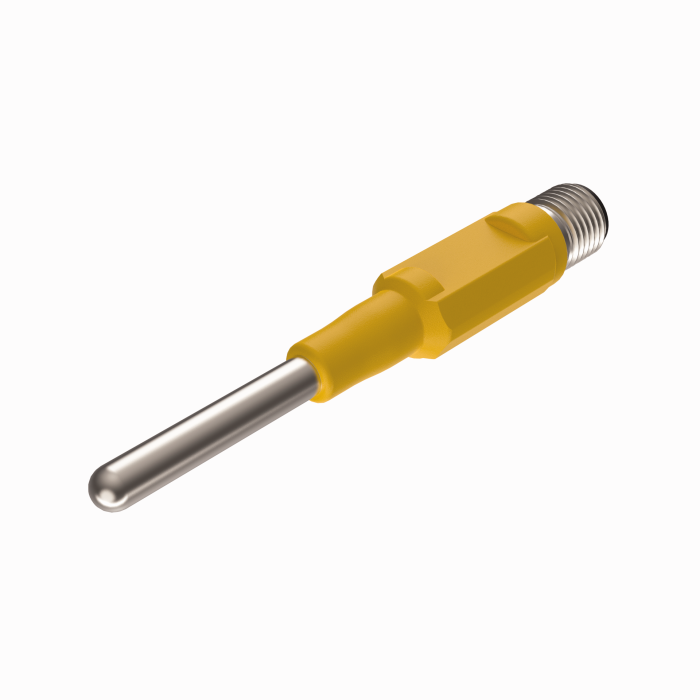

Turck Turck TTM-206A-CF-LIUPN-H1140-L100
Turck Turck TTM-206A-CF-LIUPN-H1140-L150

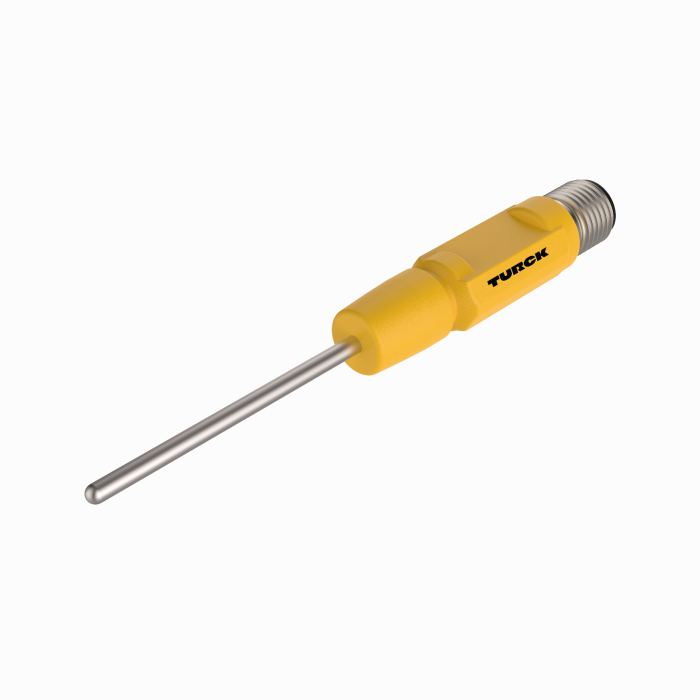

Turck Turck TTM-203A-CF-LIUPN-H1140-L150
Turck Turck TTM-206A-CF-LIUPN-H1140-L150/S713

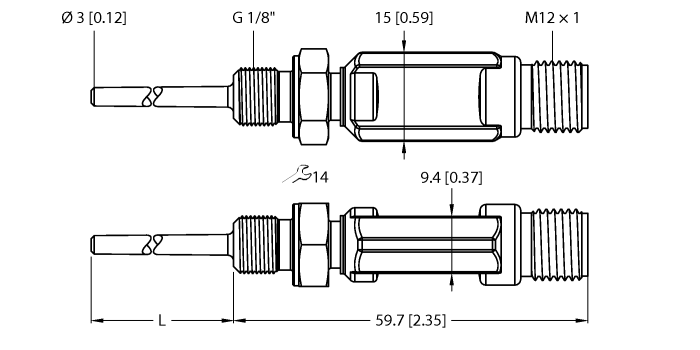

Turck Turck TTM-103A-G1/8-LIUPN-H1140-L013
