Turck TP-103A-G1/8-H1141-L013
Measuring element: Pt 100 temperature sensor, DIN EN 60 751, Class A | Max. temperature connector: 120°C | Connection mode: 4-wire connection | Process connection G1/8" male thread | Electrical connection rotatable by 360°
| Ambient temperature | -40…+120 °C |
|---|---|
| Approvals | cULus |
| Country of origin | DE |
| Design | Temperature probe |
| Detection type | medium contact |
| EAN | 4047101544541 |
| Electrical connection | Connector, M12 × 1 |
| Electrical output | Resistance |
| Housing material | Stainless steel, 1.4404 (AISI 316L) |
| Immersion depth L | 13 mm |
| Measuring element | Pt100 |
| Measuring range | -50…120 °C |
| Process Connection | G 1/8'' male thread |
| Protection class | IP67 |
| Weight | 23 g |
Frequently Asked Questions
How do I get pricing for 9910400?
KKM Solutions is a quote-based industrial supplier, so prices are not listed online. Send the quote form on this page with your quantity, or email orderdesk@kkmsolutions.com, and our order desk will reply with pricing and availability within 1 business day.
Who manufactures the 9910400?
9910400 is a Turck part. KKM Solutions sources Turck components to the exact manufacturer specification and cross-checks every order against manufacturer part data before it ships.
What are the key specifications of 9910400?
Key specifications include Ambient temperature: -40…+120 °C; Approvals: cULus; Country of origin: DE; Design: Temperature probe. The full specification table on this page lists every published attribute for this part.
How quickly can 9910400 ship?
In-stock items are dispatched the same business day for orders placed by 3 PM; sourced and quoted items ship per the quoted lead time. KKM Solutions ships worldwide — to your site, warehouse, or freight forwarder.
Related Products

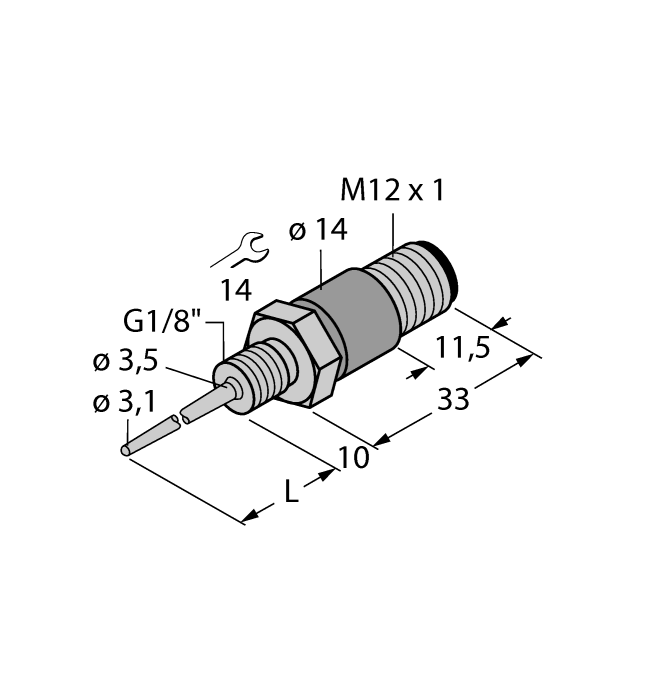

Turck Turck TP-103A-G1/8-H1141-L024
Turck Turck TP-203A-CF-H1141-L100
Turck Turck TP-203A-CF-H1141-L150

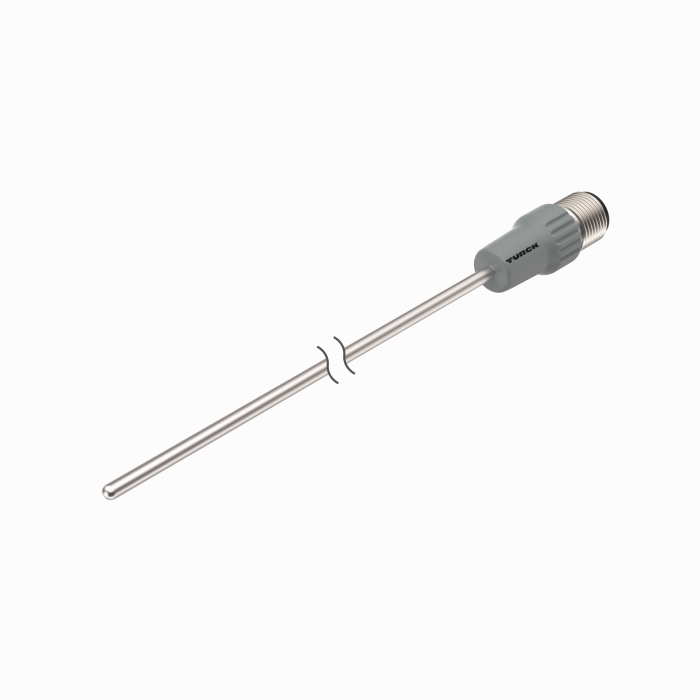

Turck Turck TP-203A-CF-H1141-L250

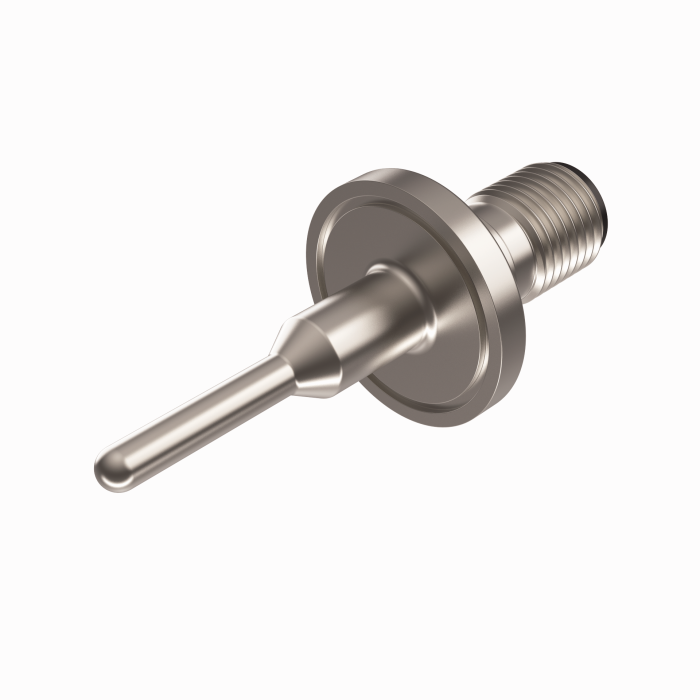

Turck Turck TP-504A-TRI3/4-H1141-L035
